Section 23 (Body - Interior & Exterior): DECKLID/Hatch/Liftgate/Tailgate: Latch: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

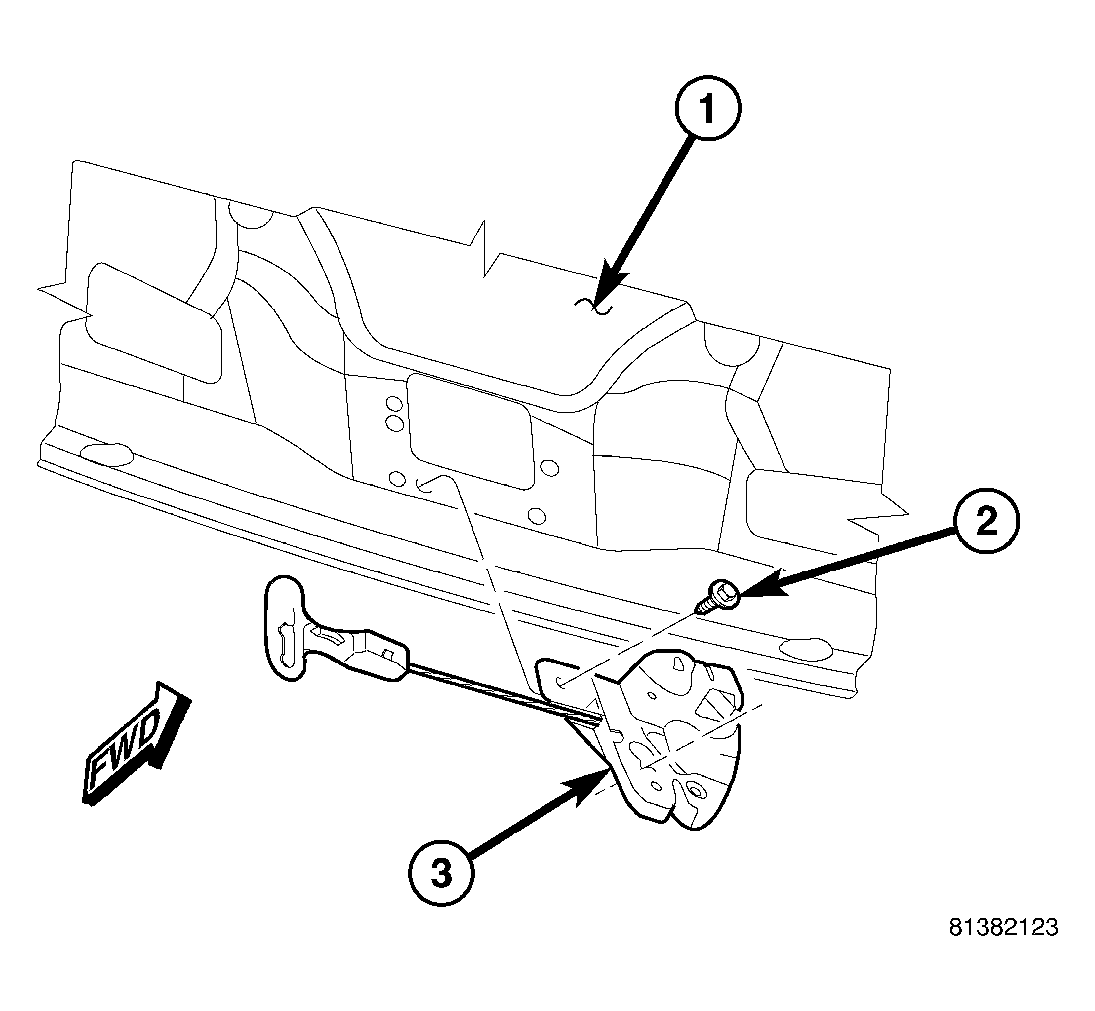

Fig 1: Latch
GC0013357Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the latch (3) to the inside of the deck lid (1).
  2. Install and tighten the two screws (2) that secure the latch to the inside of the deck lid. Tighten the screws to 8 N.m (71 in. lbs.).
    Fig 2: Deck Lid
    GC0013354Courtesy of DAIMLERCHRYSLER CORP.
  3. Reconnect the connector (2) of the body wire harness take out for the deck lid (1) to the latch connector receptacle (3).
  4. Reinstall the cover over the latch on the inside of the deck lid. (Refer to BODY/DECKLID/COVER - DECKLID LATCH - INSTALLATION) .
  5. Reconnect the battery negative cable.
  6. Close the deck lid.
