Section 17 (5.7L Engine (Service Information)): Crankshaft: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

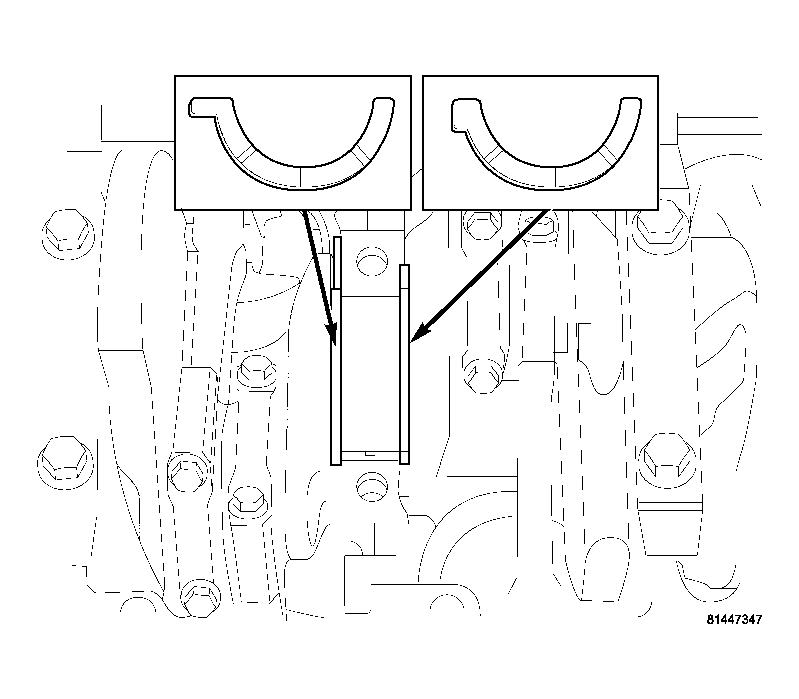

Fig 1: Identifying Thrust Washer Locations
GC0003974Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Remove/Install Thrust Washer
GC0003978Courtesy of DAIMLERCHRYSLER CORP.
  1. Select the proper main bearings (Refer to ENGINE/ENGINE BLOCK/CRANKSHAFT MAIN BEARINGS - STANDARD PROCEDURE) .
  2. Install main bearings in block and caps, and lubricate bearings.
  3. Position the crankshaft into the cylinder block.
  4. Install the thrust washers (1).
    Fig 3: Main Bearing Cap Removal
    GC0003972Courtesy of DAIMLERCHRYSLER CORP.
    1 - MAIN CAP

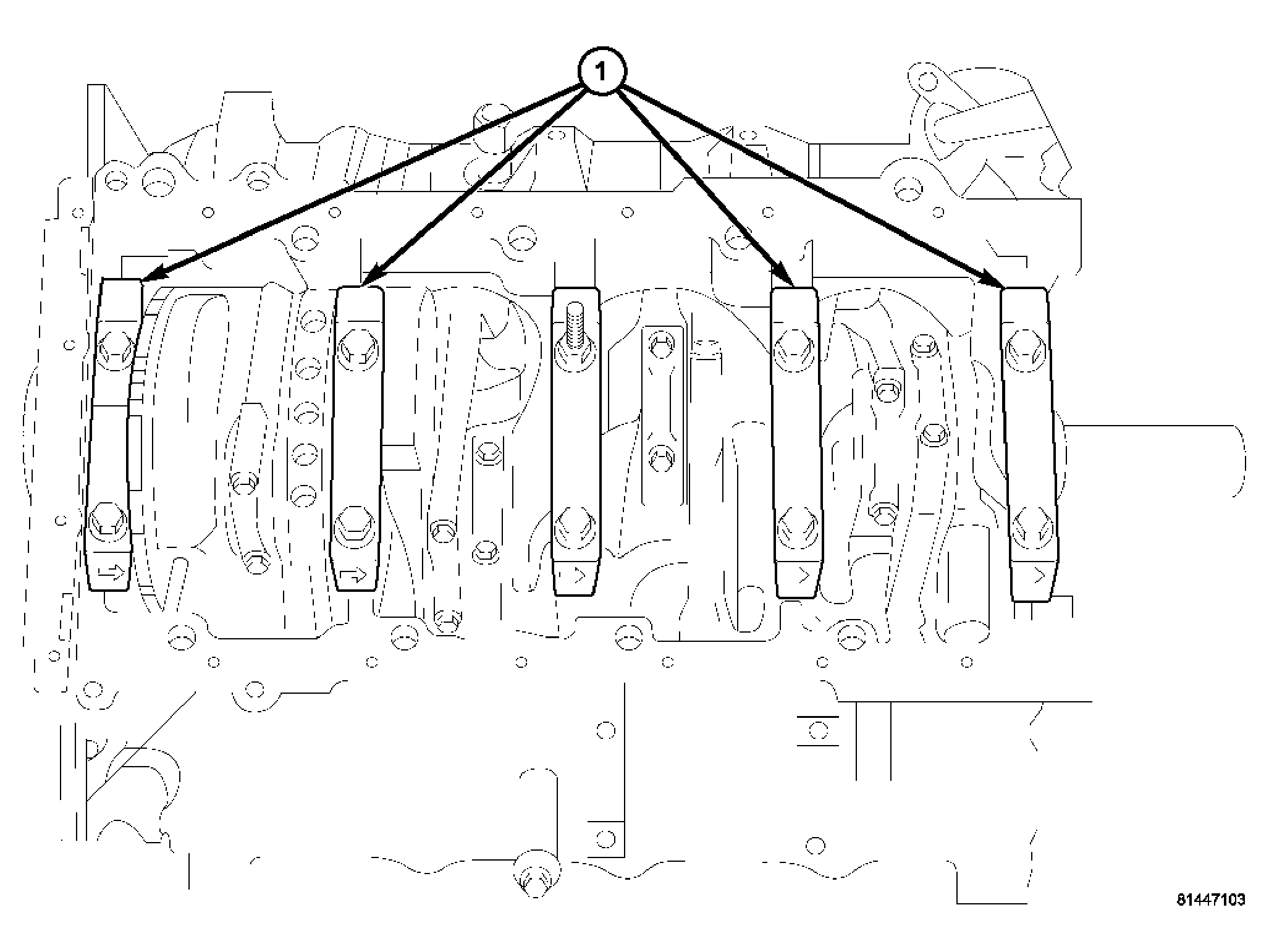

    Fig 4: Main Bearing Caps
    GC0003973Courtesy of DAIMLERCHRYSLER CORP.
    1 - MAIN BEARING CAPS
    NOTE: The main cap crossbolts are torqued after final torque of the main cap bolts. Always use a new washer/seal on crossbolts.
  5. Clean and oil all cap bolts. Install all main bearing caps (1). Install all cap bolts and alternately tighten in two steps using the following sequence.

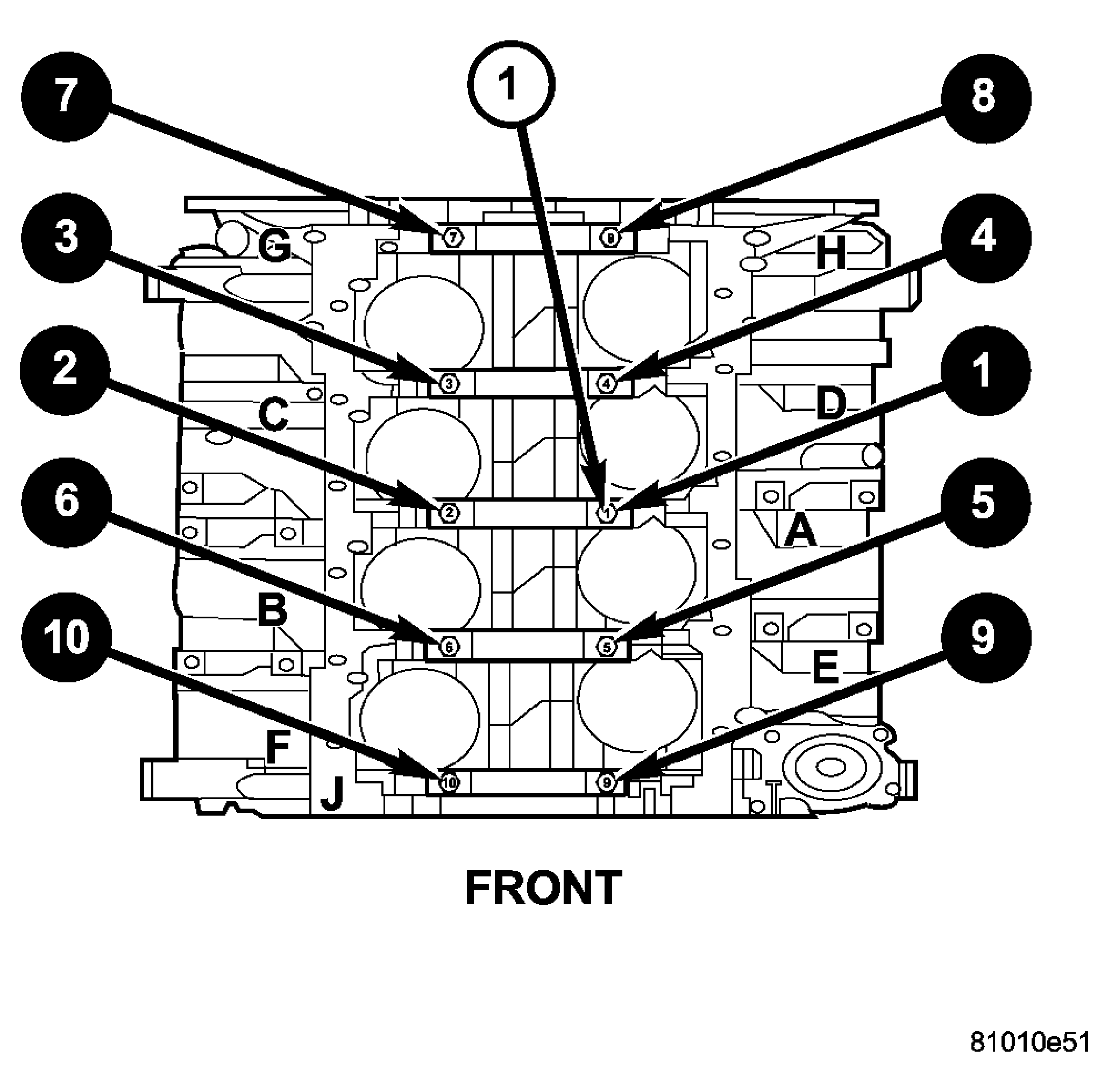

    Fig 5: Main Bearing Cap Torque Sequence
    GC0003979Courtesy of DAIMLERCHRYSLER CORP.
  6. * Step 1 - 27 N.m ( 20 ft. lbs.) torque.
  7. * Step 2 - Turn main cap bolts an additional 90°.
  8. Install the crossbolts with new washer/gasket. Starting with crossbolt A torque each crossbolt to 28 N.m ( 21 ft. lbs.)torque.
  9. Repeat crossbolt torque procedure.
  10. Measure crankshaft end play (Refer to ENGINE/ENGINE BLOCK/CRANKSHAFT MAIN BEARINGS - STANDARD PROCEDURE) .

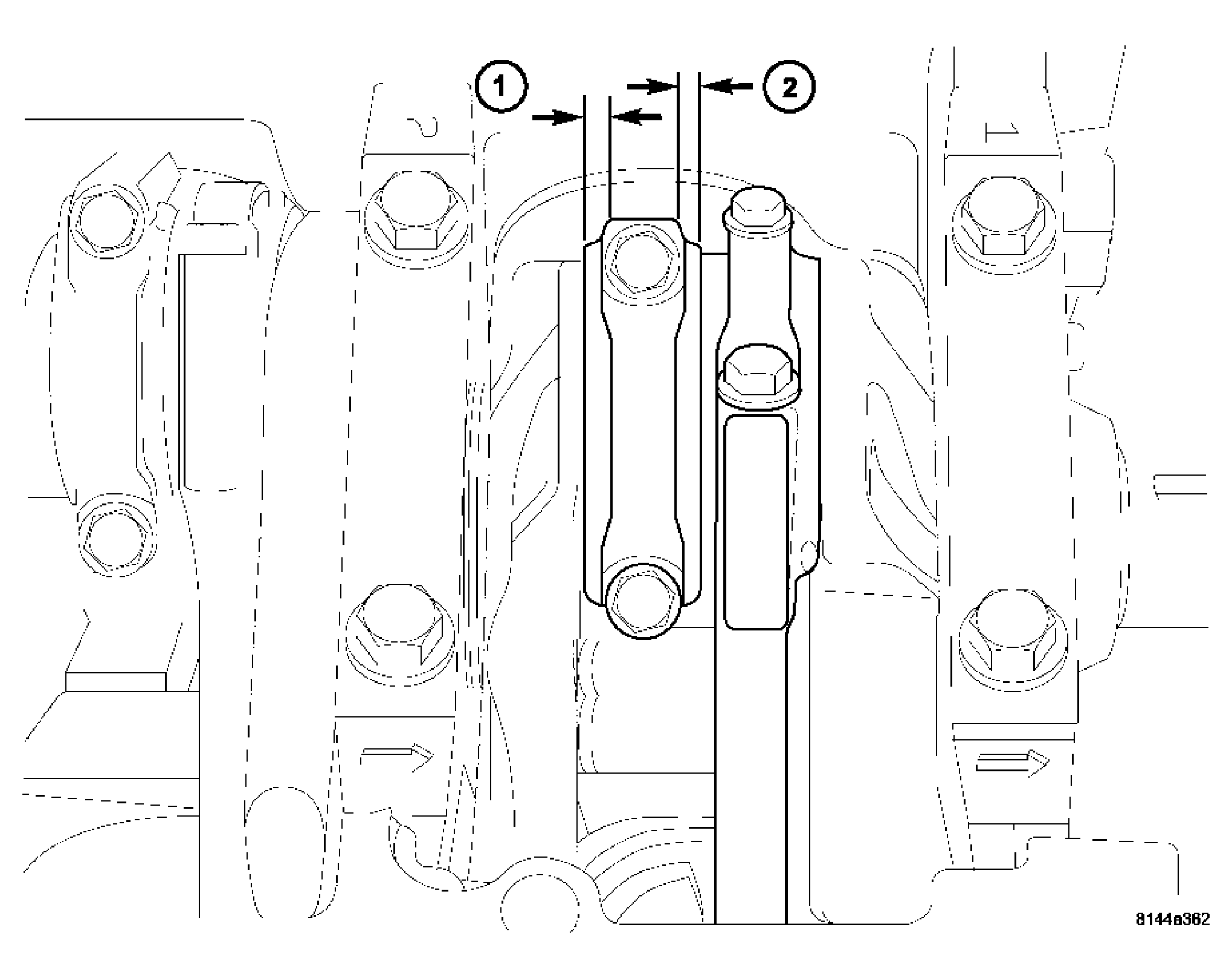

    Fig 6: Remove/Install Connecting Rod Bearing Caps
    GC0003980Courtesy of DAIMLERCHRYSLER CORP.
  11. Position the connecting rods onto the crankshaft and install the rod bearing caps (Refer to ENGINE/ENGINE BLOCK/PISTON & CONNECTING ROD - INSTALLATION) .

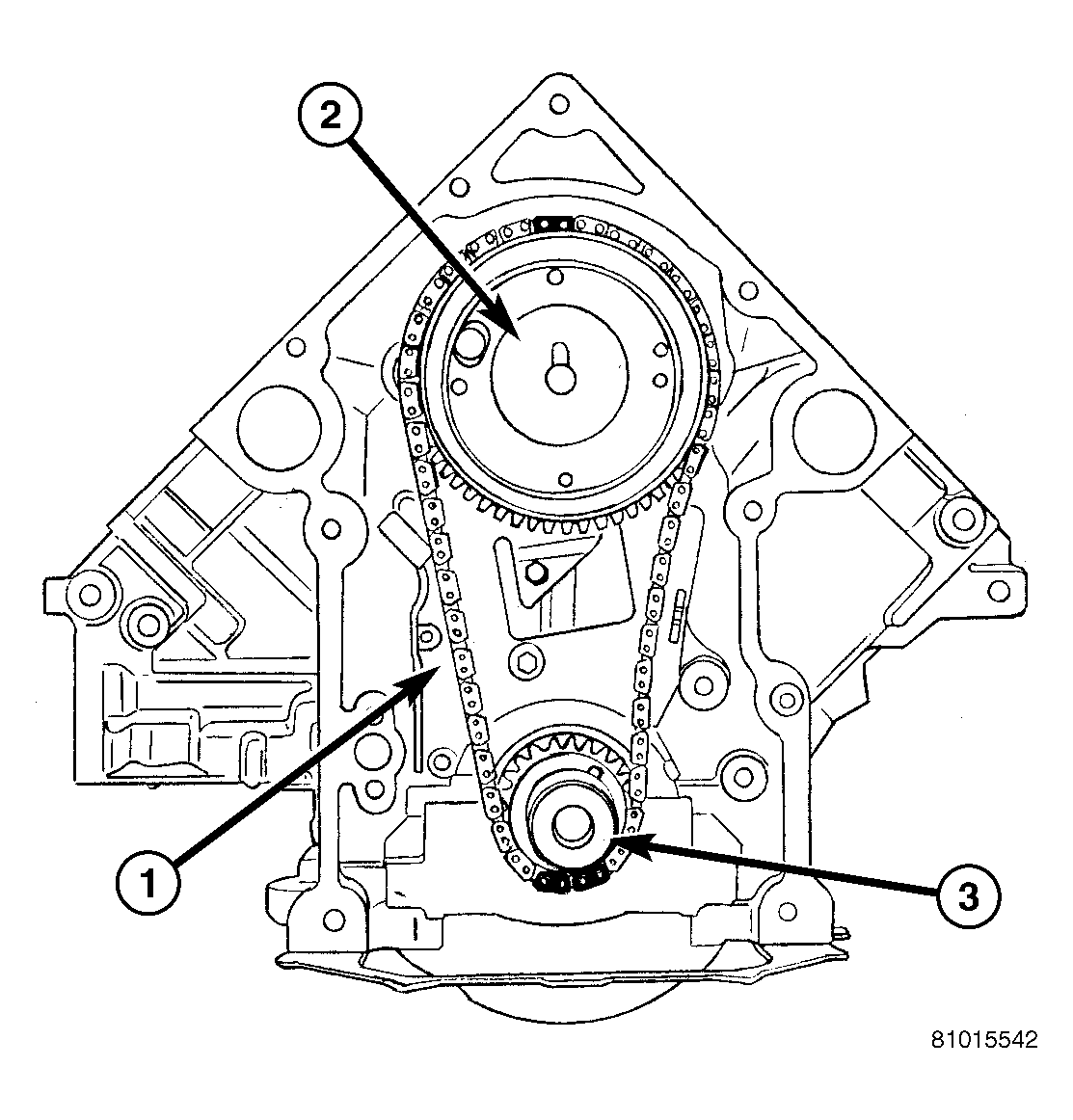

    Fig 7: Timing Mark Alignment
    GC0003977Courtesy of DAIMLERCHRYSLER CORP.
    1 - Chain Tensioner
    2 - Camshaft Sprocket
    3 - Crankshaft Sprocket
  12. Install timing drive (2) (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION) .
    Fig 8: Remove/Install Oil Pump
    GC0003966Courtesy of DAIMLERCHRYSLER CORP.
  13. Install oil pump (Refer to ENGINE/LUBRICATION/OIL PUMP - INSTALLATION) .
    Fig 9: Front Cover Slide Bushings
    GC0003967Courtesy of DAIMLERCHRYSLER CORP.
  14. Install the timing chain cover (1) (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - INSTALLATION ).
    Fig 10: Rear Seal Retainer Torque Sequence
    GC0003976Courtesy of DAIMLERCHRYSLER CORP.
  15. Install the rear main seal and retainer (Refer to ENGINE/ENGINE BLOCK/CRANKSHAFT REAR OIL SEAL RETAINER - INSTALLATION) .
  16. Install the windage tray/oil pan gasket.
  17. Install the oil pick up tube.
  18. Install the oil pan (Refer to ENGINE/LUBRICATION/OIL PAN - INSTALLATION) .
  19. Install the vibration damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLATION) .
  20. Install the engine (Refer to ENGINE - INSTALLATION) .
