Pump-Engine Oil: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

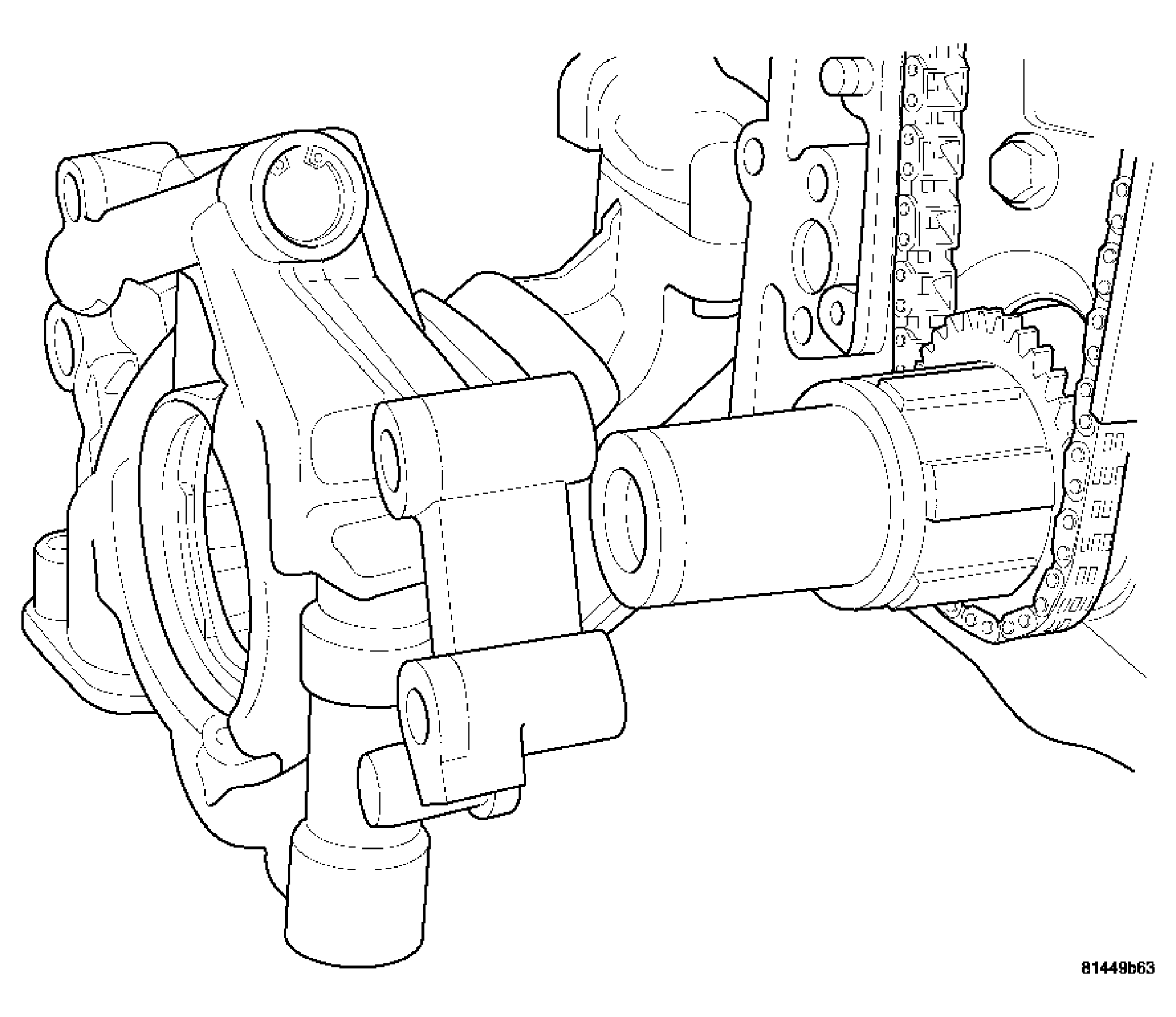

Fig 1: Remove/Install Oil Pump
GC0003966Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the oil pump onto the crankshaft and install the 4 oil pump retaining bolts.
  2. Tighten the oil pump retaining bolts to 28 N.m (250 in. lbs.).
  3. Install the timing chain cover (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - INSTALLATION ).
  4. Install the pick-up tube and oil pan (Refer to ENGINE/LUBRICATION/OIL PAN - INSTALLATION) .
