Pump - Oil: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

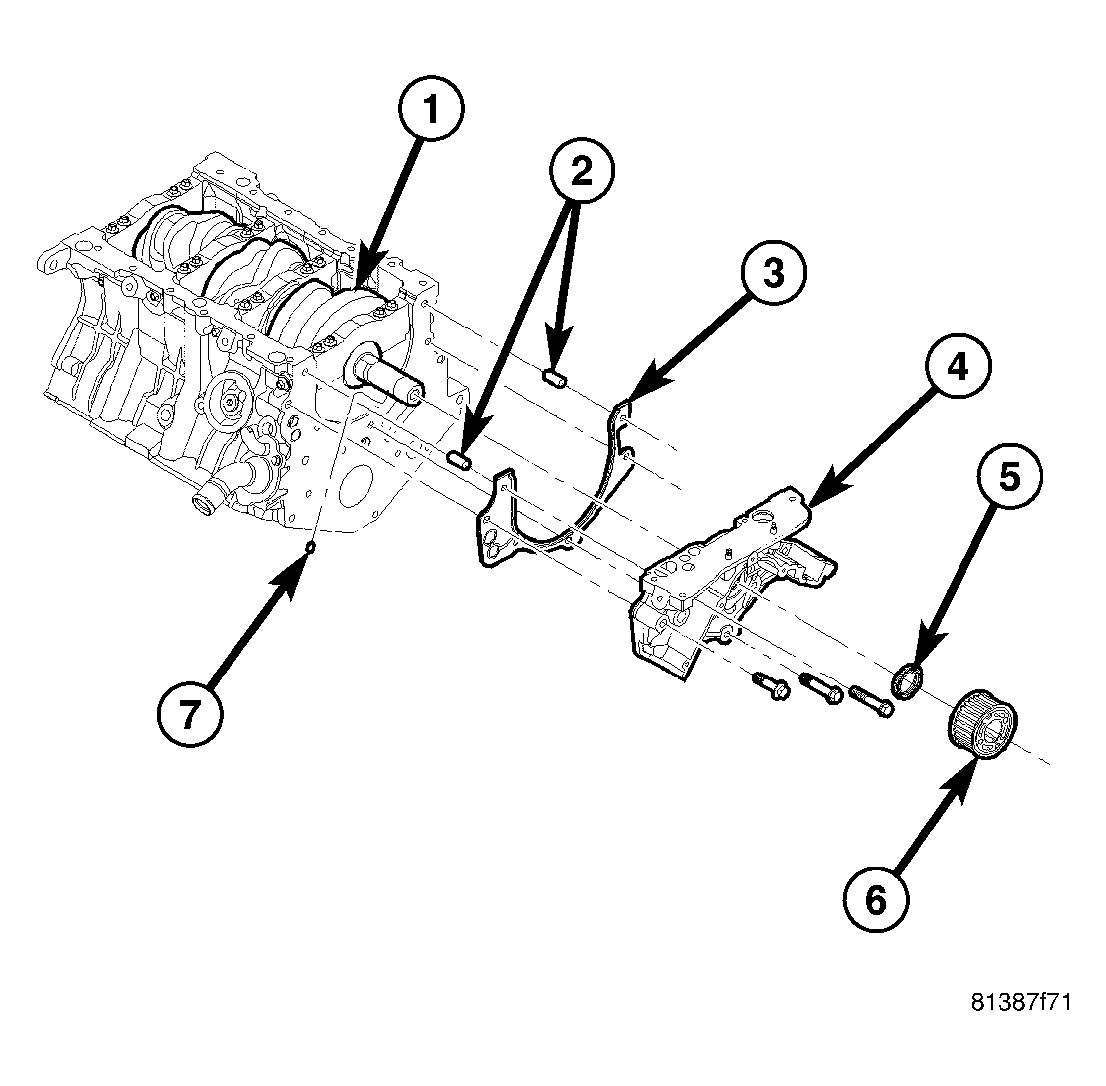

Fig 1: Oil Pump and Crankshaft Gear

Courtesy of DAIMLERCHRYSLER CORP.

1 - CRANKSHAFT

2 - DOWEL

3 - GASKET

4 - OIL PUMP

5 - FRONT CRANKSHAFT SEAL

6 - CRANKSHAFT GEAR

7 - PIN

Prime oil pump (4) before installation by filling rotor cavity with clean engine oil.

Install oil pump (4) and gasket (3) carefully over the crankshaft. Position pump onto block and tighten bolts to 28 N.m (250 in. lbs.).

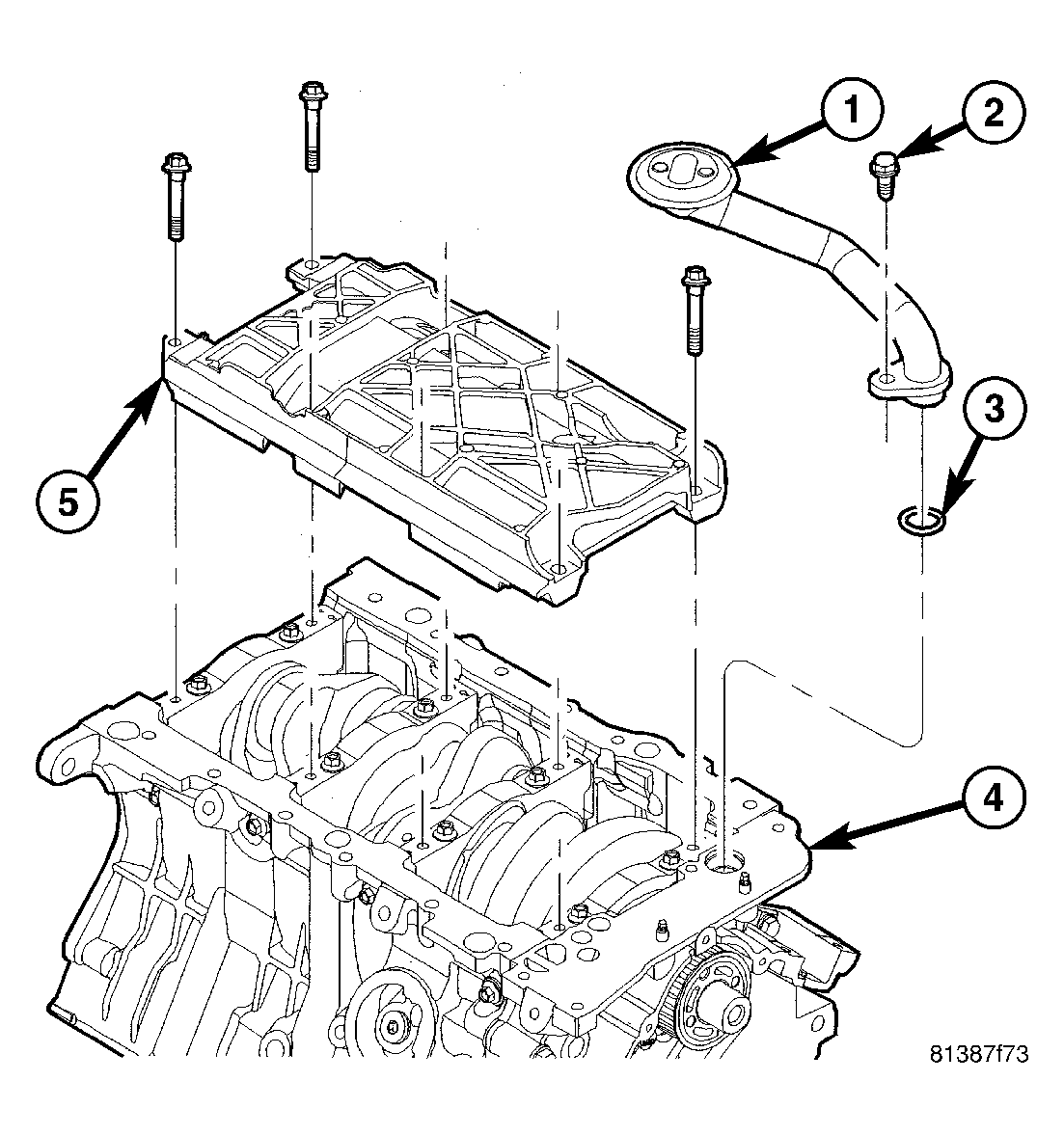

Fig 2: Windage Tray and Oil Pick up Tube

Courtesy of DAIMLERCHRYSLER CORP.

1 - OIL PICK UP TUBE WITH STRAINER

2 - BOLT

3 - O-RING

4 - OIL PUMP

5 - WINDAGE TRAY

Install new O-ring (3) on oil pickup tube (1).
Install oil pickup tube (1).
Install oil pan. (Refer to ENGINE/LUBRICATION/OIL PAN - INSTALLATION) .
Install crankshaft sprocket. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION) .
Install timing belt. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION) .

Install the timing belt covers. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN COVER(S) - INSTALLATION)

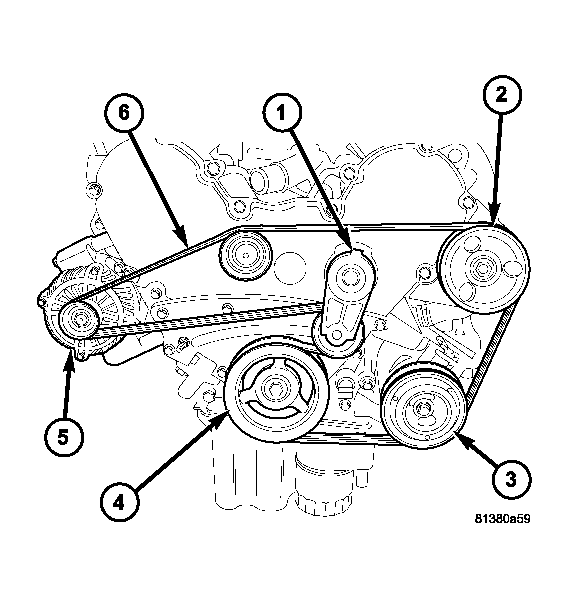

Fig 3: Identifying Serpentine Accessory Drive Belt

Courtesy of DAIMLERCHRYSLER CORP.

1 - DRIVE BELT TENSIONER

2 - POWER STEERING PULLEY

3 - AIR CONDITIONING COMPRESSOR

4 - CRANKSHAFT DAMPER

5 - GENERATOR

6 - DRIVE BELT

Install the crankshaft vibration damper (4). (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLATION) .
Install the accessory drive belt (6). See Fig 3. (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
Fill the cooling system. (Refer to COOLING - STANDARD PROCEDURE) .
Fill engine crankcase with proper oil to the correct level.
