Seal- Crankshaft Front Oil: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

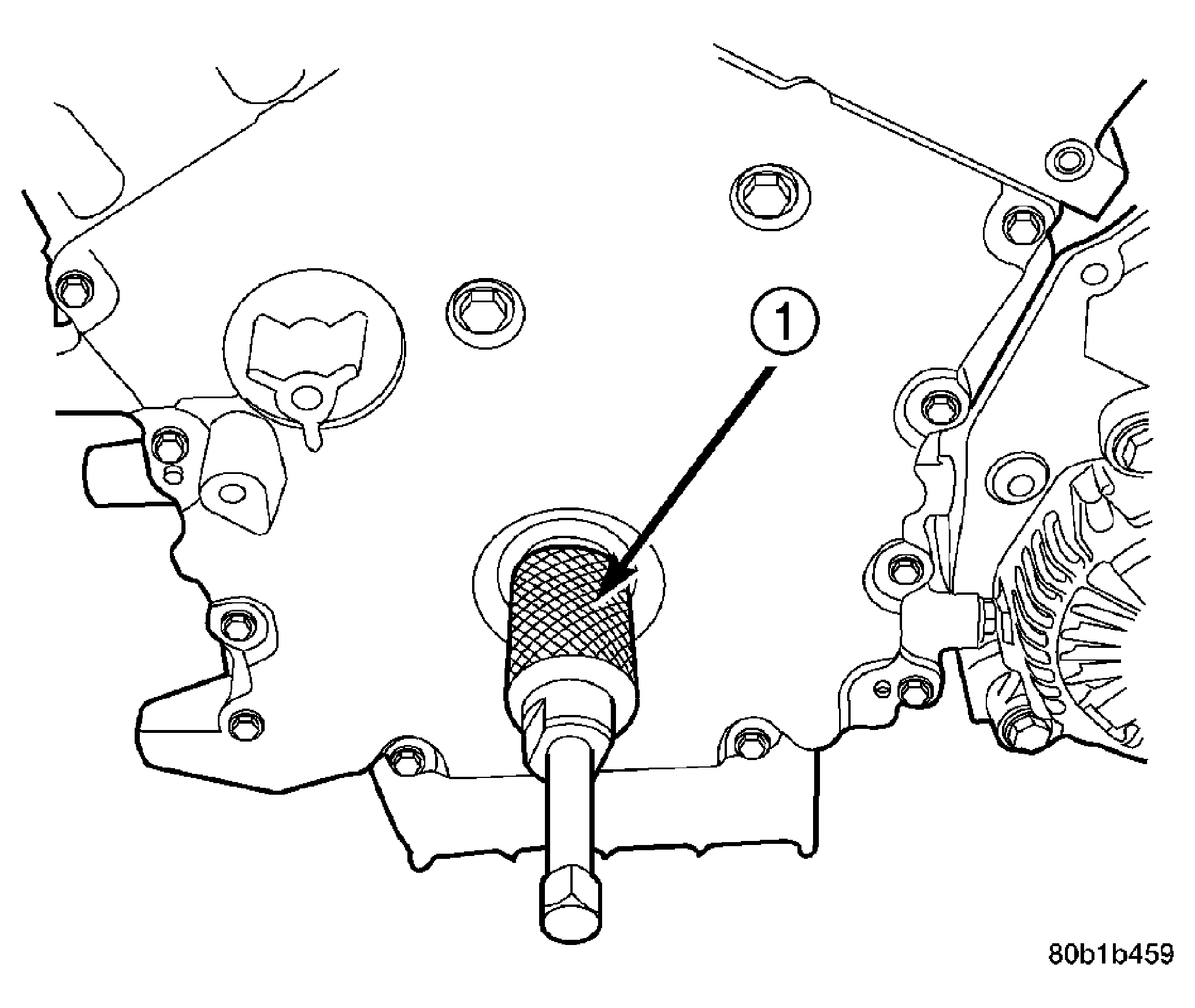

Fig 1: Crankshaft Front Oil Seal - Removal
GC0015326Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove crankshaft vibration damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL) .
  2. Install Special Tool 8194 (1), Insert into crankshaft nose. Remove seal using Special Tool 6771, Remover.
