Seal- Crankshaft Front Oil: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

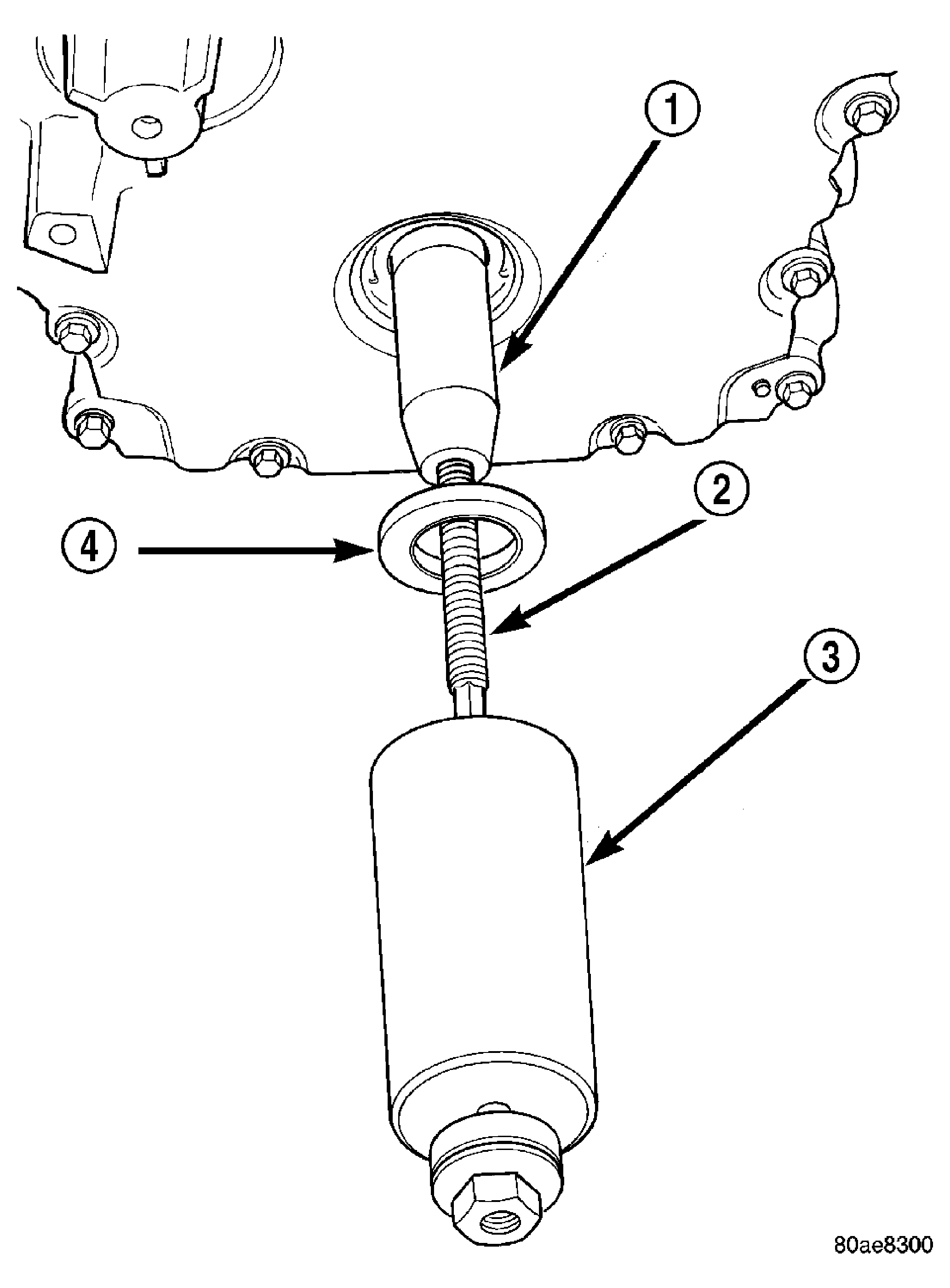

Fig 1: Crankshaft Front Oil Seal - Installation
GC0015327Courtesy of DAIMLERCHRYSLER CORP.
  1. Install new seal (4) using Special Tools 6780-2 Sleeve (1), 6780-1 Installer (3), and 8179 Stud (2).
  2. Install crankshaft vibration damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLATION) .
