Section 15 (2.7L Engine (Service Information)): Mount-Right: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

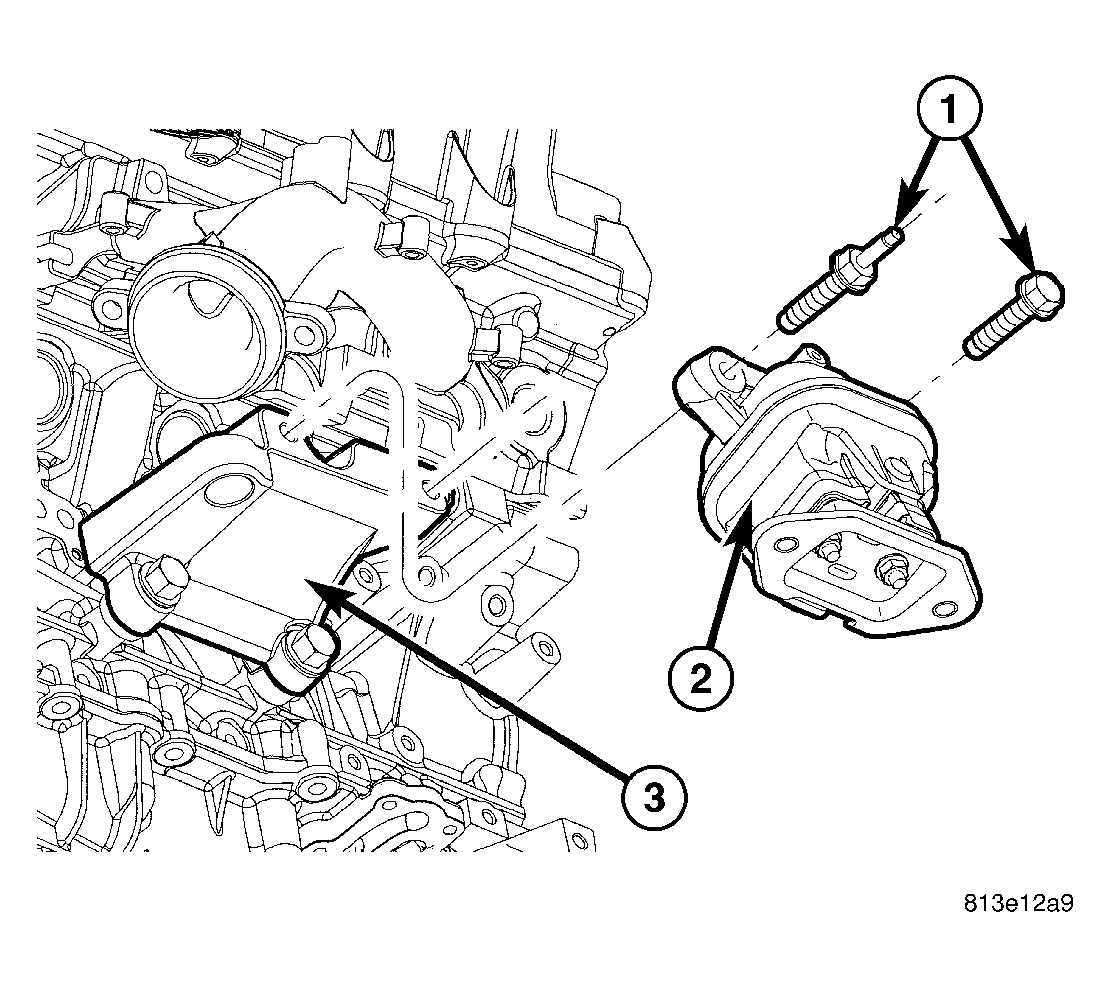

Fig 1: Right Mount
GC0015349Courtesy of DAIMLERCHRYSLER CORP.
  1. Install right engine mount isolator to engine mount adapter bolts (1). Tighten bolts to 75 N.m (55 ft. lbs.).
  2. Lower engine but do not do not let mount contact frame.
    Fig 2: Locating Engine Mount Bolts, Drain Plug And Filter
    GC0015226Courtesy of DAIMLERCHRYSLER CORP.
  3. Install engine mount studs (1) and tighten to 12 N.m (106 in. lbs.).
  4. Lower engine and remove lifting device.
  5. Tighten engine mount isolator nuts (1) to 75 N.m (55 ft. lbs.).
    Fig 3: Lower Splash Shield
    GC0015233Courtesy of DAIMLERCHRYSLER CORP.
  6. Install lower splash shield (2) and tighten retaining bolts (1).
  7. Lower vehicle.
    Fig 4: Air Cleaner Housing
    GC0015232Courtesy of DAIMLERCHRYSLER CORP.
  8. Install air cleaner housing assembly (3) (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) .
    Fig 5: Locating Battery
    GC0015222Courtesy of DAIMLERCHRYSLER CORP.
  9. Connect negative battery (1) cable.
