Housing-Air Cleaner: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

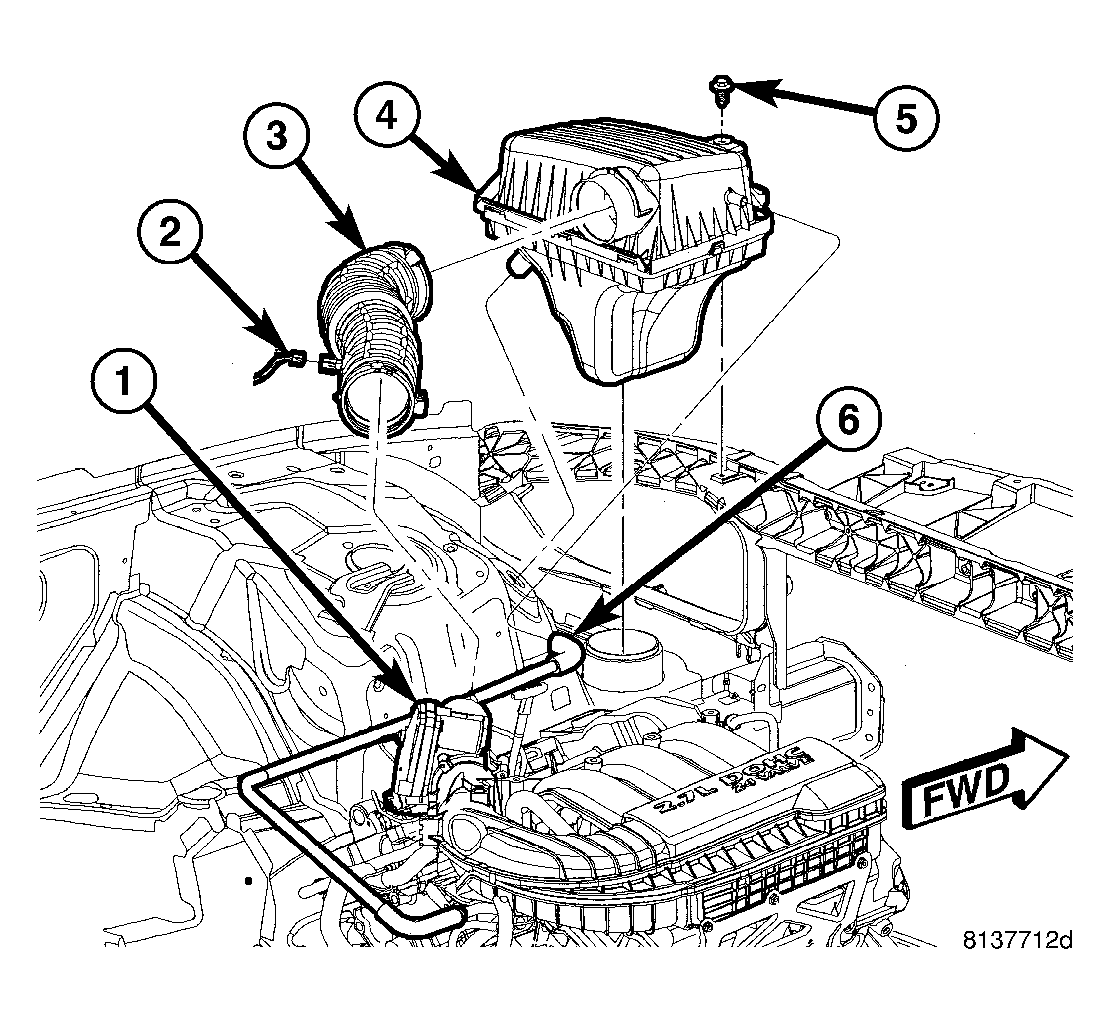

| 1 - THROTTLE BODY |
| 2 - MASS AIRFLOW SENSOR ELECTRICAL CONNECTOR |
| 3 - CLEAN AIR DUCT |
| 4 - AIR FILTER HOUSING ASSEMBLY |
| 5 - BOLT |
| 6 - VENT TUBE |
- Position air cleaner resonator assembly in vehicle.
- Install mounting bolt. Tighten bolt to 10 N.m (89 in. lbs).
- Install front fascia (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION) .
- Position air filter assembly in vehicle.
- Install mounting bolt. Tighten to 10 N.m (89 in. lbs.).
- Install vent tube.
- Install clean air duct between air filter housing and throttle body.
