Washer Pump Motor: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

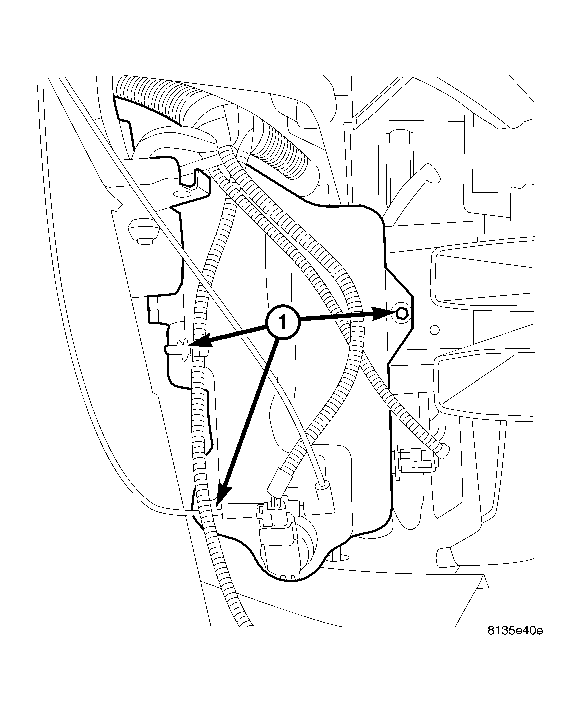

Fig 1: Washer Fluid Reservoir
GC0016761Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Drain washer fluid from the reservoir and into a suitable clean container. This can be done by disconnecting the windshield washer hose from the front (outboard) washer pump and allowing the washer fluid to drain into a container through a temporary jumper hose connected to the front washer pump.
  3. Remove the washer reservoir (Refer to ELECTRICAL/WIPERS/WASHERS/WASHER RESERVOIR - REMOVAL) .

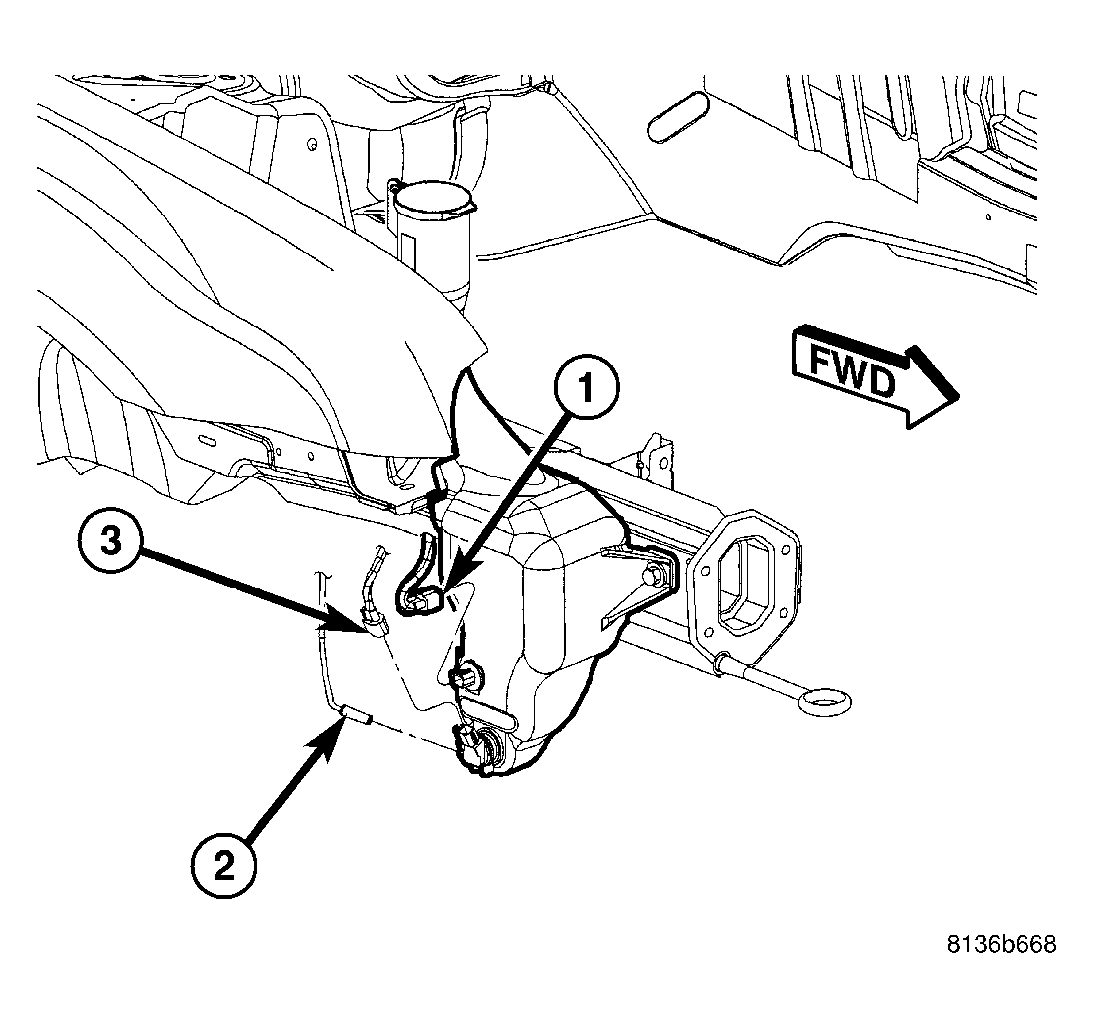

    Fig 2: Washer Pump Motor
    GC0016760Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the washer pump motor by pulling out of reservoir. Inspect the grommet and if installing a new motor, always use a new grommet.
