Washer Reservoir: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

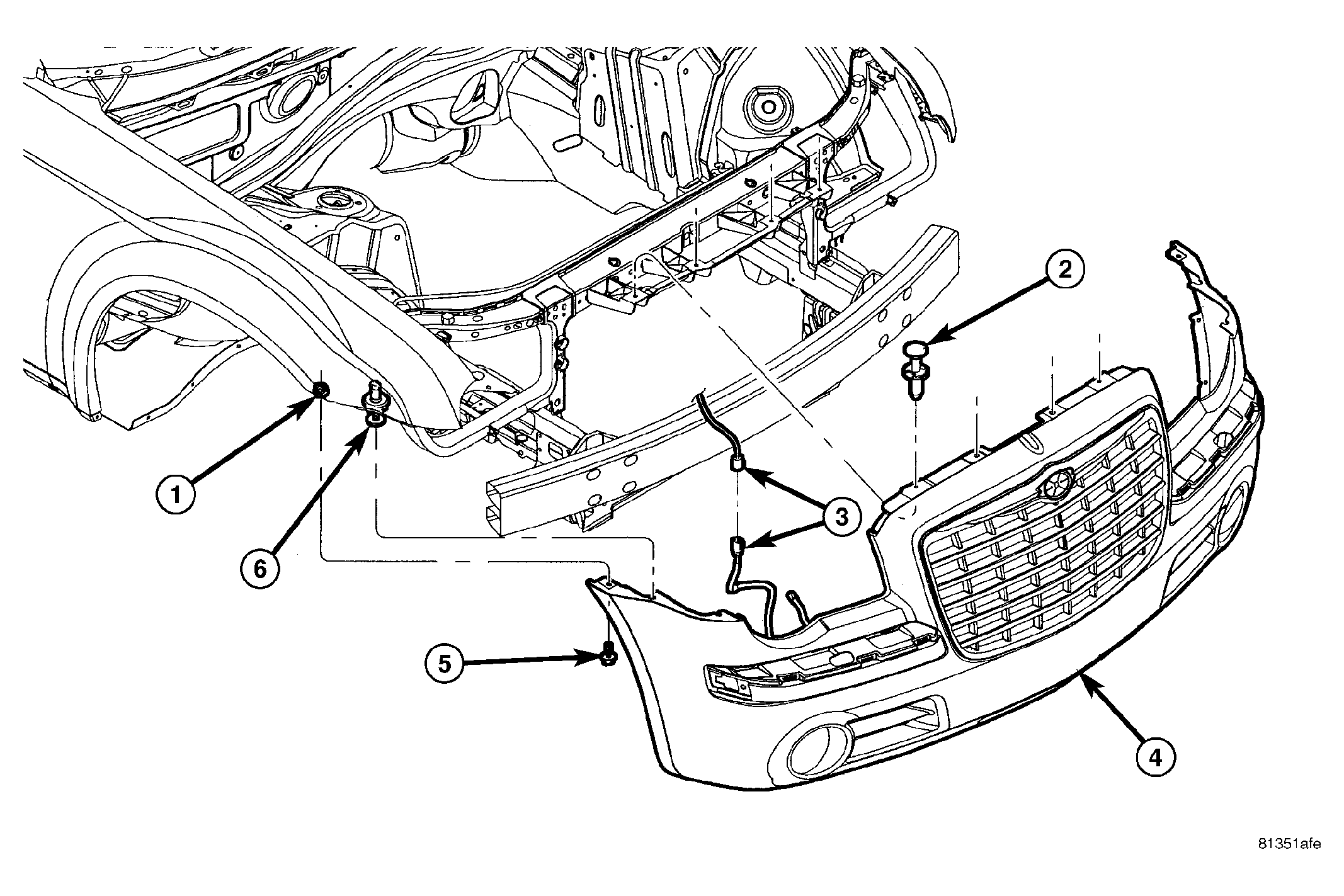

Fig 1: Removing/Installing Front Facia
GC0012958Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the front fascia (4) (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL) .
    Fig 2: Washer Fluid Level Switch
    GC0016758Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect electrical harness connectors (1 and 3) from reservoir.
  4. Disconnect hose from reservoir (2) and drain fluid into container.

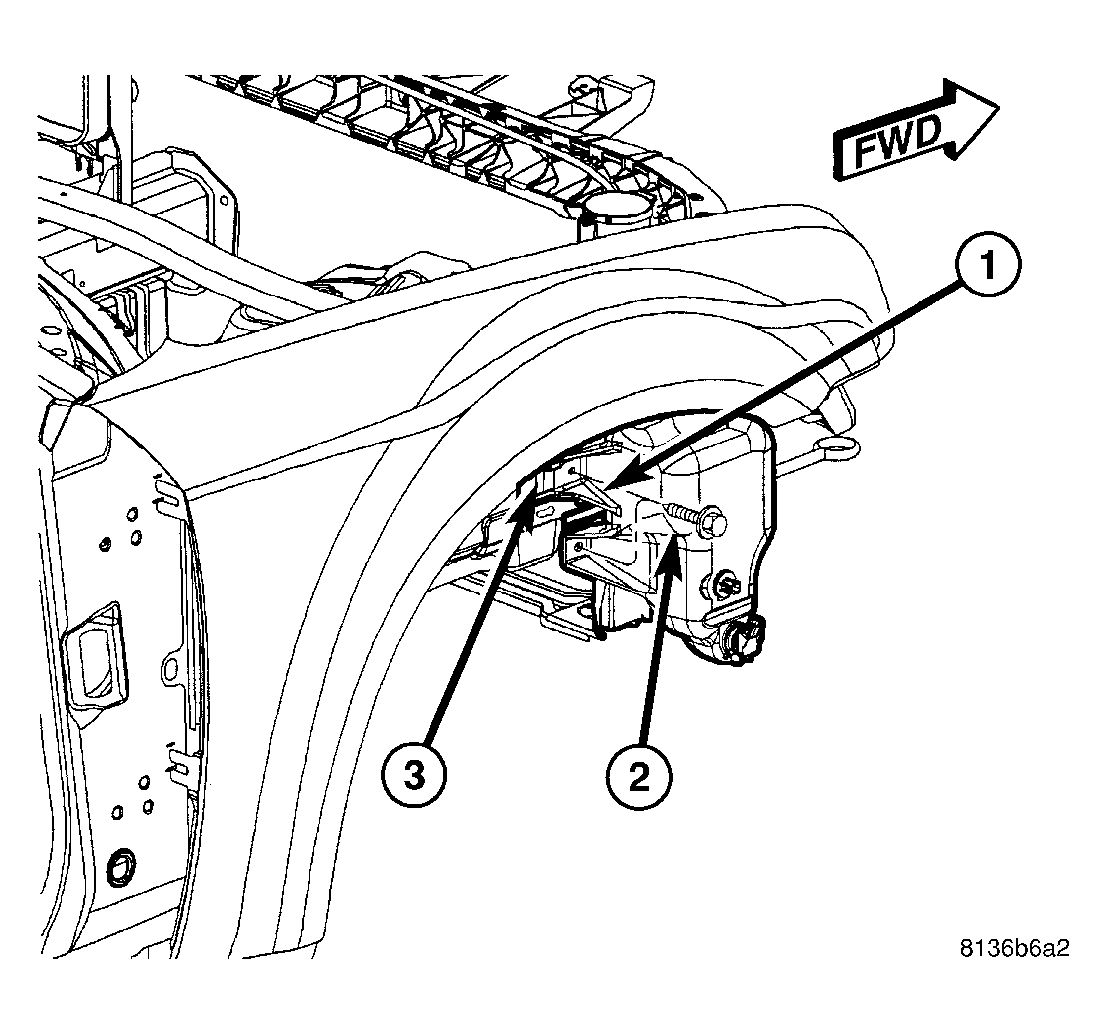

    Fig 3: Mounting Fastener
    GC0016767Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the rear mounting fastener (2).
    Fig 4: Washer Fluid Reservoir
    GC0016759Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the remaining fasteners (1).

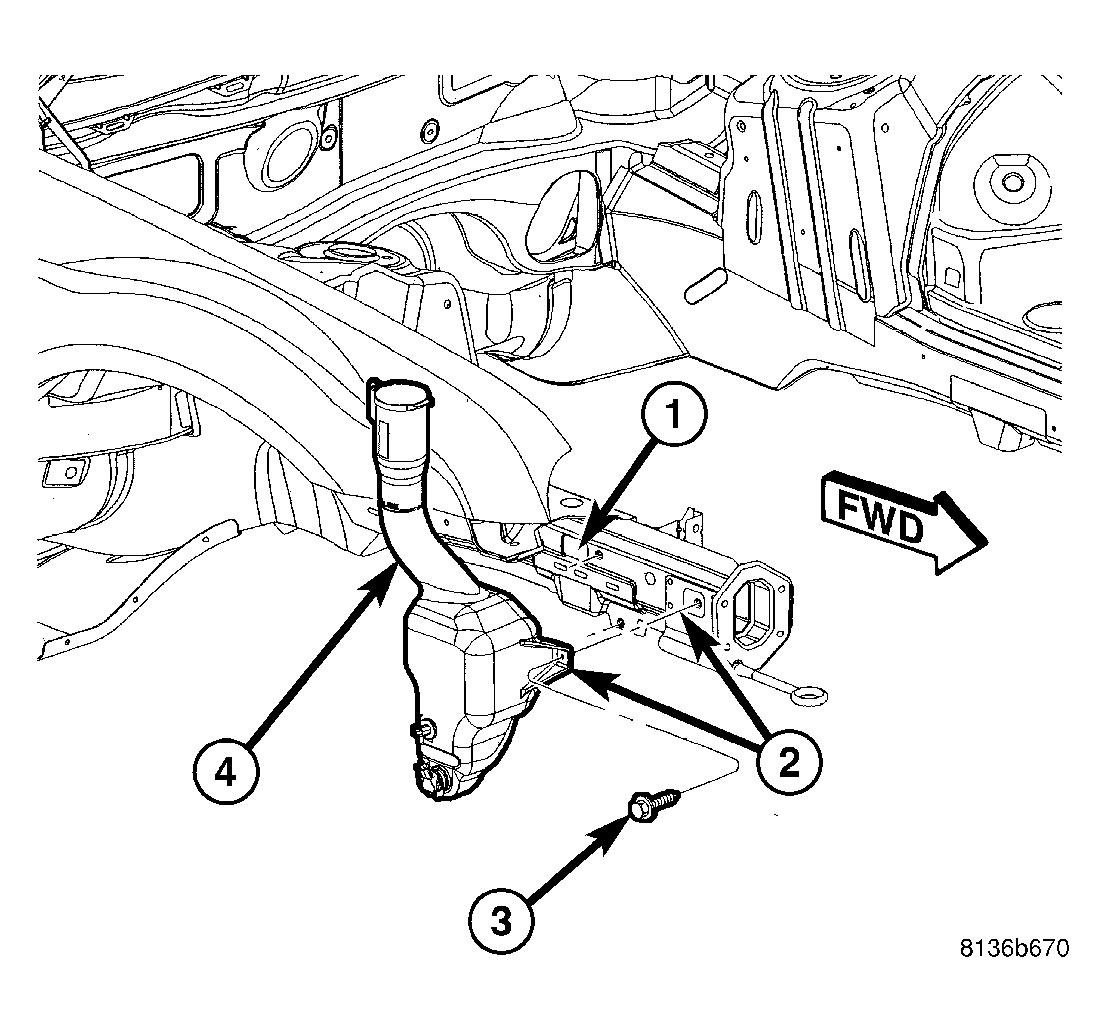

    Fig 5: Removing/Installing Washer Fluid Reservoir
    GC0016766Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove the reservoir (4) from the vehicle.
