Washer Pump Motor: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

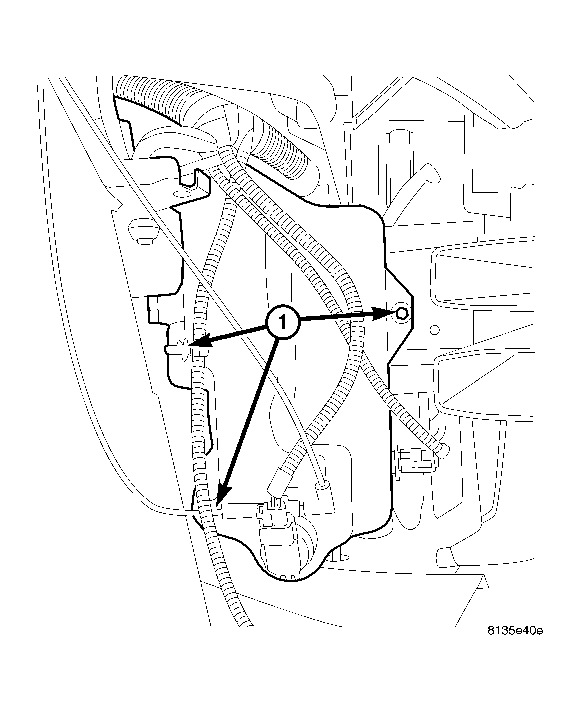

Fig 1: Washer Pump Motor

Courtesy of DAIMLERCHRYSLER CORP.

Inspect grommet and if installing new motor, use a new grommet. Position the motor into opening and firmly press into place.

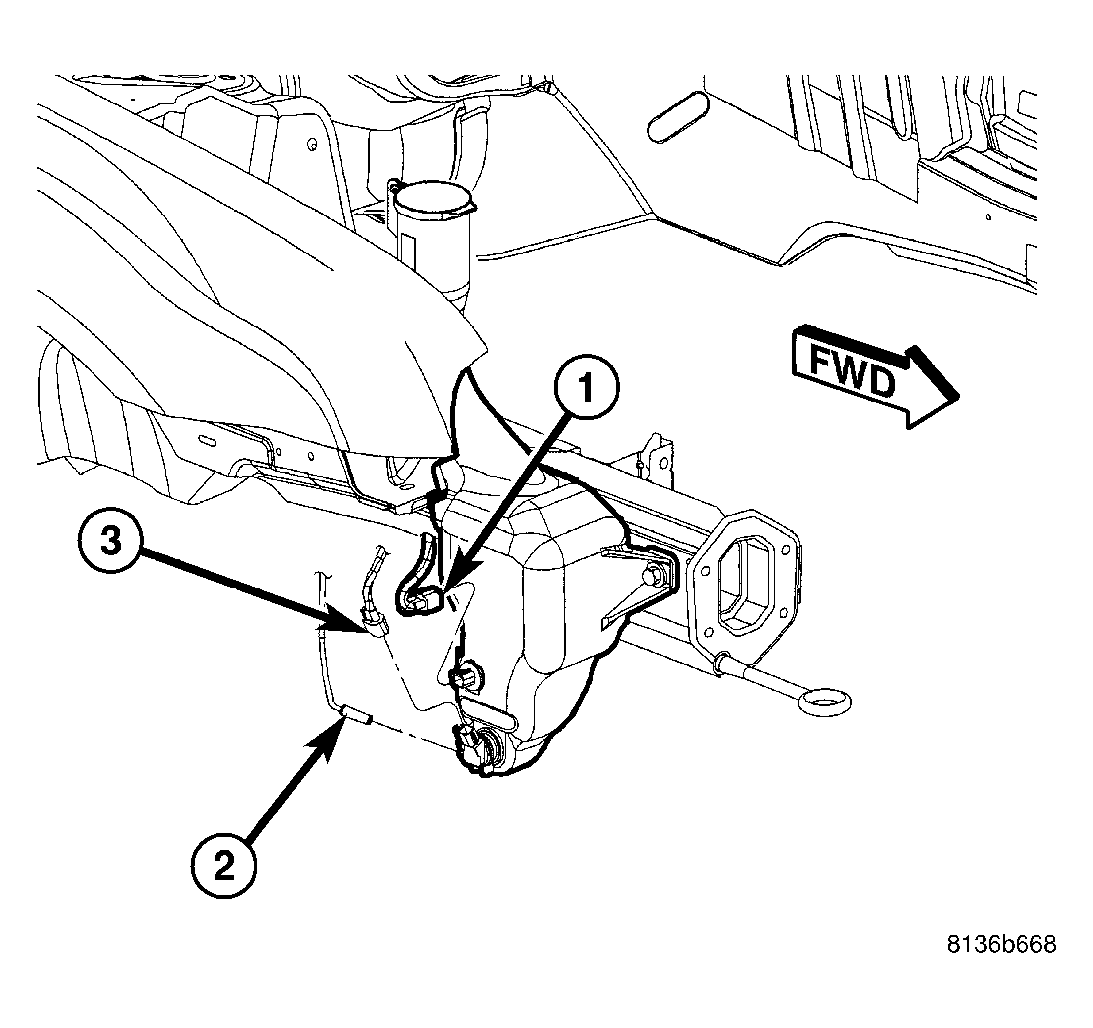

Fig 2: Washer Fluid Reservoir
Courtesy of DAIMLERCHRYSLER CORP.
Install the washer reservoir (Refer to ELECTRICAL/WIPERS/WASHERS/WASHER RESERVOIR - INSTALLATION) .
Refill the reservoir with fluid drained previously.
Connect the battery negative cable.
