Washer Reservoir: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

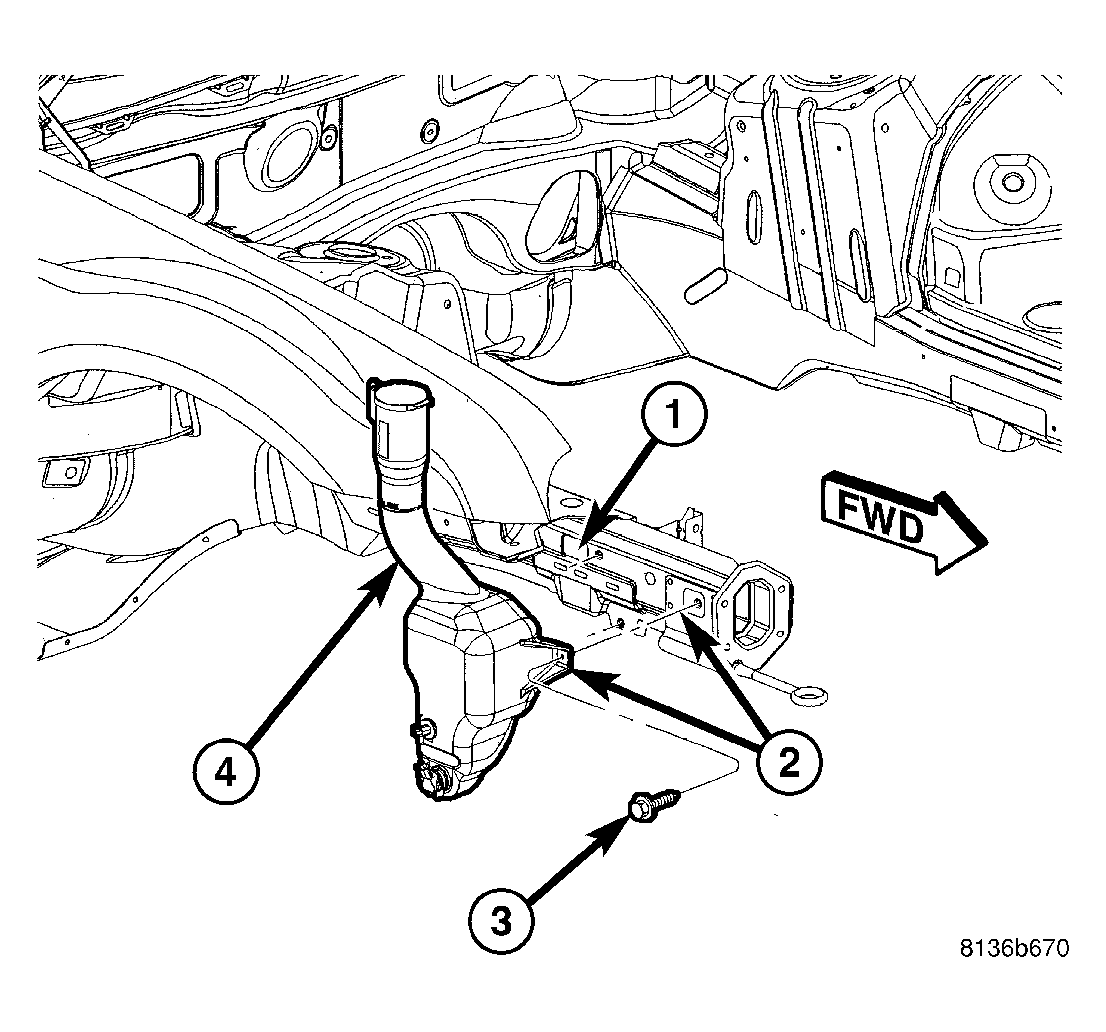

Fig 1: Removing/Installing Washer Fluid Reservoir
GC0016772Courtesy of DAIMLERCHRYSLER CORP.
  1. Position reservoir (4) in vehicle.

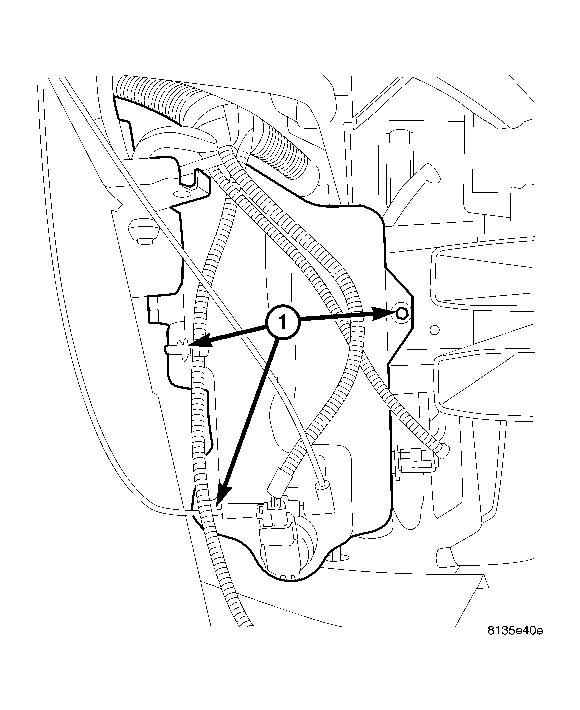

    Fig 2: Washer Fluid Reservoir
    GC0016768Courtesy of DAIMLERCHRYSLER CORP.
  2. Install mounting fasteners (1). Torque fasteners to 7 N.m (62 in. lbs).

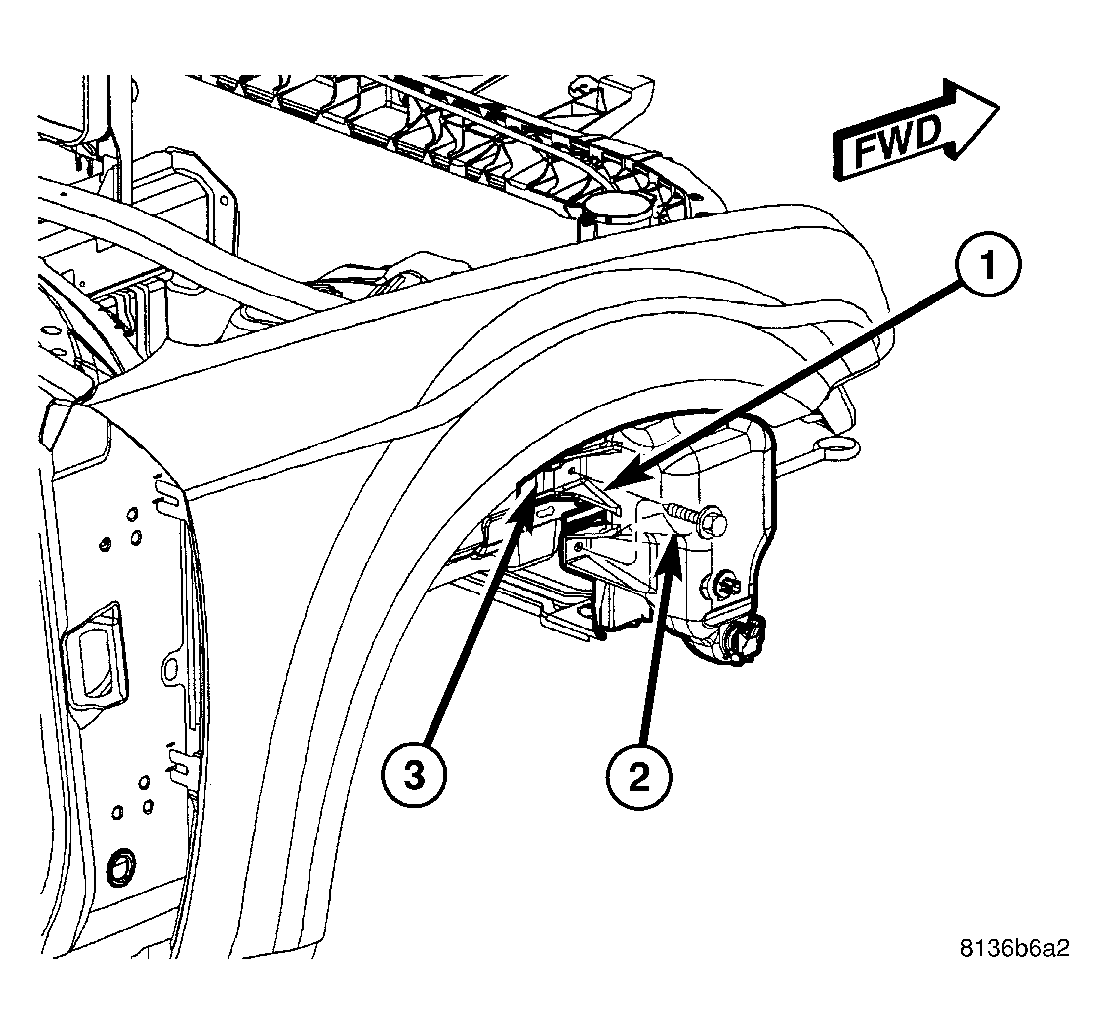

    Fig 3: Mounting Fastener
    GC0016773Courtesy of DAIMLERCHRYSLER CORP.
  3. Install rear mounting fastener (2). Torque fastener to 7 N.m (62 in. lbs).

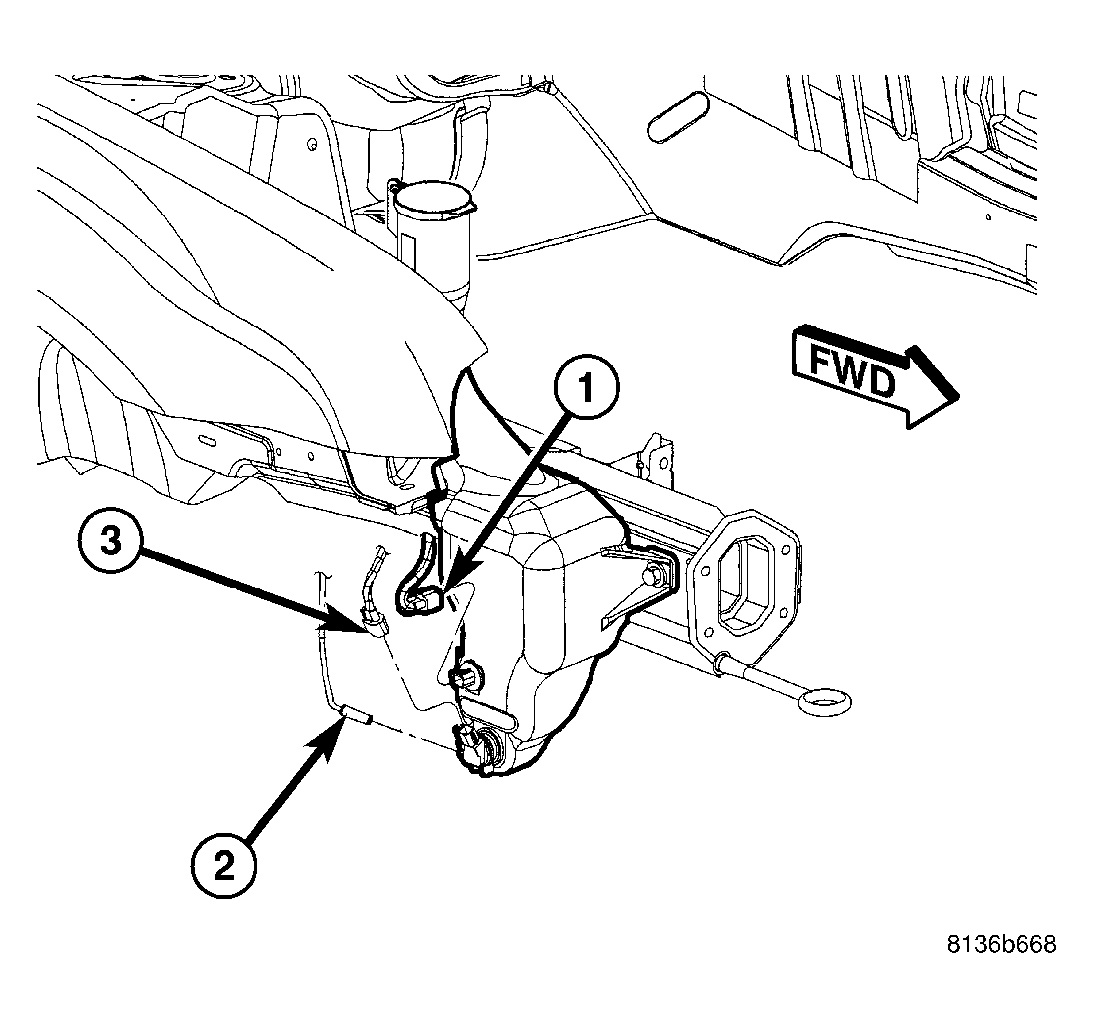

    Fig 4: Washer Fluid Level Switch
    GC0016771Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect electrical harness connectors (1 and 3) and hoses (2) to reservoir.
    Fig 5: Fascia R & I
    GC0012958Courtesy of DAIMLERCHRYSLER CORP.
  5. Install front fascia (4) (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION) .
  6. Connect the battery negative cable.
  7. Fill reservoir.
