Headlamp Washer Pump Motor: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Use new grommet when installing a new pump assembly.
- Assure that the pump is aligned to and fully seated in the reservoir cavity.
- Install the washer reservoir (Refer to ELECTRICAL/WIPERS/WASHERS/WASHER RESERVOIR - INSTALLATION) .

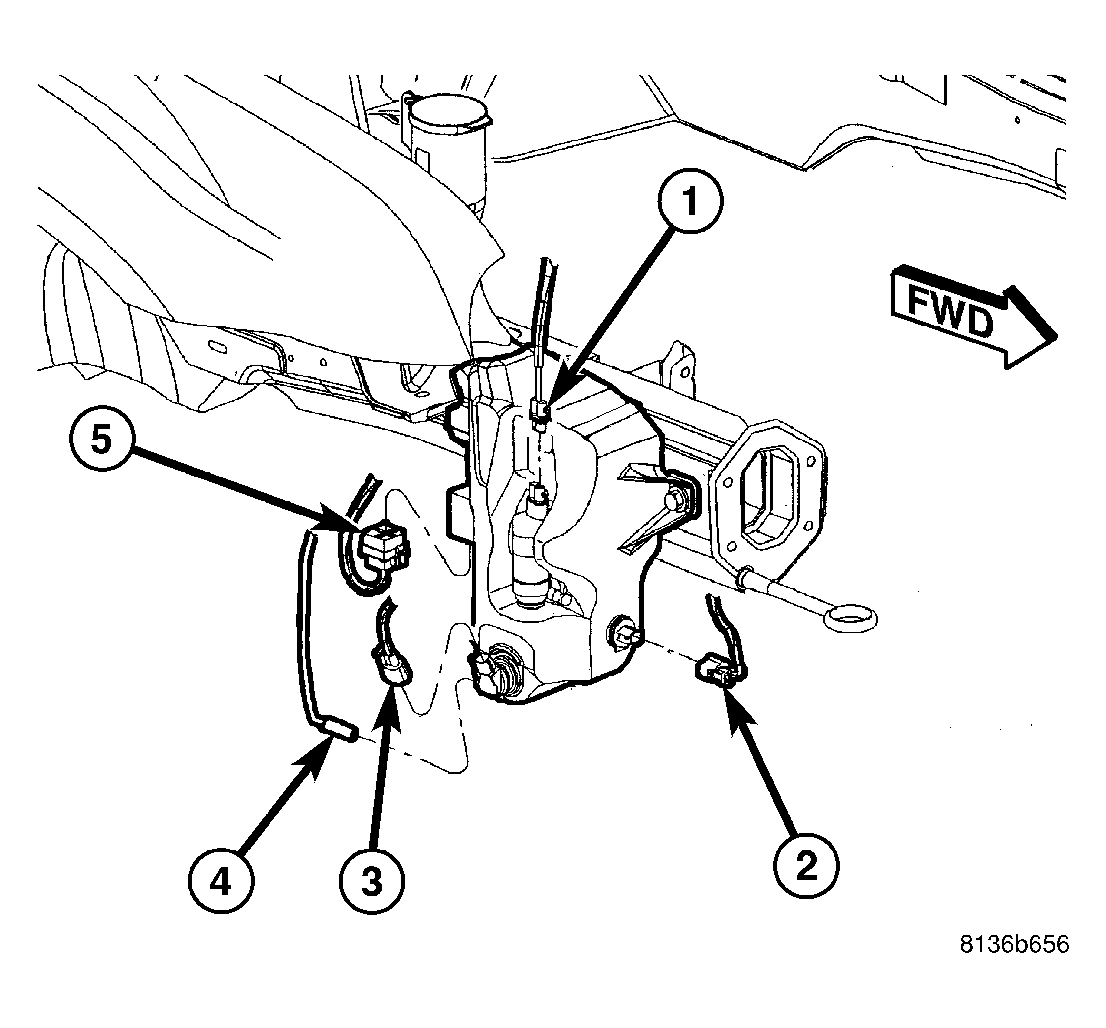

- Connect the electrical harness connectors to the washer pump motors and the fluid level sensor.
- Connect the high pressure headlamp washer hose by firmly pushing hose onto inlet until a snap is heard.
- Refill the reservoir with fluid drained previously.
- Connect the battery negative cable.
