Front Wiper Module: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Removing/Installing Front Wiper Arms
GC0016715Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the wiper arms (1) and (2) (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL) .
    Fig 2: Removing/Installing Cowl Panel
    GC0013423Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the cowl panel (1) (Refer to BODY/EXTERIOR/COWL GRILLE - REMOVAL) .
    Fig 3: Disconnecting/Connecting Wiper Motor Electrical Connector
    GC0016714Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the wiper motor electrical connector (1).

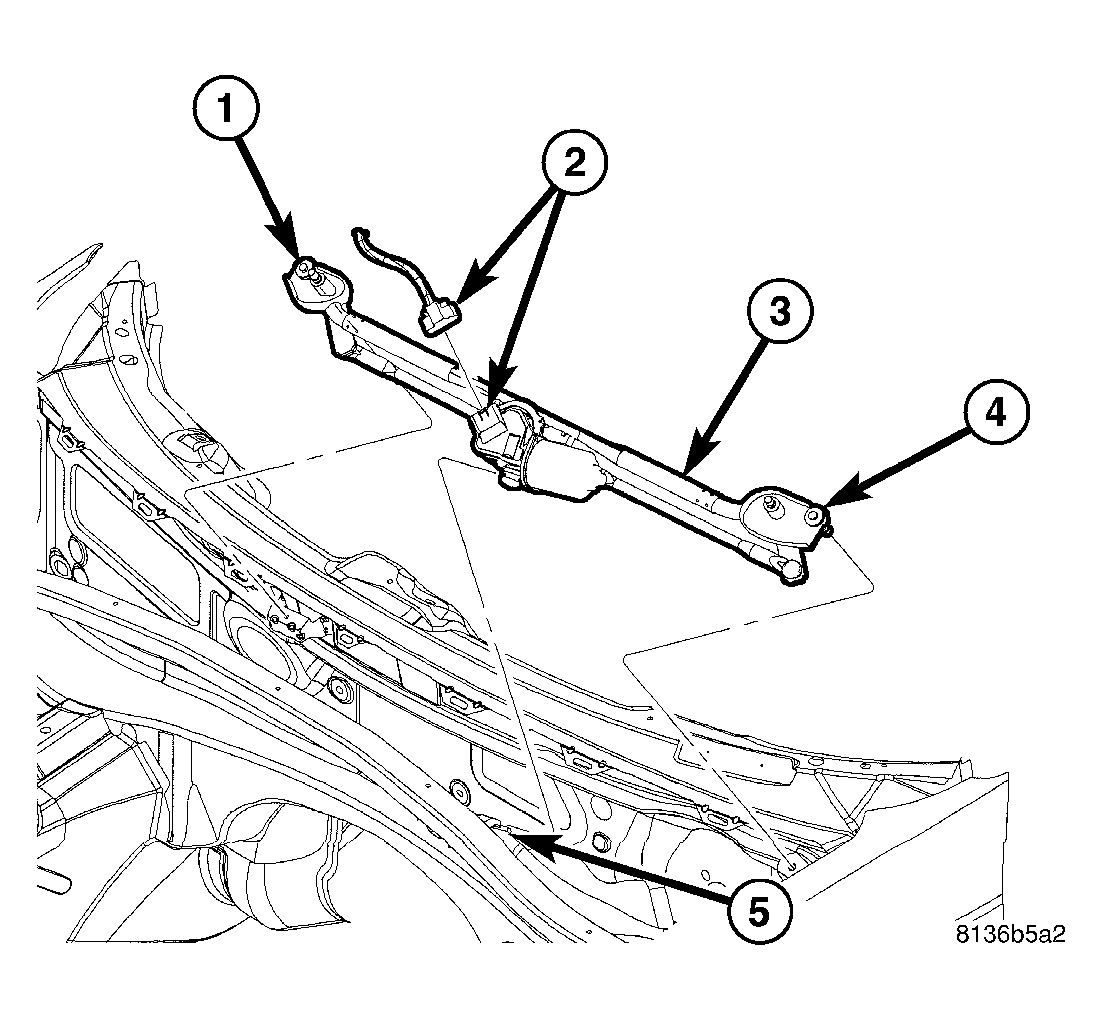

    Fig 4: Removing/Installing Wiper Module
    GC0016710Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the two retaining bolts (1 and 4) and remove wiper module (3) from vehicle.
