Panel-Cowl Top: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

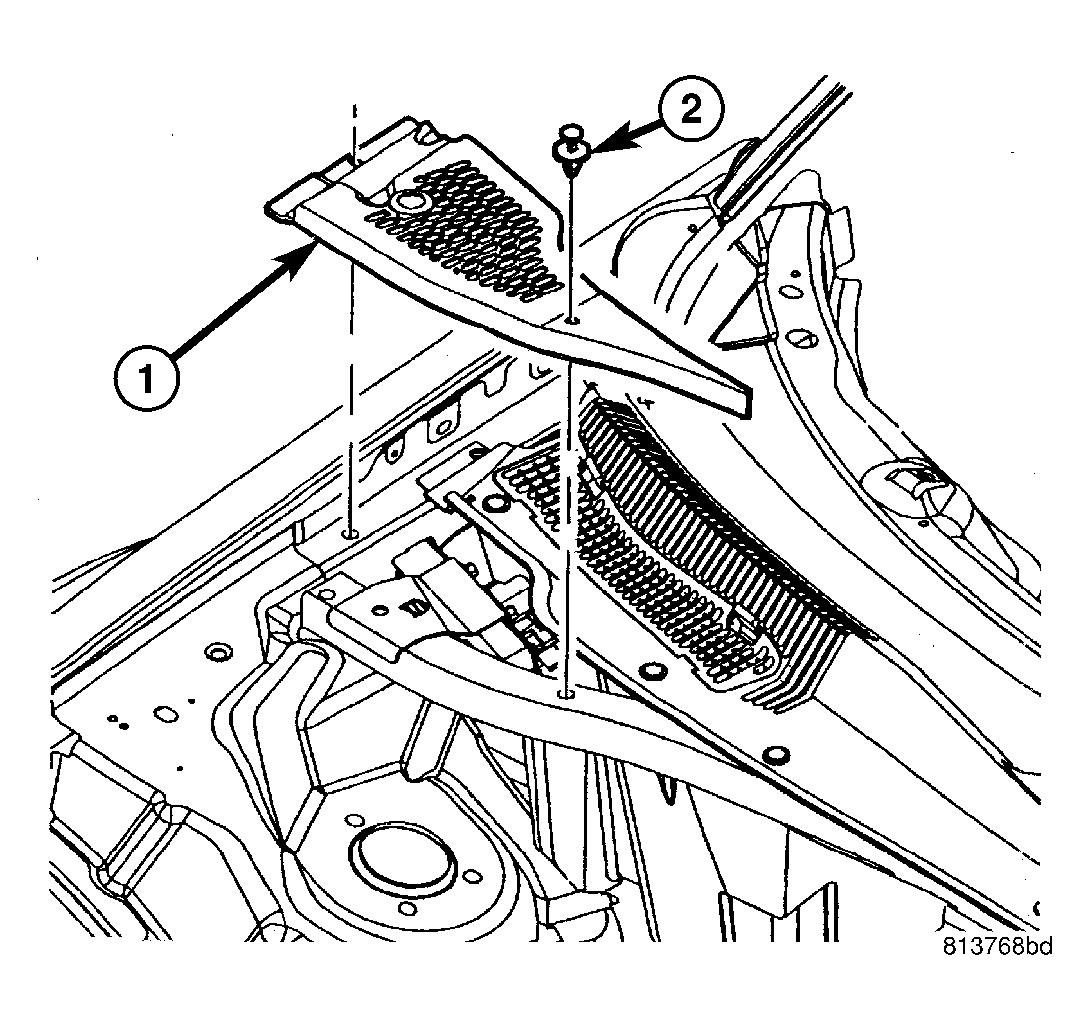

Fig 1: Cowl Panel 1
GC0013422Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the two push pins (2) that secure the front cowl top panel (1) to the right rear corner of the engine compartment
  2. Remove the front cowl top panel.
    Fig 2: Cowl Panel 2
    GC0013423Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the windshield wiper arms (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL) .
  4. Remove the push-pin (2) that secures each end of the cowl top panel (1) to each front fender (7).
  5. Disengage the two 1/4-turn fasteners (3) that secure the cowl top panel to the dash panel (5).
  6. Remove the six push-pins (4) that secure the cowl top panel to the strut tower support (6).
  7. Disengage the integral retaining clips that secure the cowl top panel to the dash panel and remove the cowl panel from the engine compartment.
