Pedal - RHD

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

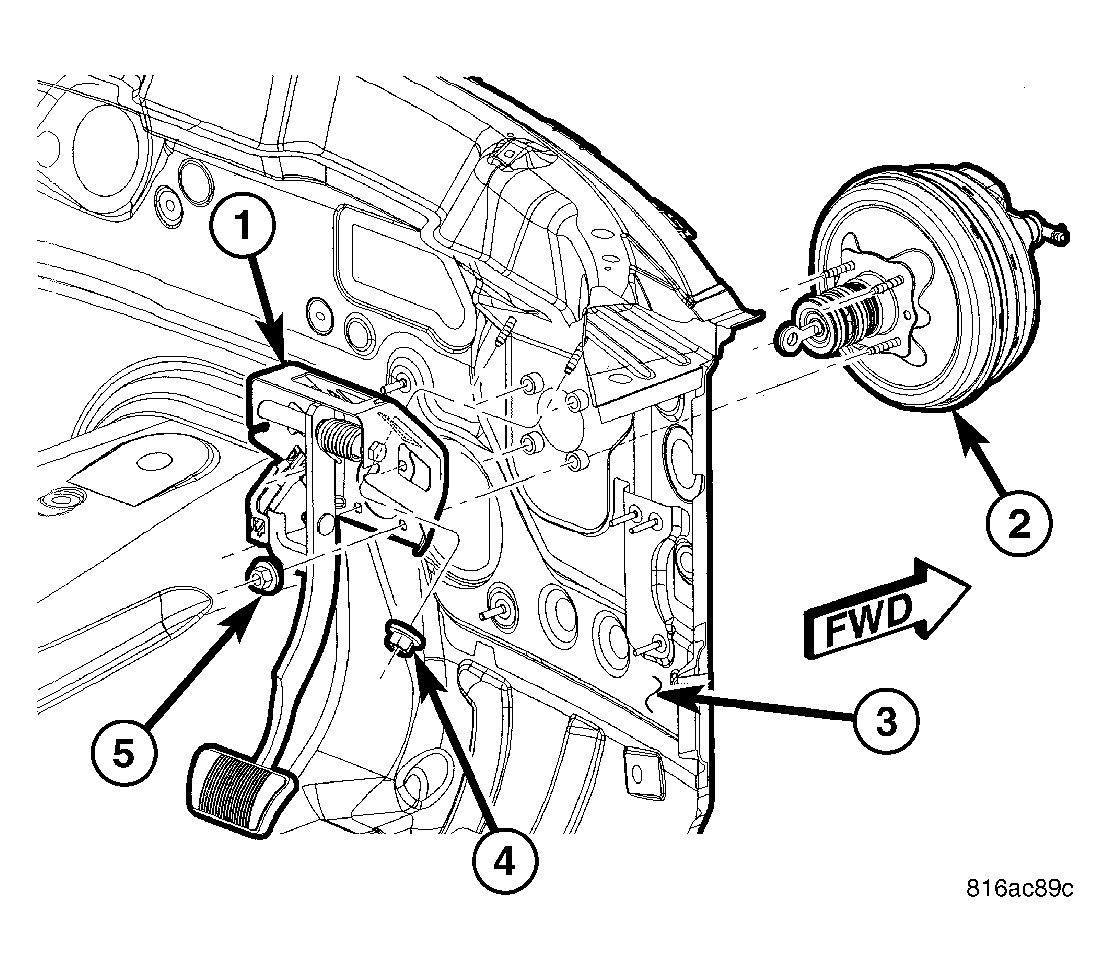

Fig 1: BOOSTER AND PEDAL MOUNTING - RHD
GC0039418Courtesy of DAIMLERCHRYSLER CORP.
  1. Install brake pedal assembly (4) under instrument panel and slide over booster push rod.
  2. From engine compartment side, push power brake booster (3) mounting studs back through dash panel (2) and brake pedal bracket.
  3. Install two upper mounting nuts (4) fastening pedal bracket to dash panel (3). Do not tighten at this time.
  4. Install four power brake booster mounting nuts (5). Tighten nuts to 25 N.m (18 ft. lbs.).
  5. Tighten two upper mounting nuts (4) to 25 N.m (18 ft. lbs.).
    CAUTION: When installing booster push rod on brake pedal pin, be careful not to damage rubber O-ring on pin.
  6. Slide booster push rod onto brake pedal pin. Install NEW retaining clip securing push rod to brake pedal.

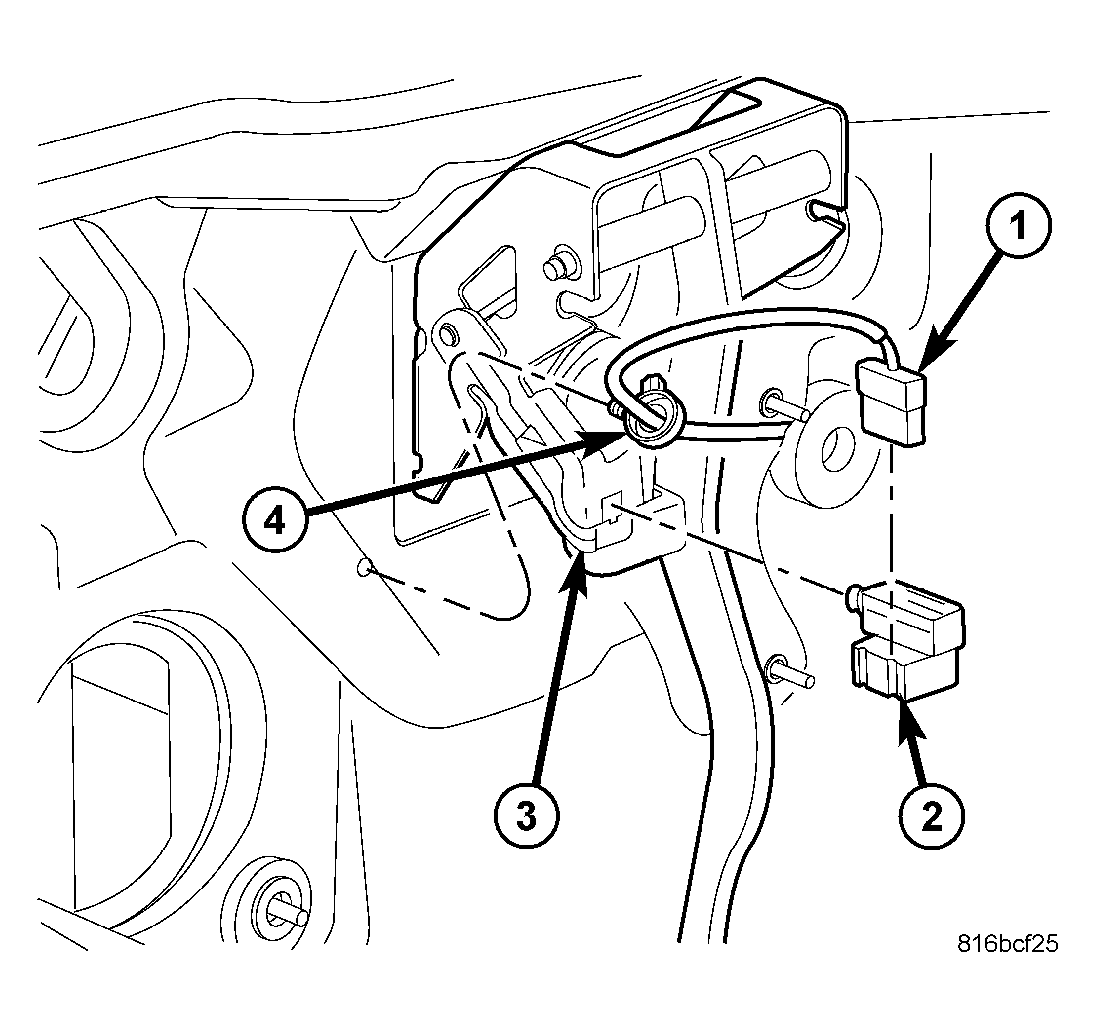

    Fig 2: STOP LAMP SWITCH MOUNTING - RHD
    GC0039419Courtesy of DAIMLERCHRYSLER CORP.
  7. Install and adjust brake lamp switch (2). (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/BRAKE LAMP SWITCH - INSTALLATION)

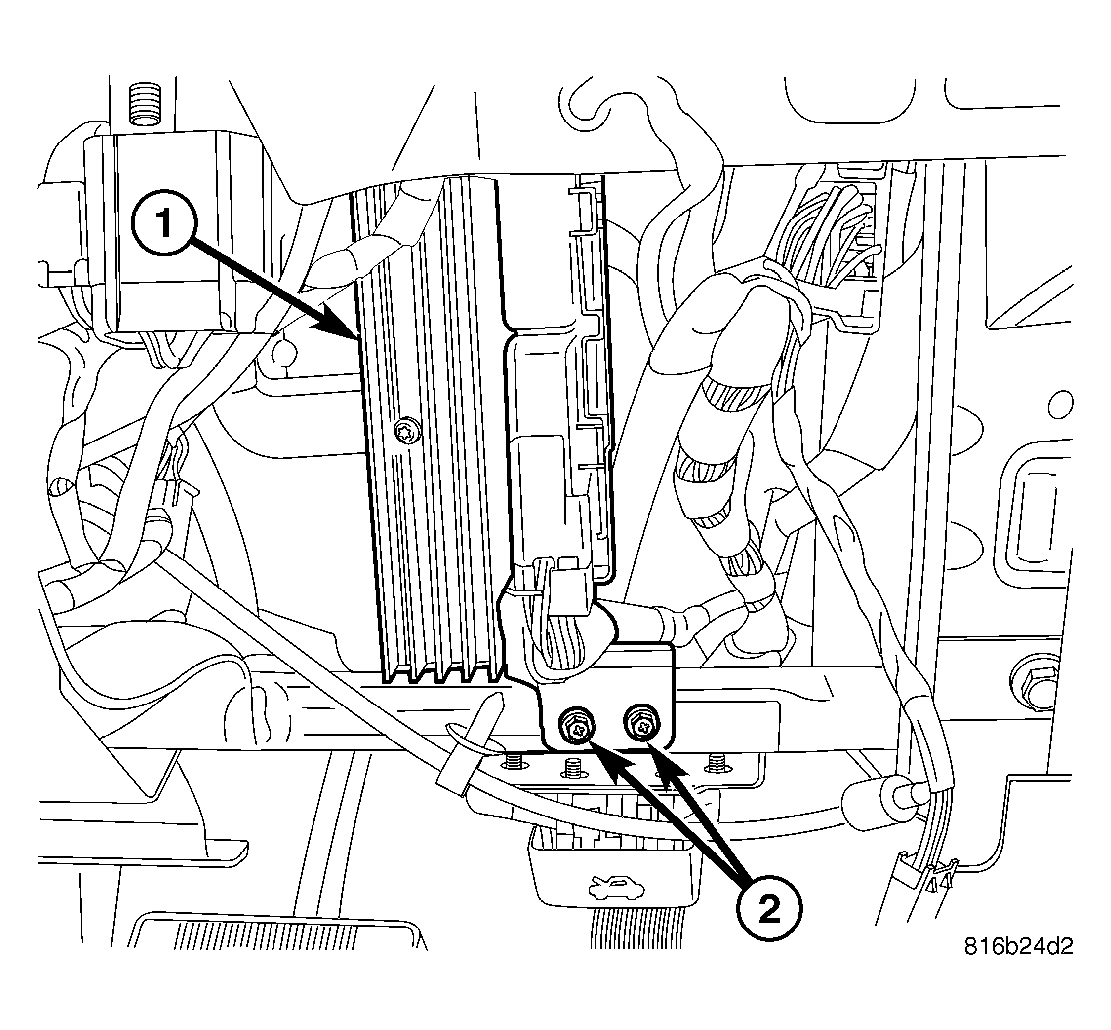

    Fig 3: RADIO AMPLIFIER /TRANSMISSION CONTROL MODULE
    GC0039417Courtesy of DAIMLERCHRYSLER CORP.
  8. Connect four wiring connectors to radio amplifier/transmission control module assembly (1).
  9. Place radio amplifier/transmission control module assembly (1) in mounted position. Install one upper and two lower (2) mounting screws.
  10. Install steering column opening cover. (Refer to BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER - INSTALLATION)
  11. Install driver side silencer under instrument panel. (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL SILENCER - INSTALLATION)
    Fig 4: Disconnecting/Connecting Battery Cables
    GC0012970Courtesy of DAIMLERCHRYSLER CORP.
  12. Connect battery negative cable (2) to battery post. It is important that this is performed properly. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
  13. Road test vehicle testing operation of brakes.
