Seat Cushion: Removal

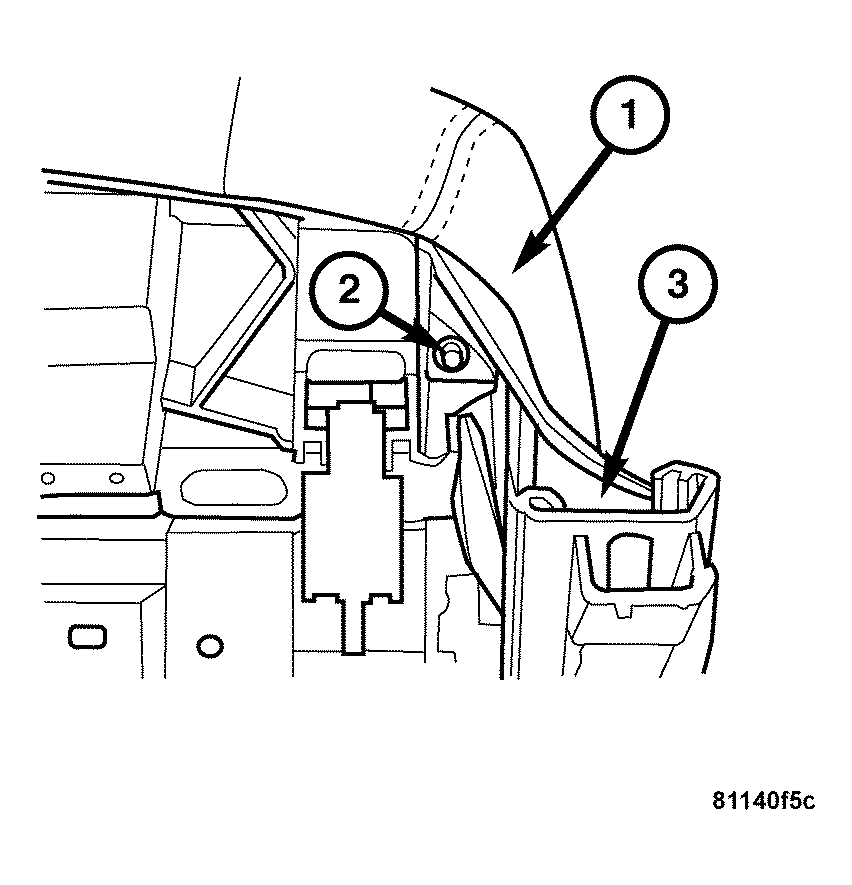

Fig 1: Removing/Installing Front Seat-To-Frame Bolt

Courtesy of CHRYSLER LLC

Remove the seat. See REMOVAL .
Remove the bolt (2) on the front seat (1) to the frame (3).

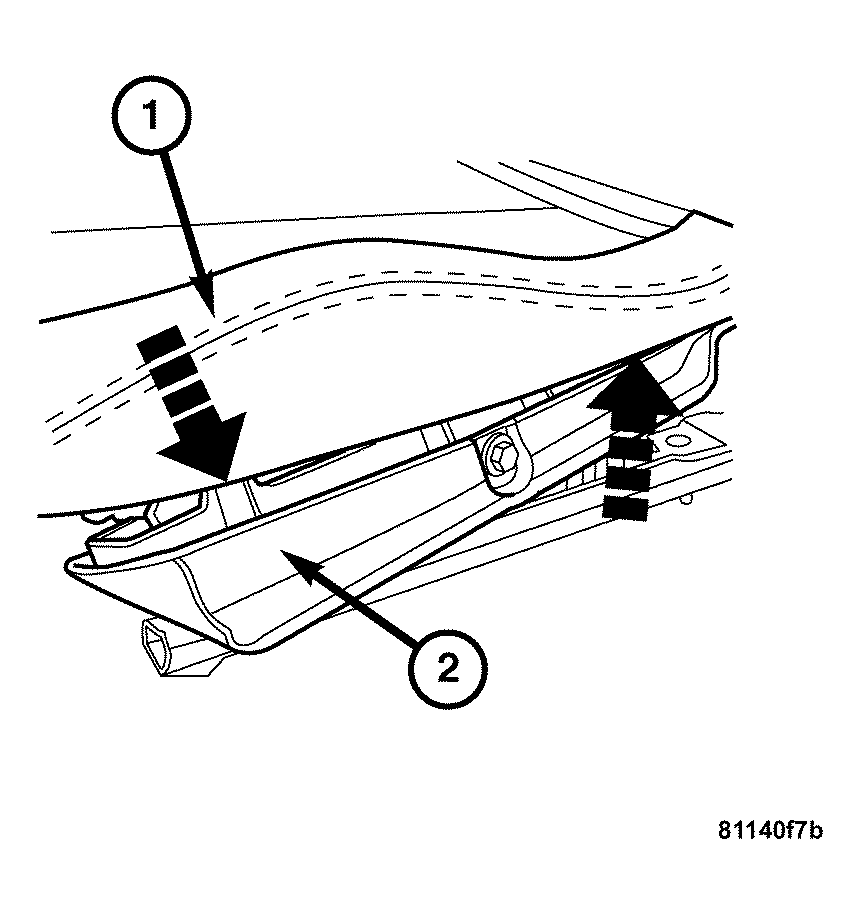

Fig 2: Removing/Installing Panel
Courtesy of CHRYSLER LLC
Remove the panel (2).

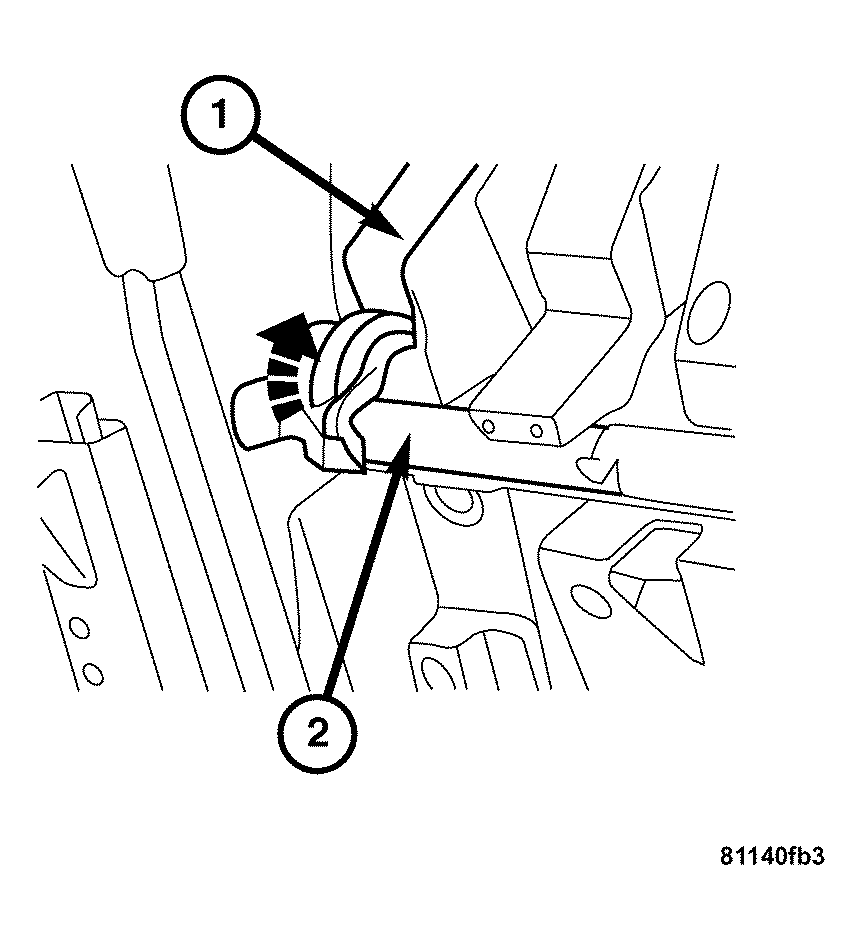

Fig 3: Removing/Installing Expanding Anchors
Courtesy of CHRYSLER LLC
Pull the two expanding anchors (2) out of the front left and right bearing brackets (1).

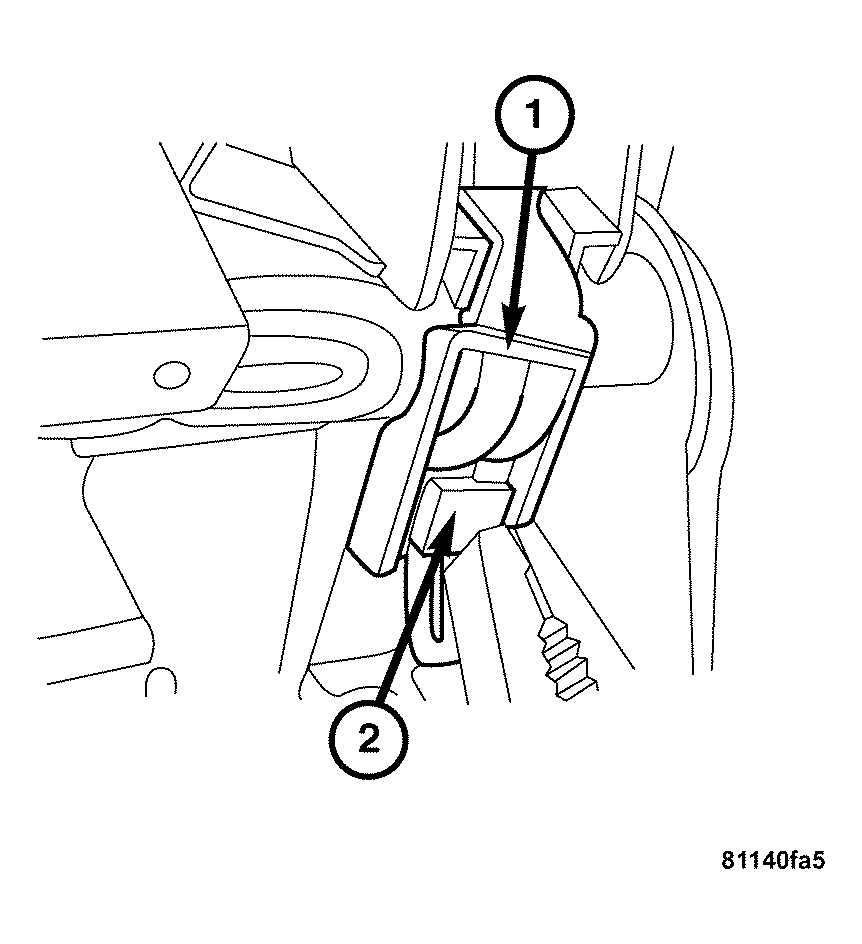

Fig 4: Removing/Installing Bearing Brackets
Courtesy of CHRYSLER LLC
Remove the bearing brackets (1) from the seat cushion (2).

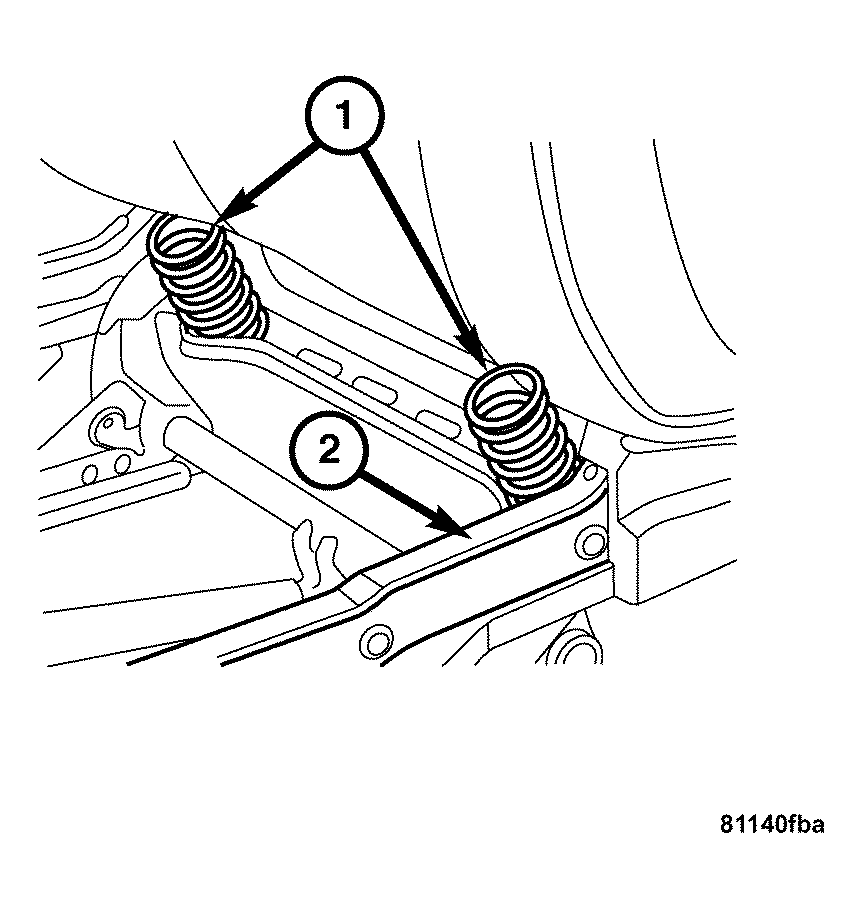

Fig 5: Identifying Springs & Seat Frame
Courtesy of CHRYSLER LLC
Disconnect the heated seat cushion from the 4-pin connector if equipped.
Lift the seat cushion at the front and remove from seat frame (2), then remove the two springs (1) on the rear of the seat frame. These components are not replaceable separately from the seat cushion foam. When replaced as an assembly, the complete service kit (seat cushion, bladder/sensor, OCM, and new wiring harness) MUST be used. See REMOVAL .
