Body - Interior & Exterior (Service Information): Seats: Seat: Removal

Fig 1: Identifying Seat, Front Seat Track Bolts & Plastic Front Covering

Courtesy of CHRYSLER LLC

1. Move the seat (1) all the way back to its lock position.
2. Pull the plastic front covering (3) from the seat tracks.
3. Remove the two front seat track bolts (2).

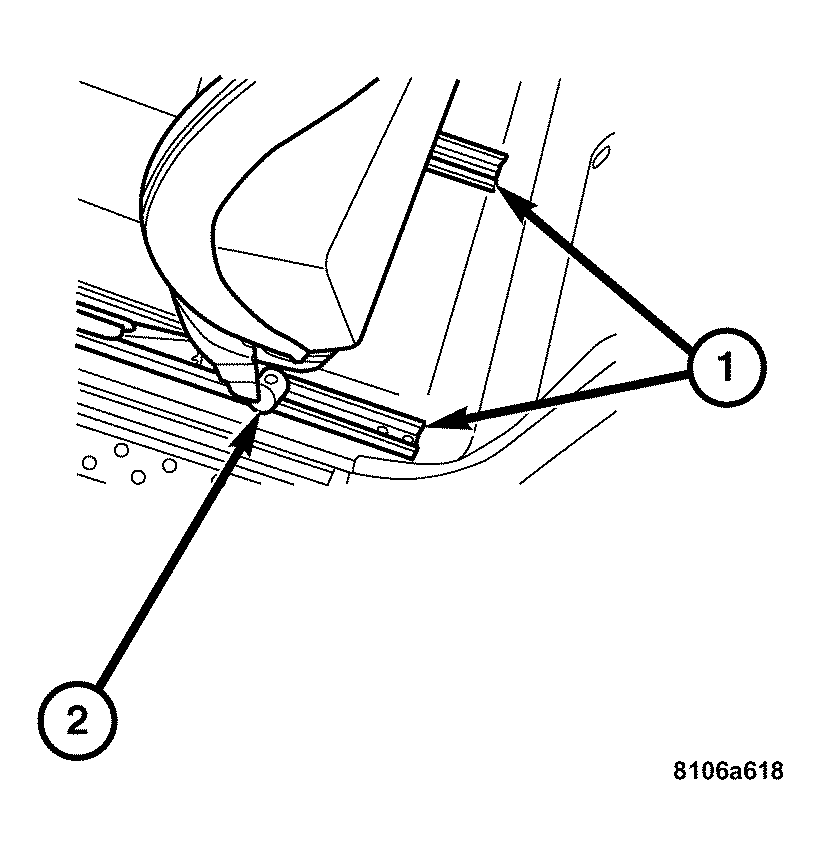

   Fig 2: Locating Seat Belt Bolt & Seat Track Rear Bolts

   Courtesy of CHRYSLER LLC
4. Move the seat all the way forward to its lock position.
5. Remove the bolt (2) on the seat track for the seat belt mounting.
6. Remove the belt end from the seat adjuster.
7. Remove the rear two bolts (1) attaching the seat track to the floor.
8. Disconnect the electrical connectors for the seat heater and the electrical seat adjustment (if equipped).
9. Move the seat backward, lift up and then remove from the vehicle.
