Stationary Glass: Windshield: Removal

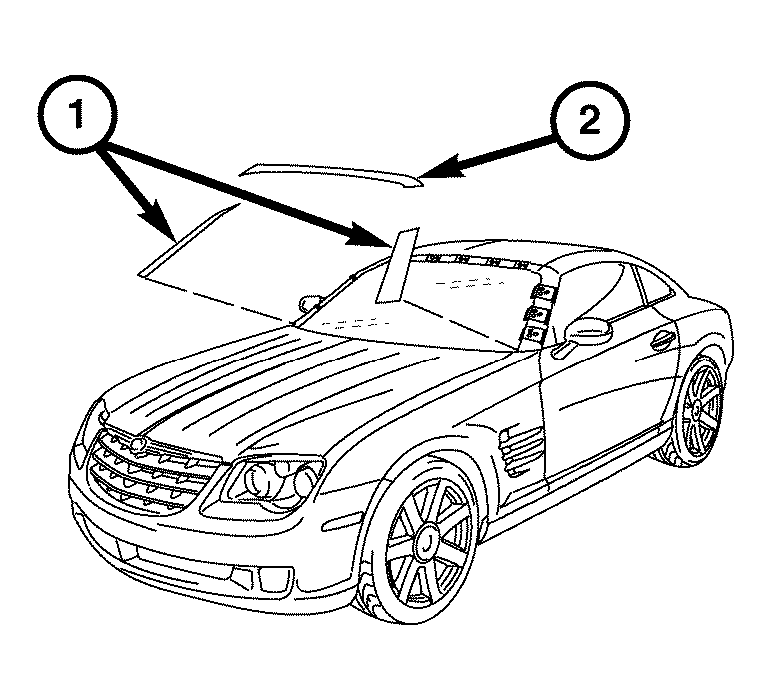

Fig 1: Identifying Windshield Moldings
GC0033361Courtesy of CHRYSLER LLC
  1. Remove inside rear view mirror. Refer to REMOVAL .
  2. Remove cowl cover. See REMOVAL .
  3. Remove upper windshield molding (2). See REMOVAL .
  4. Remove windshield side moldings (1). See REMOVAL .
    Fig 2: Removing Windshield
    GC0033362Courtesy of CHRYSLER LLC
    WARNING: WEAR EYE AND HAND PROTECTION WHEN HANDLING GLASS. PERSONAL INJURY CAN RESULT.
    CAUTION: Do not damage body or trim finish when cutting out glass or applying fence primer.
  5. Cut urethane bonding from around windshield (2) using a suitable sharp cold knife (1). A pneumatic cutting device can be used if available.
  6. Separate windshield (2) from vehicle.
