Cowl Grille: Removal

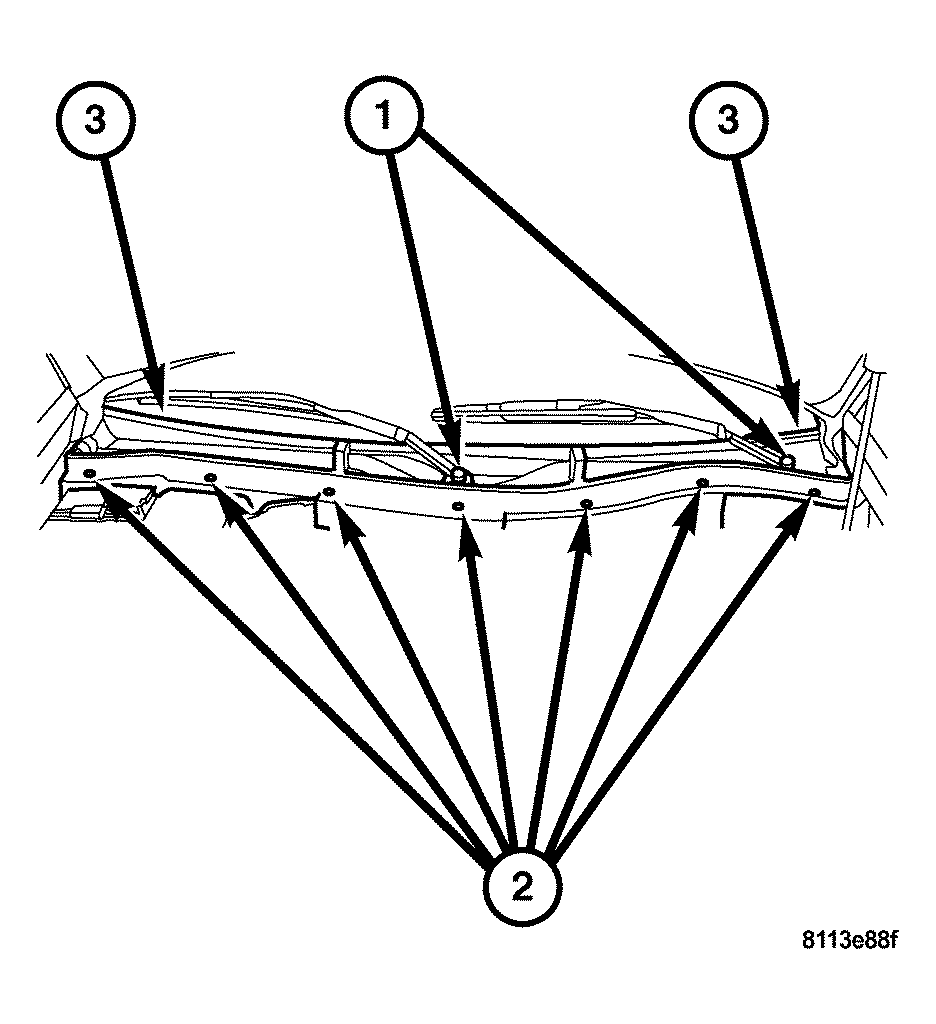

Fig 1: Removing/Installing Cowl Grille
GC0033219Courtesy of CHRYSLER LLC
  1. Remove the windshield wiper arm plastic caps, then remove the nuts (1) and the wiper arms.
  2. Remove the seven screws (2) from the cowl grille.
  3. Pull back on the cowl grille to release the clips (3) and remove the hoses and connections from the underside of the cowl grille, then remove the cowl grille from the vehicle.
