Non - Turbo

  1. Remove front fascia (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL) .
    NOTE: When the transaxle cooler lines are removed from the rolled-groove type fittings at the cooler and transaxle, damage to the inner wall of hose will occur. To prevent potential leakage, the cooler hoses and clamps must be replaced.
  2. Disconnect hoses from transmission oil cooler (Refer to COOLING/TRANSMISSION - STANDARD PROCEDURE) . See Fig 1.
  3. Remove screws attaching transmission oil cooler to radiator. See Fig 1.
  4. Remove transmission oil cooler. See Fig 1.

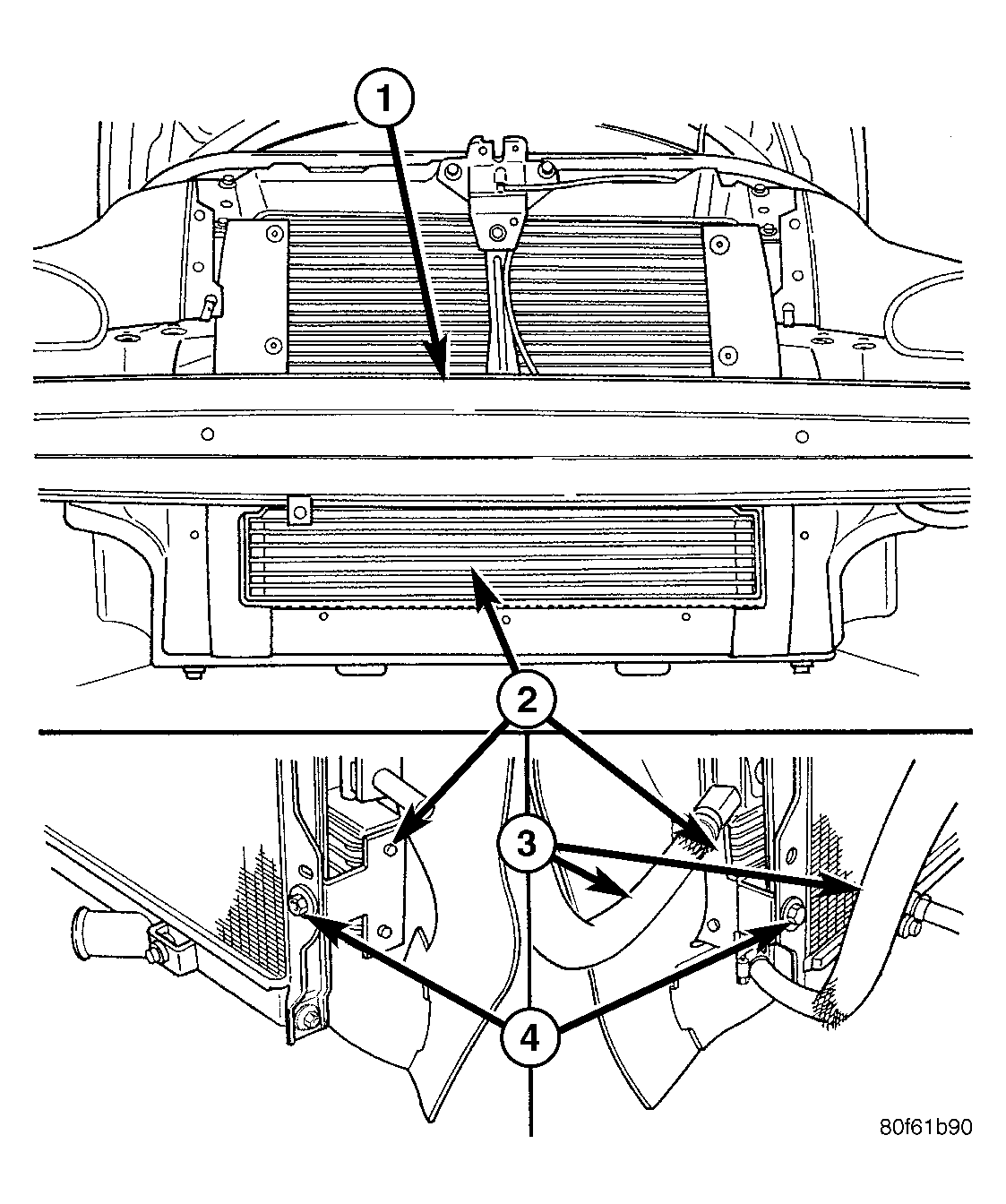

Fig 1: Removing/Installing - Automatic Transmission Oil Cooler
GC0021864Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT BUMPER (FASCIA REMOVED)
2 - TRANSMISSION OIL COOLER
3 - HOSES
4 - SCREWS
