Clutch BELLHOUSING: Disassembly

WARNING: This page is about a different variant/trim than selected.

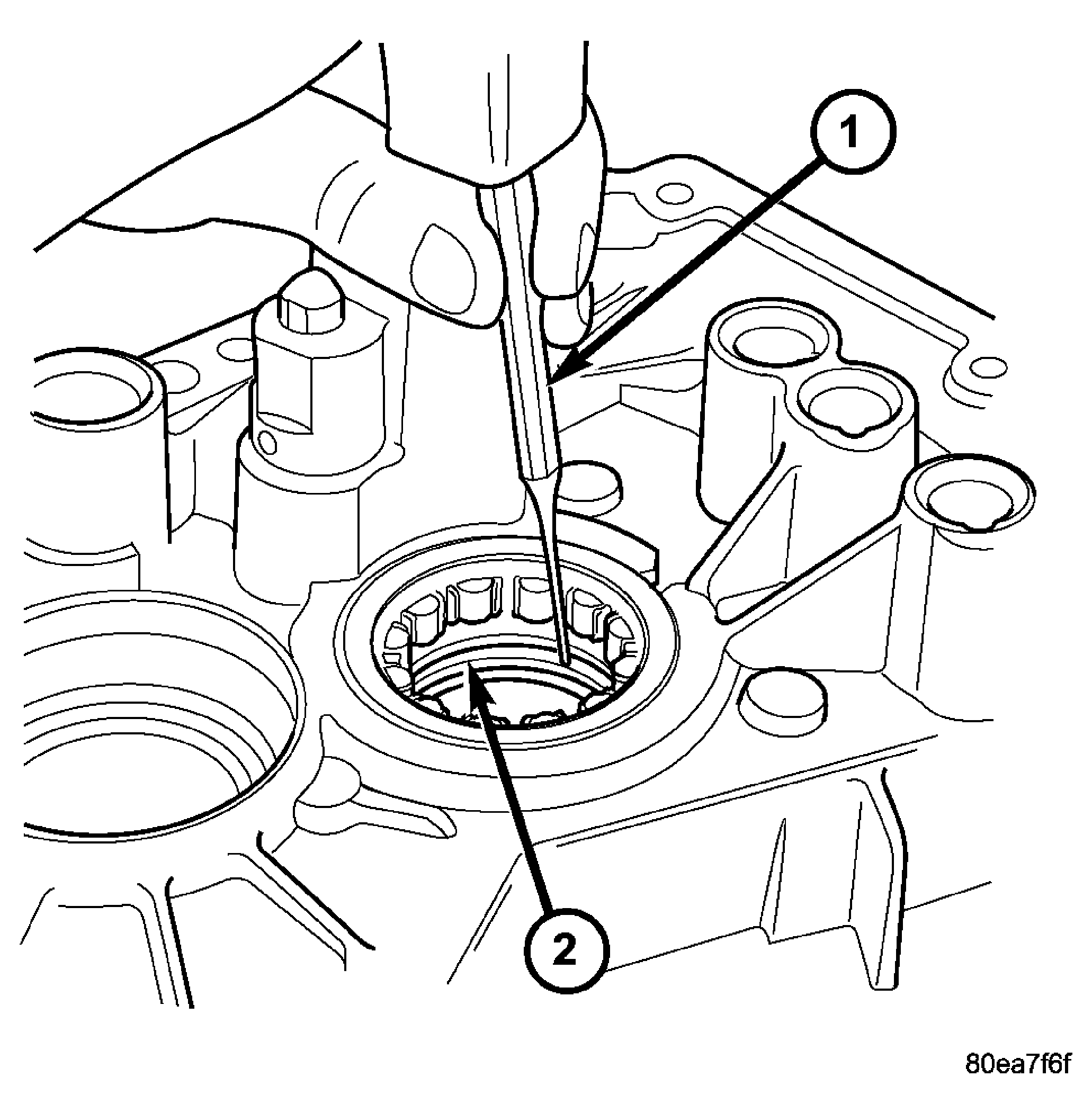

Fig 1: Input Shaft Seal Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - DRIFT

2 - SEAL

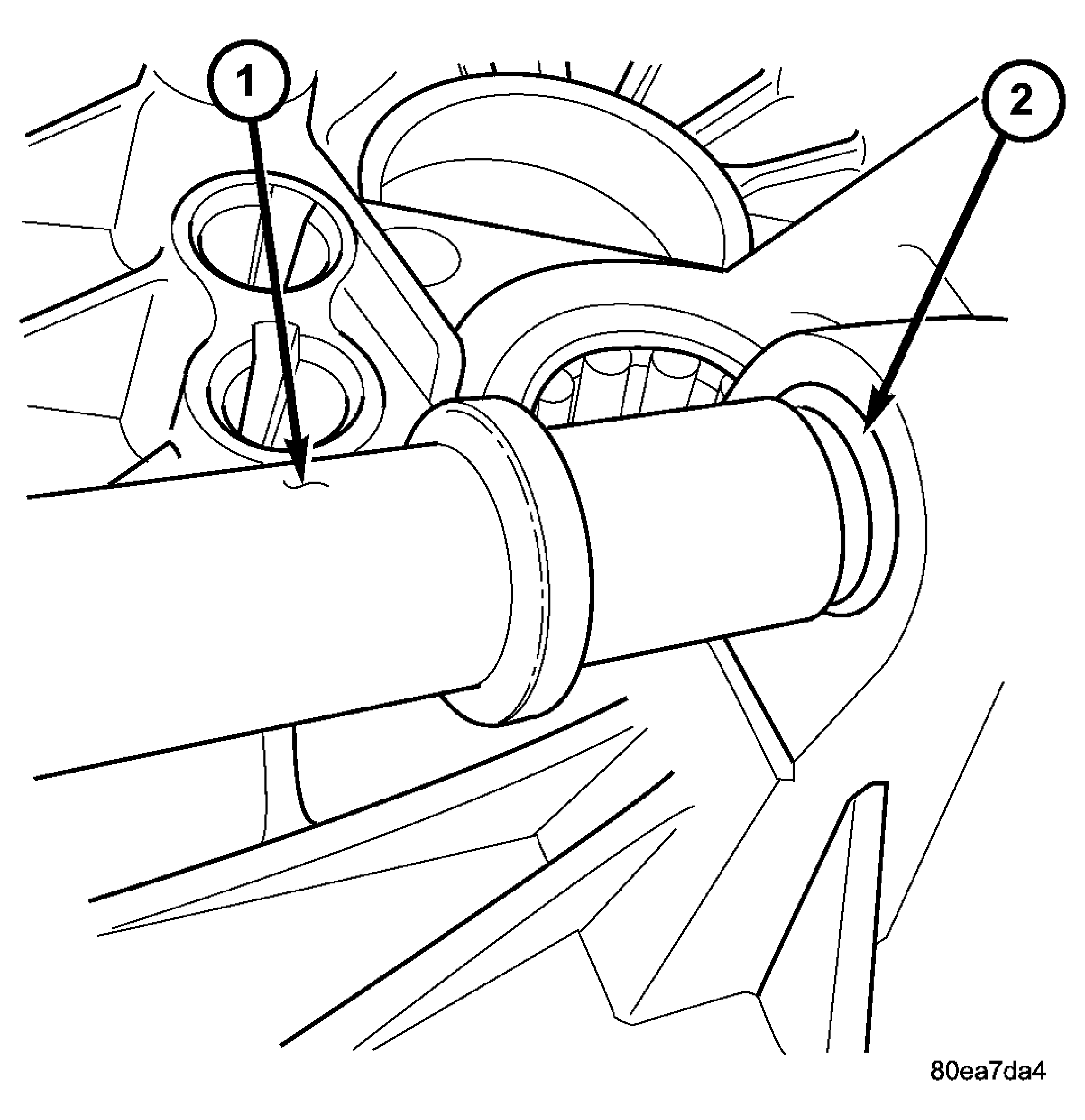

Using Remover/Installer 8868 (1), drive out shift shaft needle bearing (2) and discard. See Fig 3.

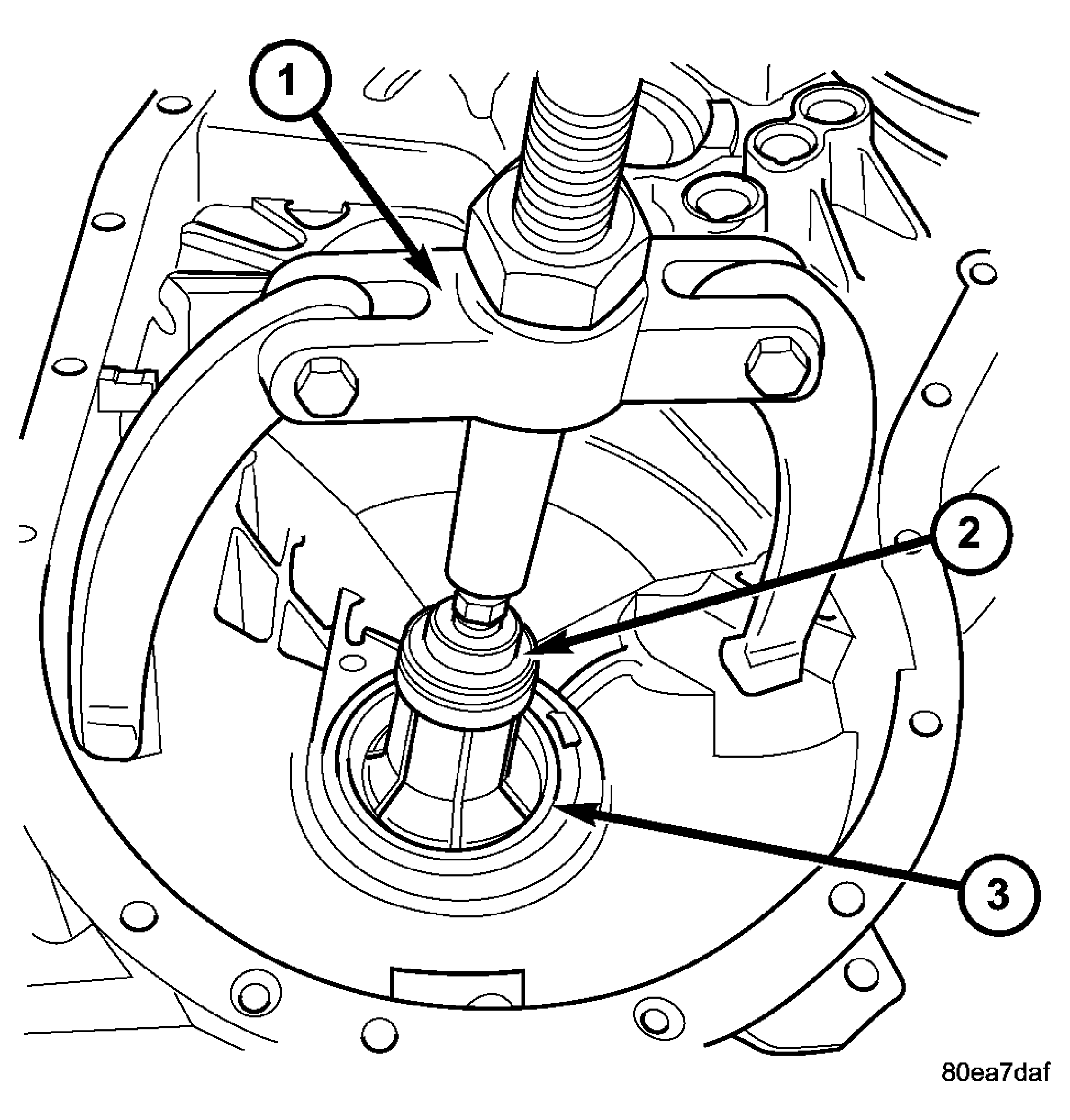

Fig 4: Differential Bearing Cup Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - BRACE TOOL 8915

2 - REMOVER 8913

3 - DIFFERENTIAL BEARING CUP

Using Tools 8915 (1) and Remover 8913 (2), remove differential bearing cup (3) from clutch bellhousing. See Fig 4.

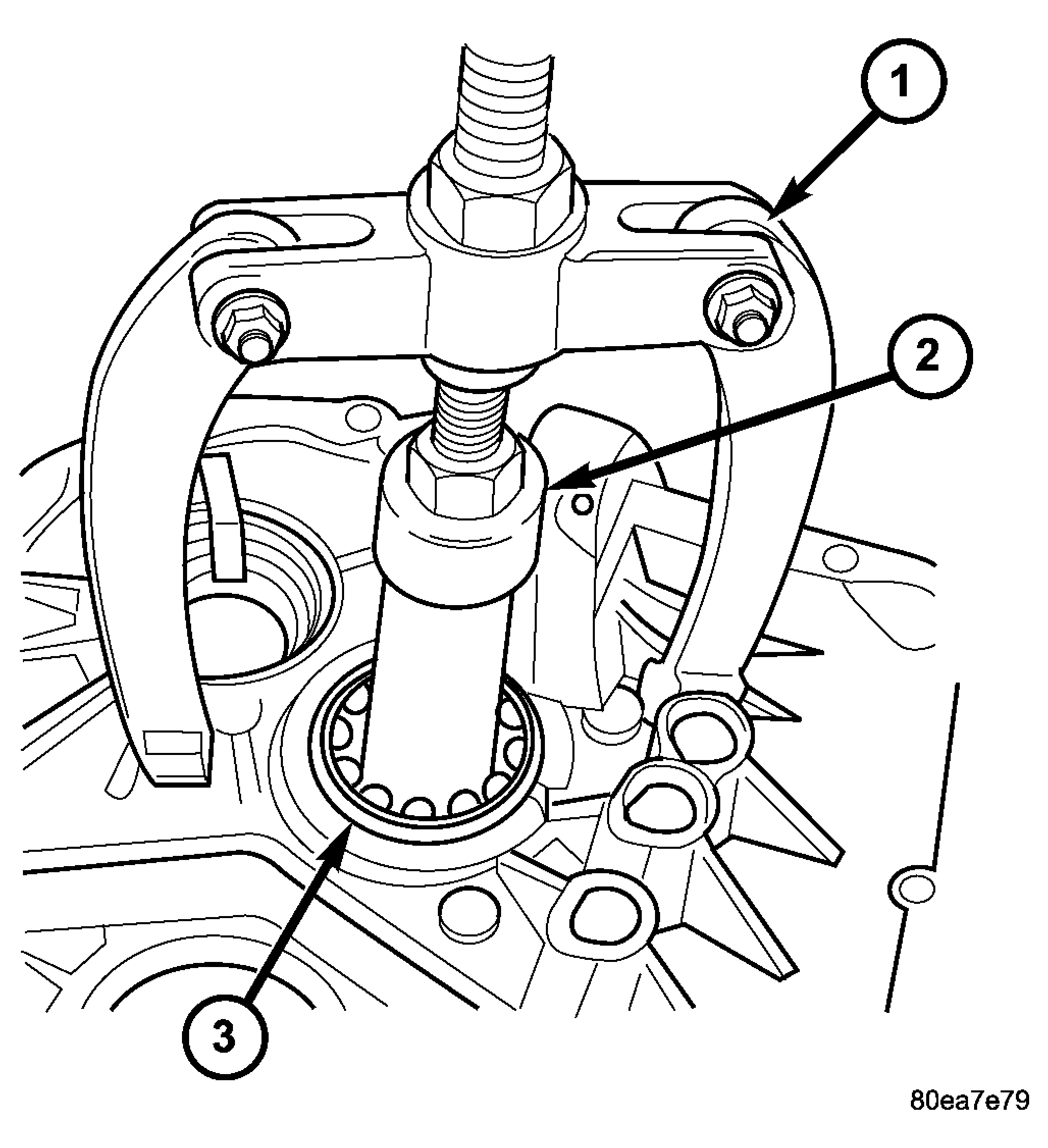

Fig 5: Input Shaft Bearing Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - BRACE TOOL 8915

2 - REMOVER 8912

3 - INPUT SHAFT BEARING

Using Brace Tool 8915 (1) and Remover 8912 (2), remove input shaft roller bearing (3) from clutch bellhousing. See Fig 5.

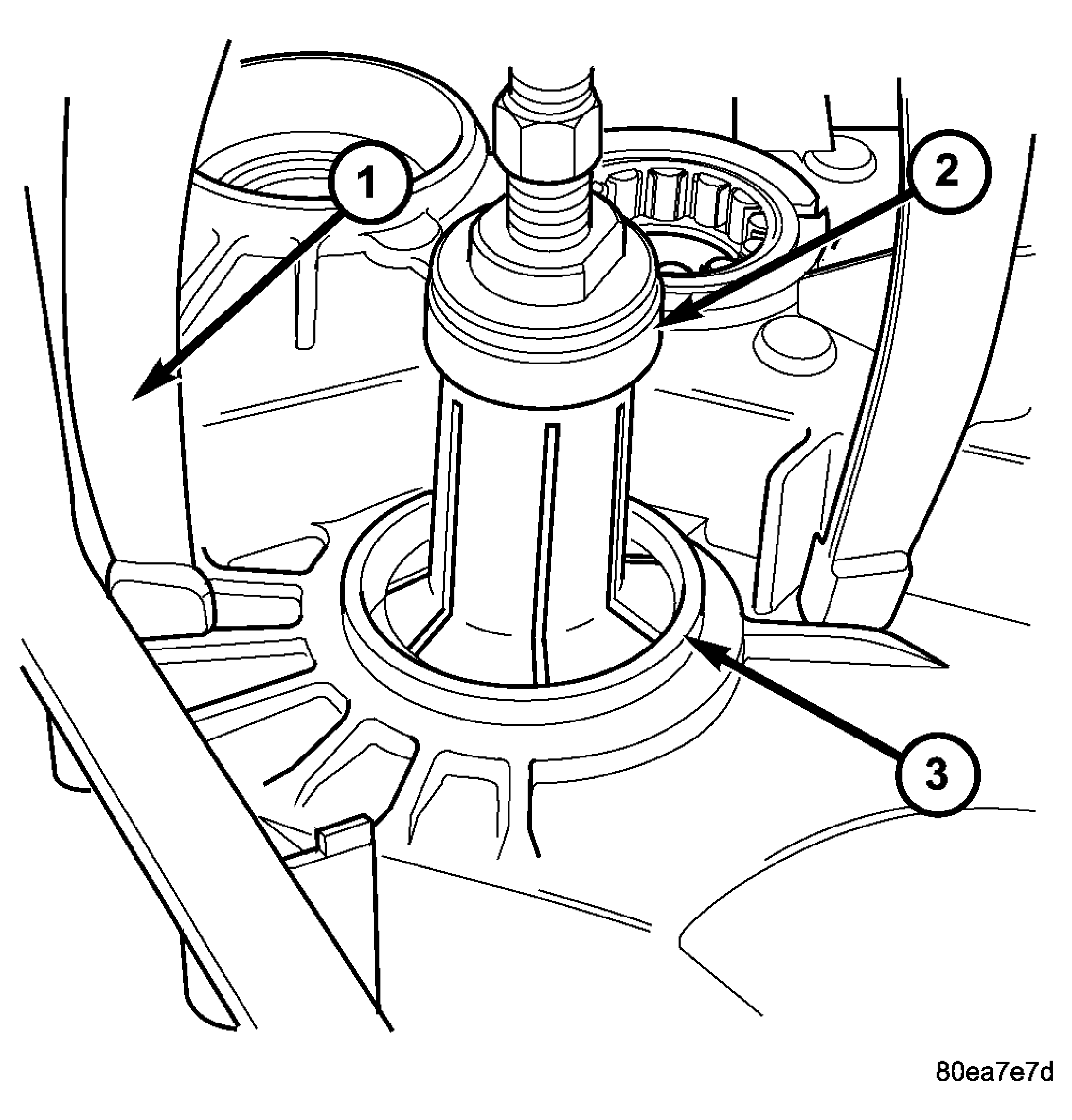

Fig 6: Output Shaft Bearing Race Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - BRACE TOOL 8915

2 - REMOVER 8913

3 - OUTPUT SHAFT BEARING RACE

Using Brace Tool 8915 (1) Remover 8913 (2), remove output shaft bearing race (3). See Fig 6. from clutch bellhousing.
