Seal-Oil Crankshaft Front: Removal

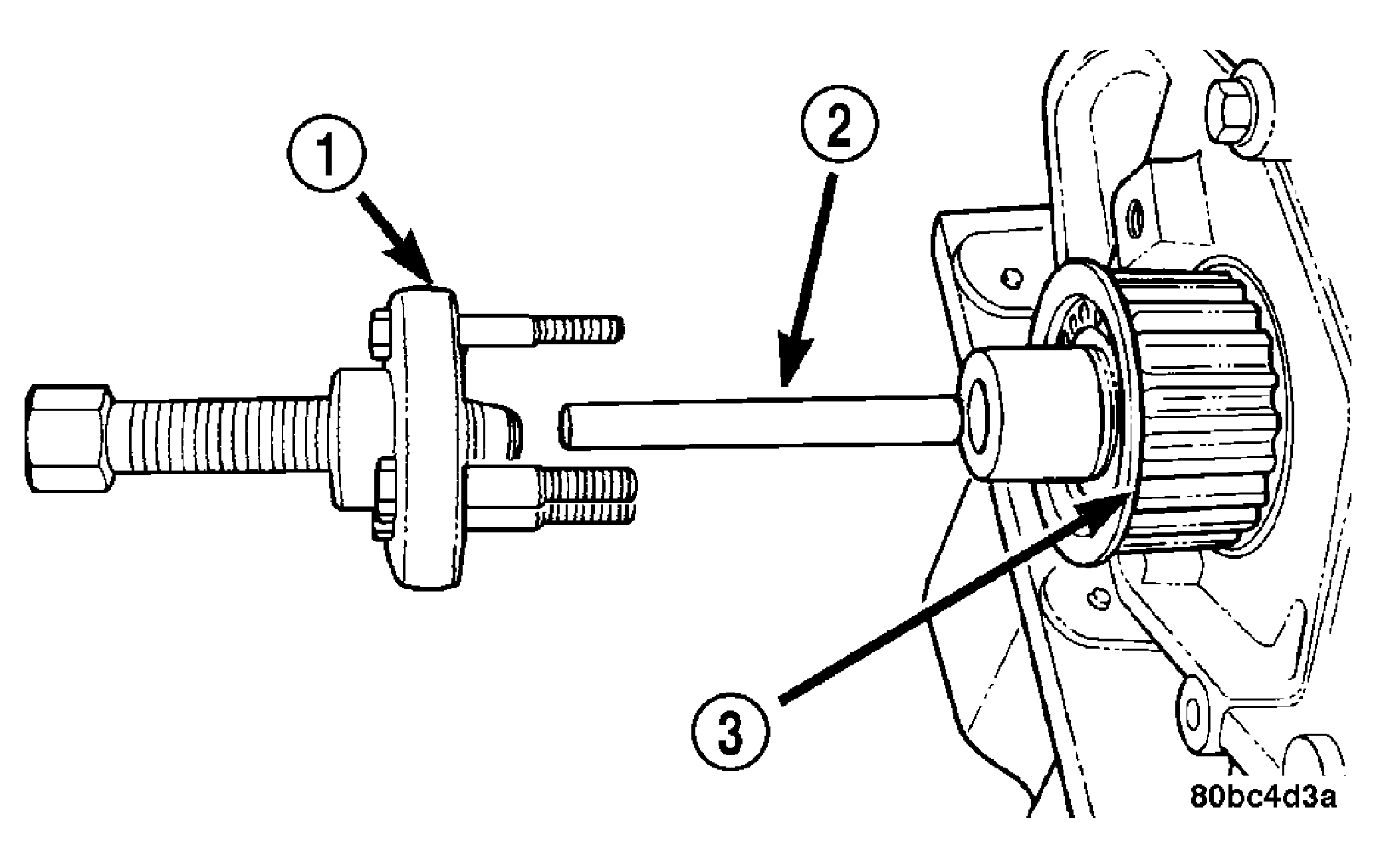

Fig 1: Crankshaft Sprocket - Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - CRANKSHAFT SPROCKET REMOVER 6793

2 - CRANKSHAFT SPROCKET REMOVER INSERT C-4685-C2

3 - CRANKSHAFT SPROCKET

Remove the crankshaft vibration damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL)
Remove timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL) .
Remove crankshaft sprocket (3) using Crankshaft Sprocket Remover 6793 (1) and Crankshaft Sprocket Remover Insert C-4685-C2 (2). See Fig 1.

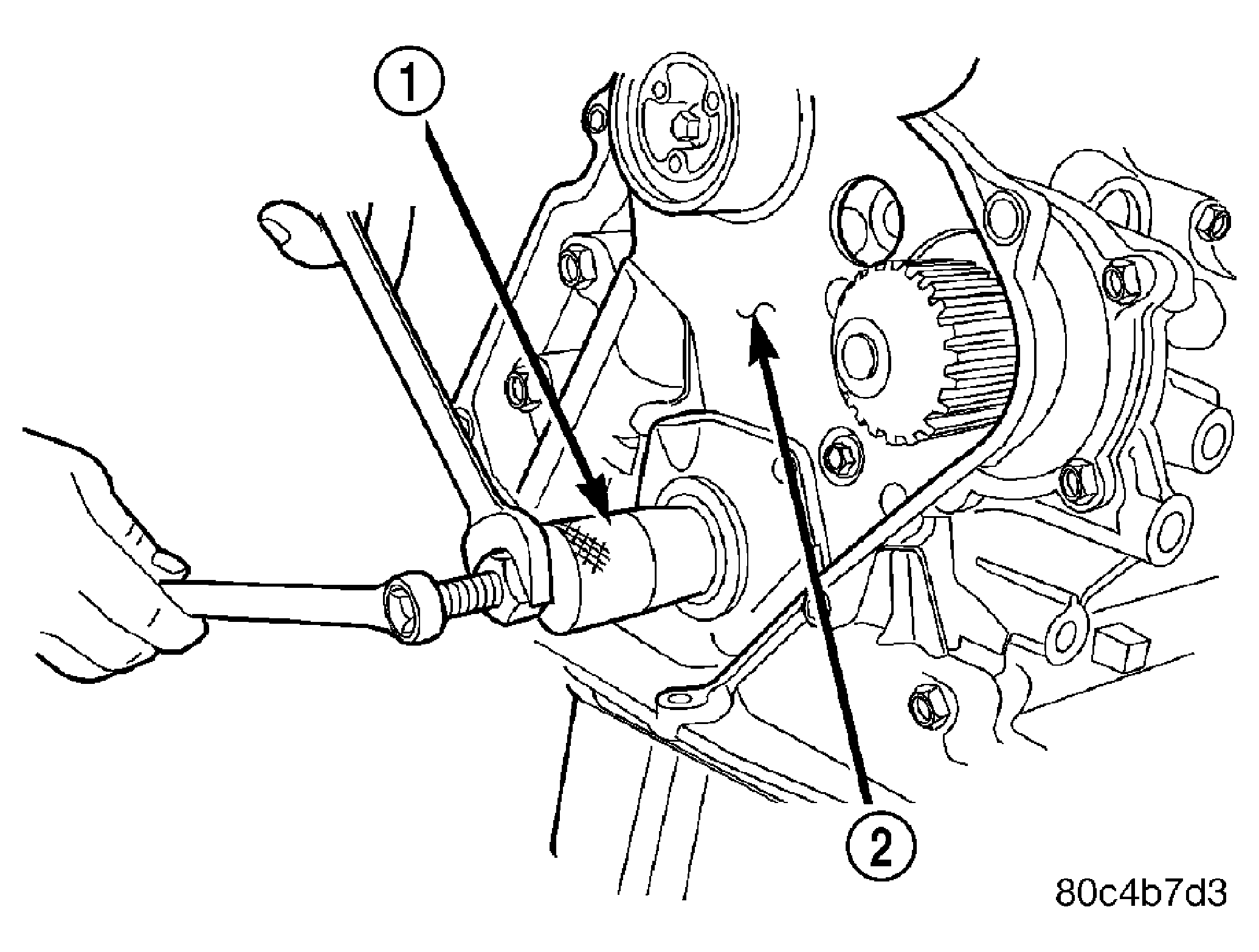

Fig 2: Front Crankshaft Oil Seal - Removal
Courtesy of DAIMLERCHRYSLER CORP.

1 - CRANKSHAFT FRONT SEAL REMOVER 6771

2 - REAR TIMING BELT COVER

CAUTION: Do not nick shaft seal surface or seal bore.
Use Crankshaft Front Seal Remover 6771 (1) to remove front crankshaft oil seal. See Fig 2. Be careful not to damage the seal surface of cover.
