2.4L DOHC Engine: Damper-Vibration: Removal

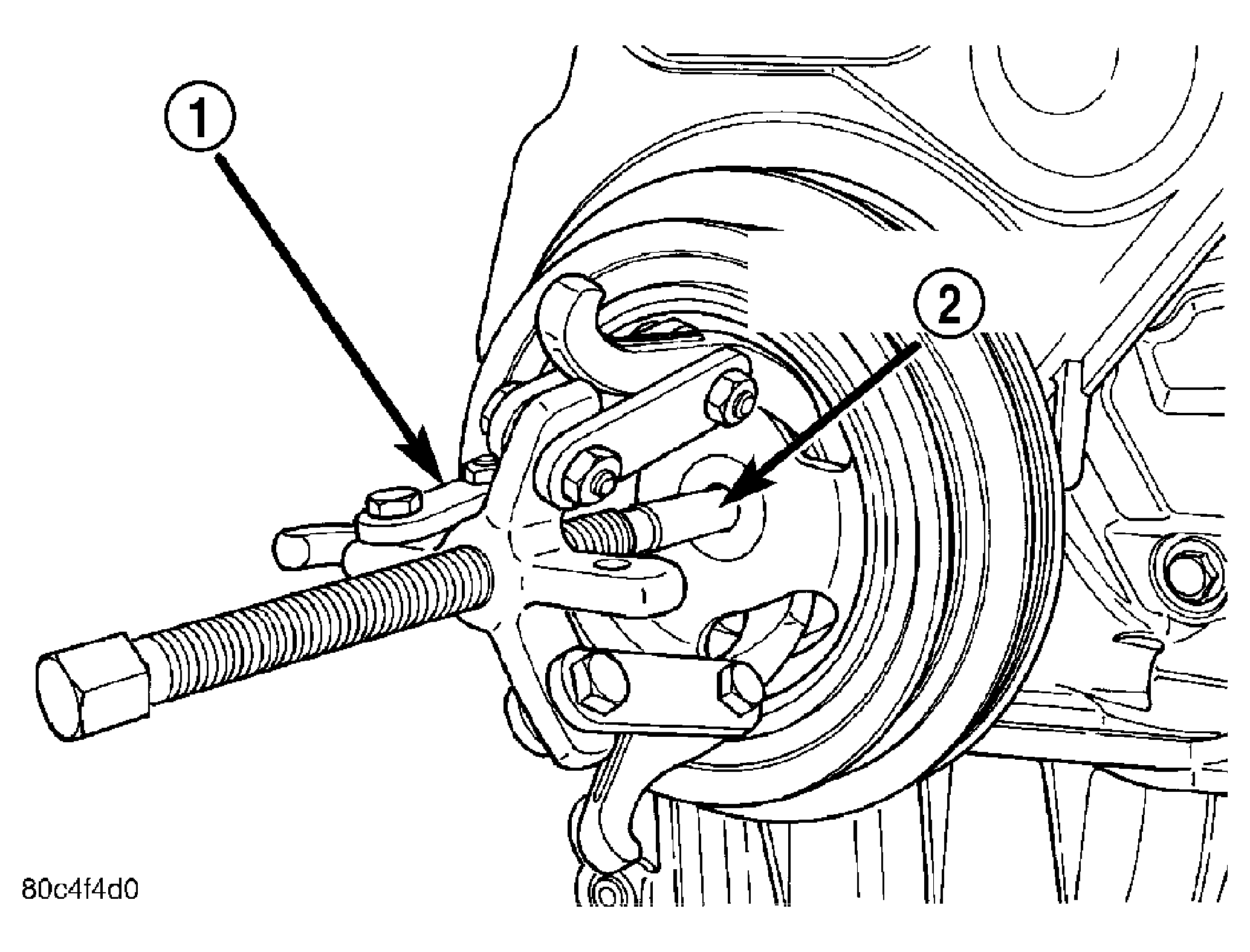

Fig 1: Crankshaft Damper-Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - PULLER 1026

2 - CRANKSHAFT DAMPER REMOVAL INSERT 6827A

1. Remove accessory drive belts (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
2. Remove lower splash shield.
3. Remove crankshaft damper bolt.
4. Remove damper by using Puller 1026 (1) and Crankshaft Damper Removal Insert 6827A (2). See Fig 1.
