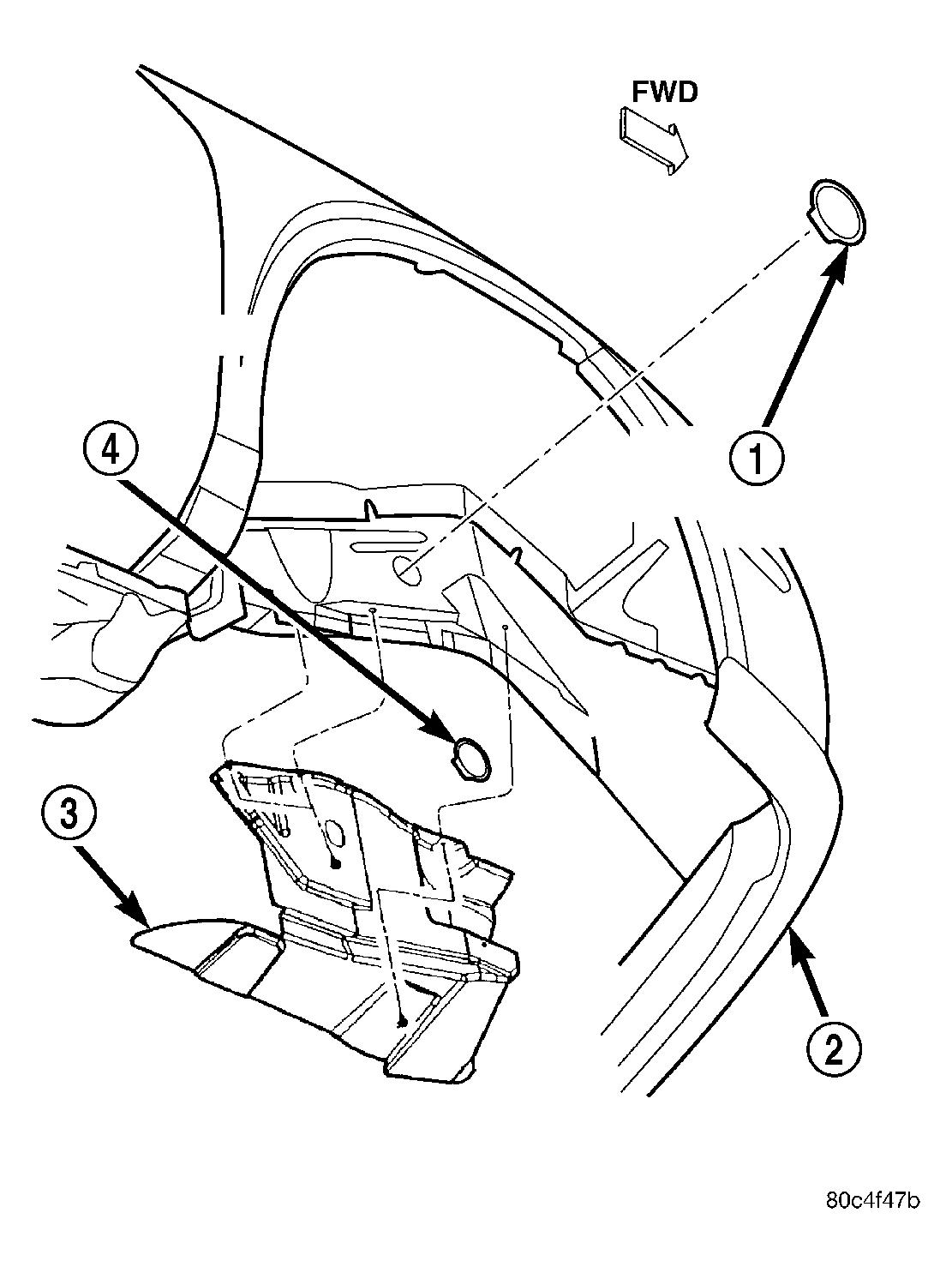

Front Cover - Lower

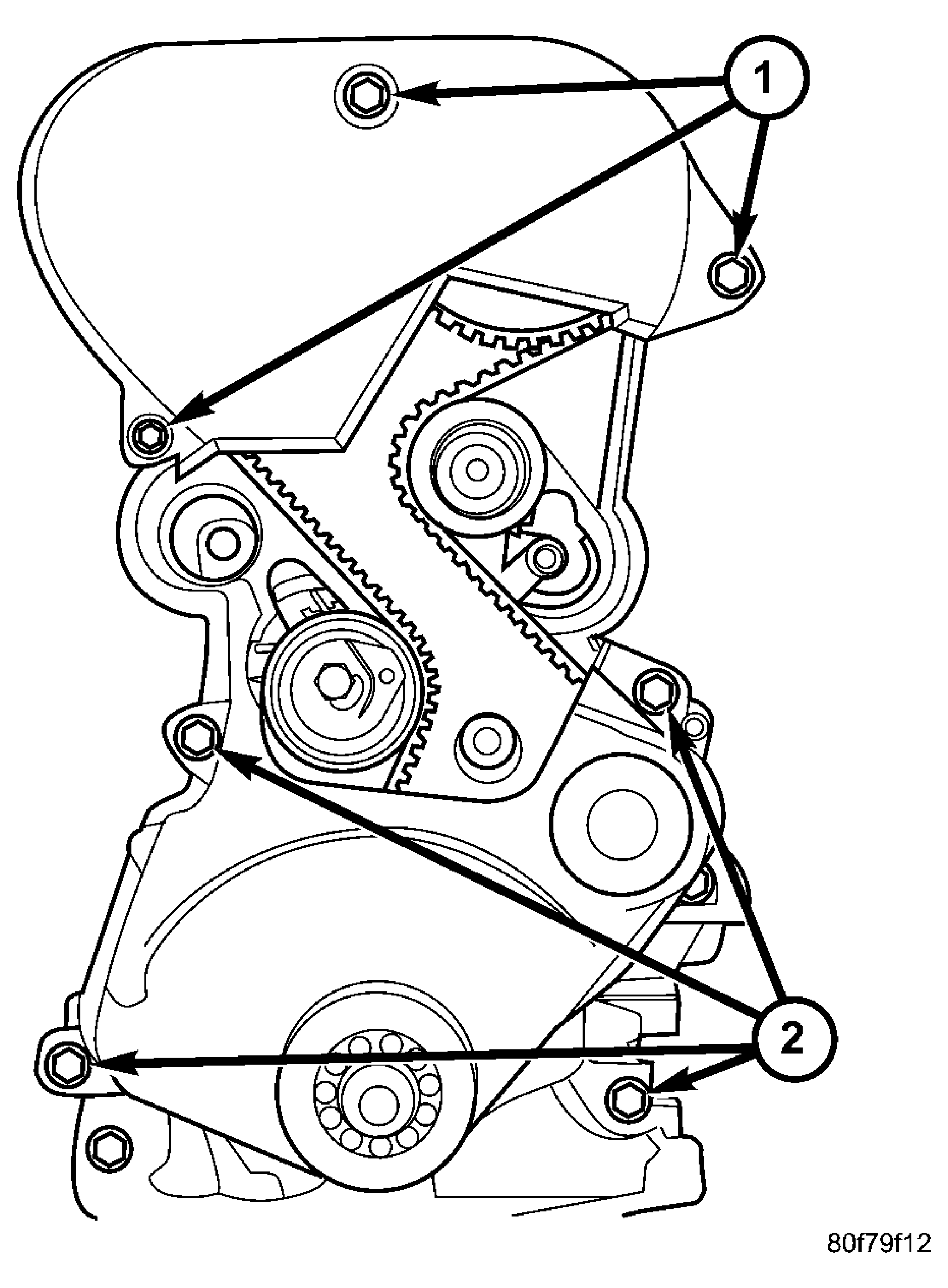

Fig 1: Front Timing Belt Covers

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER COVER FASTENERS

2 - LOWER COVER FASTENERS

Install lower timing belt cover and tighten fasteners (2) to 6 N.m (50 in. lbs.). See Figure.

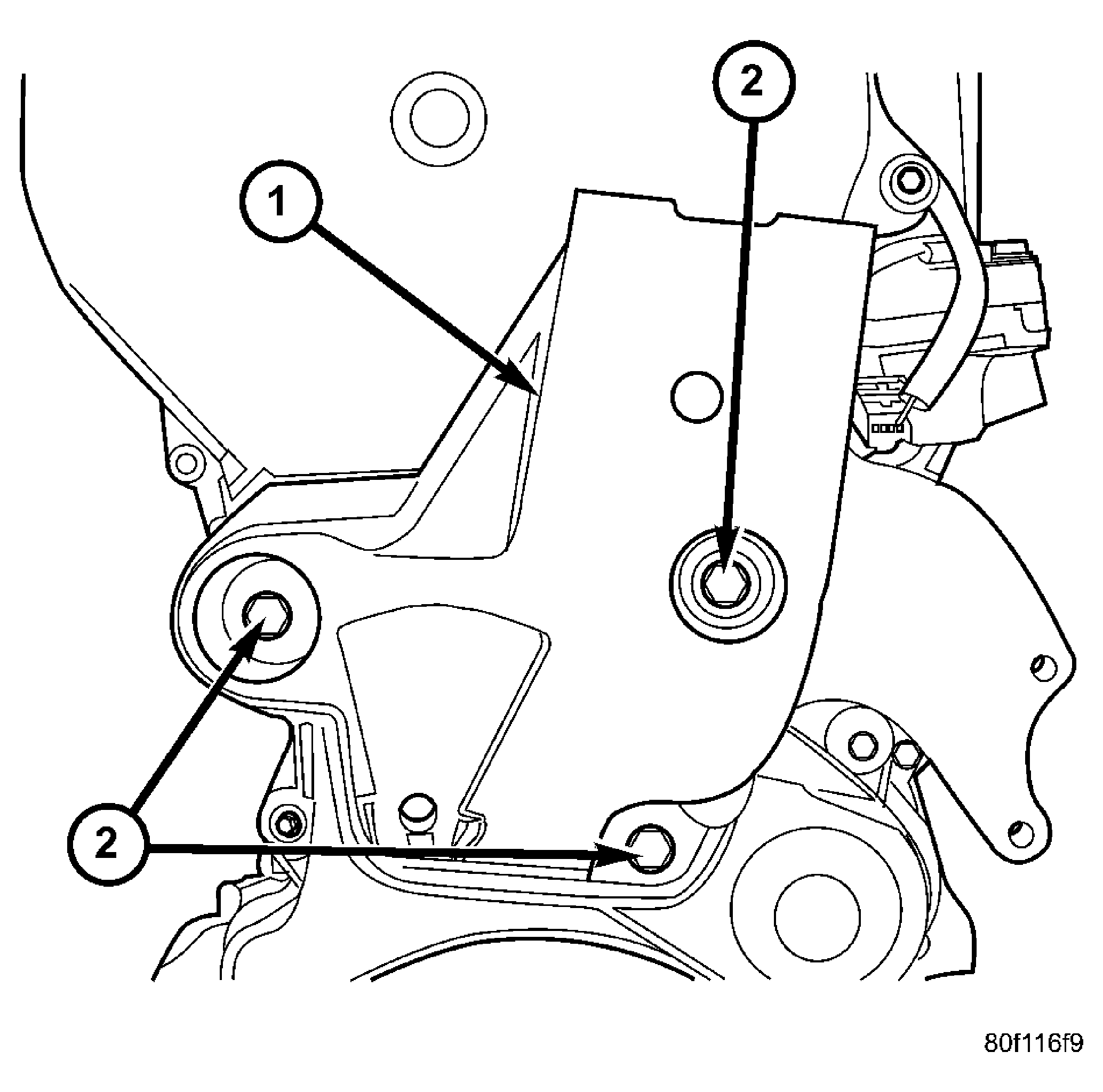

Fig 2: Engine Support Bracket
Courtesy of DAIMLERCHRYSLER CORP.

1 - ENGINE SUPPORT BRACKET

2 - BOLTS - 61 N.m (45 ft. lbs.)

Install right engine support bracket (1). See Fig 2. Ensure the power steering pump is properly located in mounting location on bracket. Tighten mount bracket bolts (2) to 61 N.m (45 ft. lbs.).

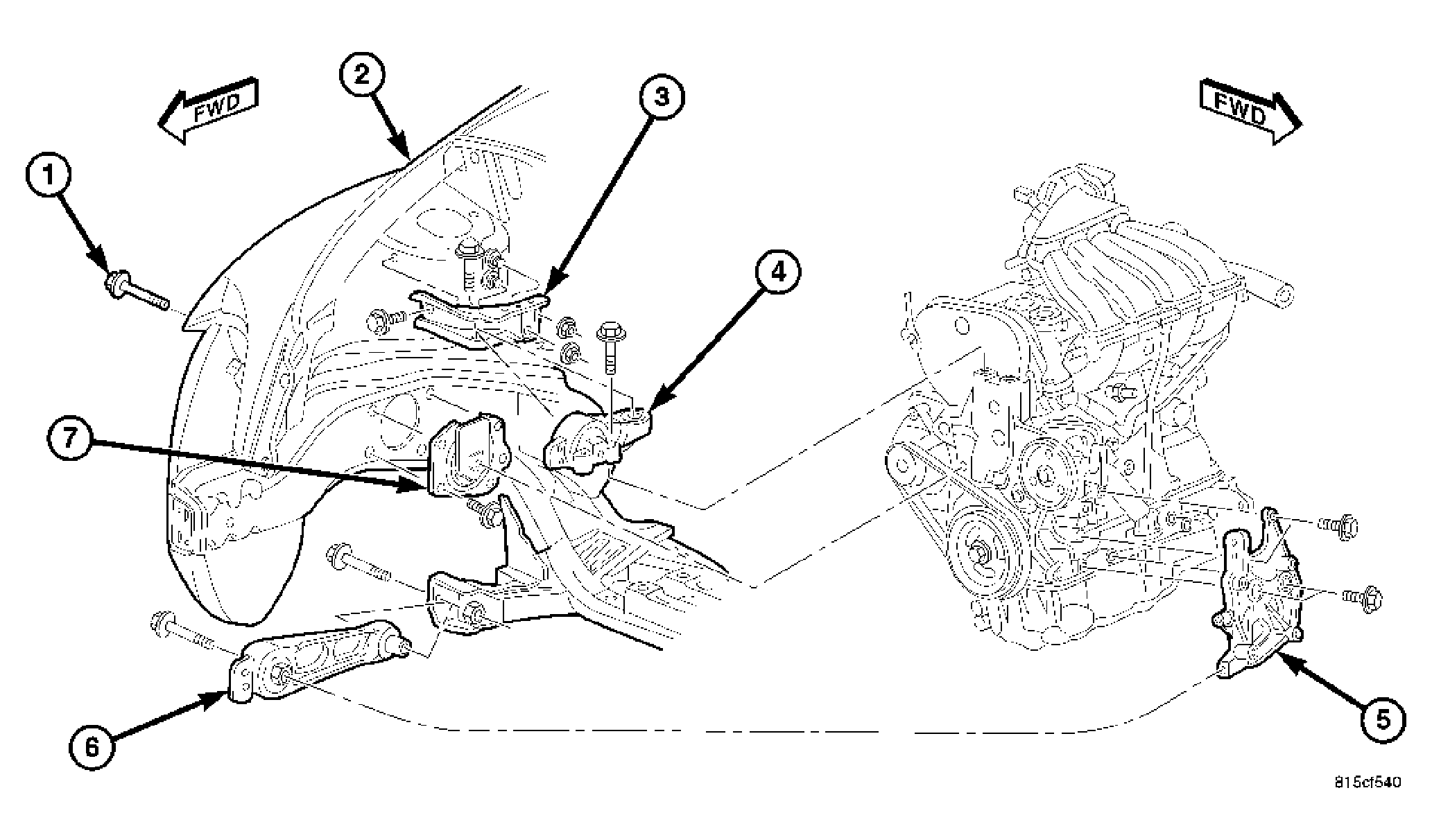

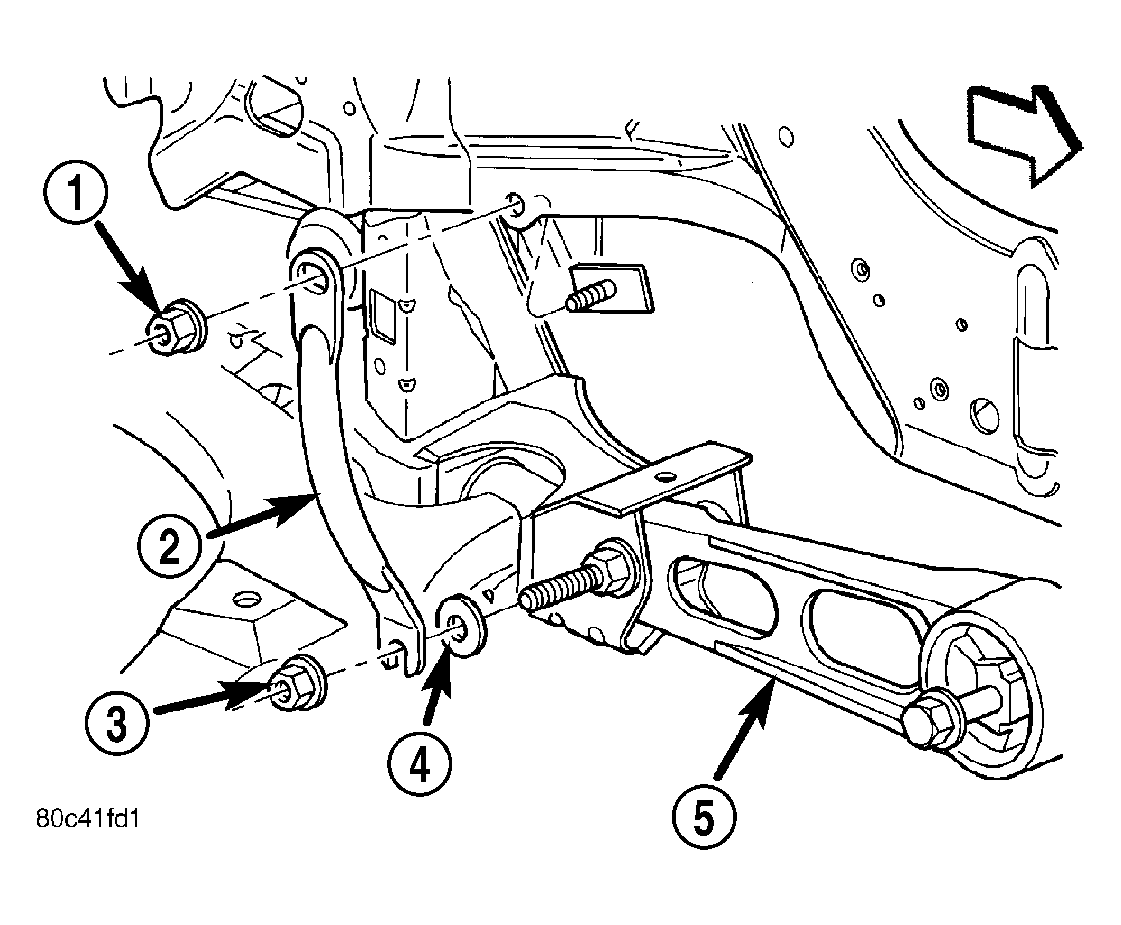

Fig 3: RIGHT MOUNT

Courtesy of DAIMLERCHRYSLER CORP.

1 - ENGINE MOUNT THROUGH BOLT

2 - RIGHT FENDER

3 - UPPER TORQUE STRUT BRACKET

4 - UPPER TORQUE STRUT

5 - LOWER TORQUE STRUT BRACKET

6 - LOWER TORQUE STRUT

7 - RIGHT ENGINE MOUNT

Lower engine into mounting position and install right engine mount through bolt (1). Tighten bolt to 118 N.m (87 ft. lbs.).
Install power steering pump and bracket.
Install upper radiator closure panel (Refer to BODY/EXTERIOR/RADIATOR CLOSURE PANEL- INSTALLATION) .
Install torque strut bracket (3) to strut tower.
Connect ground strap to bracket.
Install upper torque strut (4).

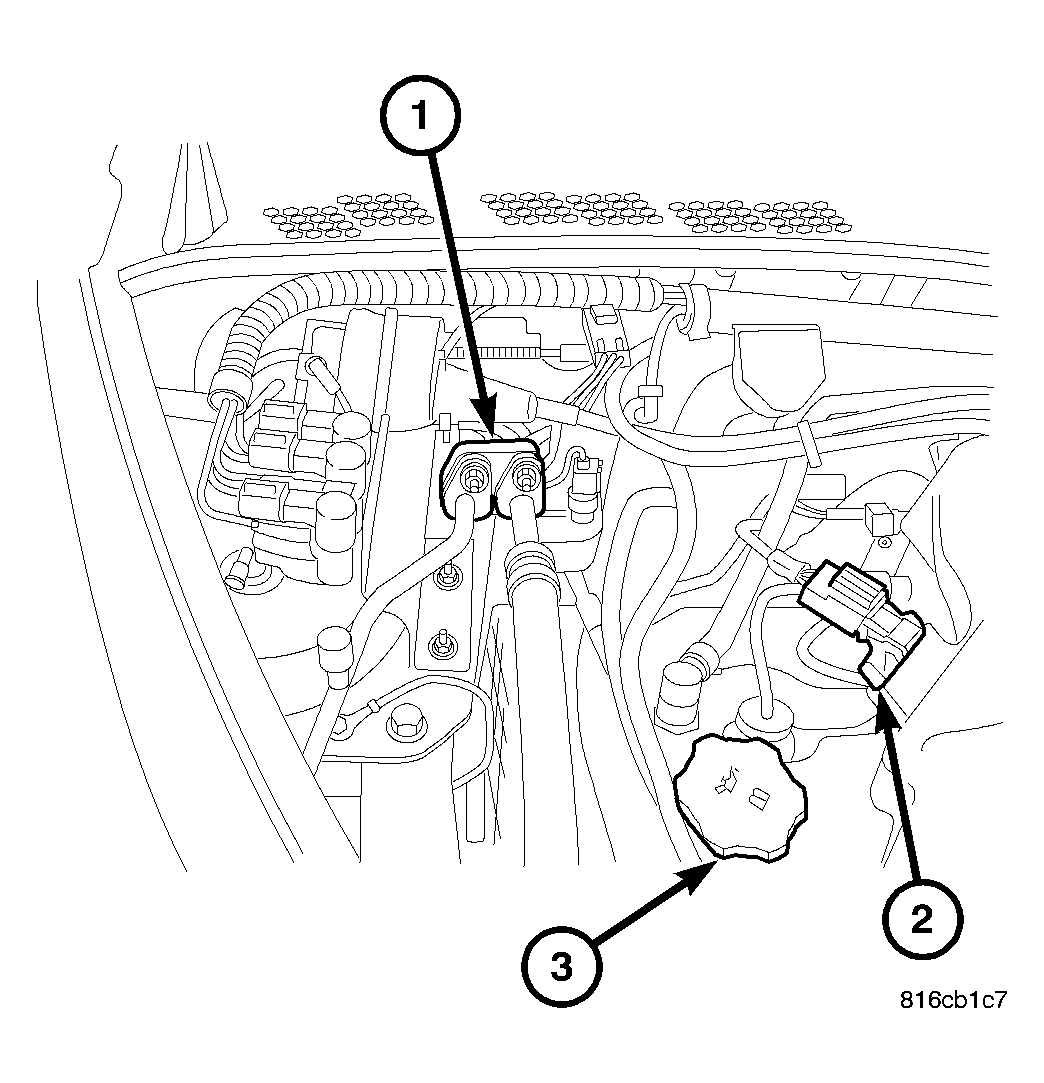

Fig 4: A/C LINES
Courtesy of DAIMLERCHRYSLER CORP.
Connect A/C lines (1) and charge A/C system (Refer to the appropriate procedures under PLUMBING - STANDARD PROCEDURE ).
Raise vehicle.

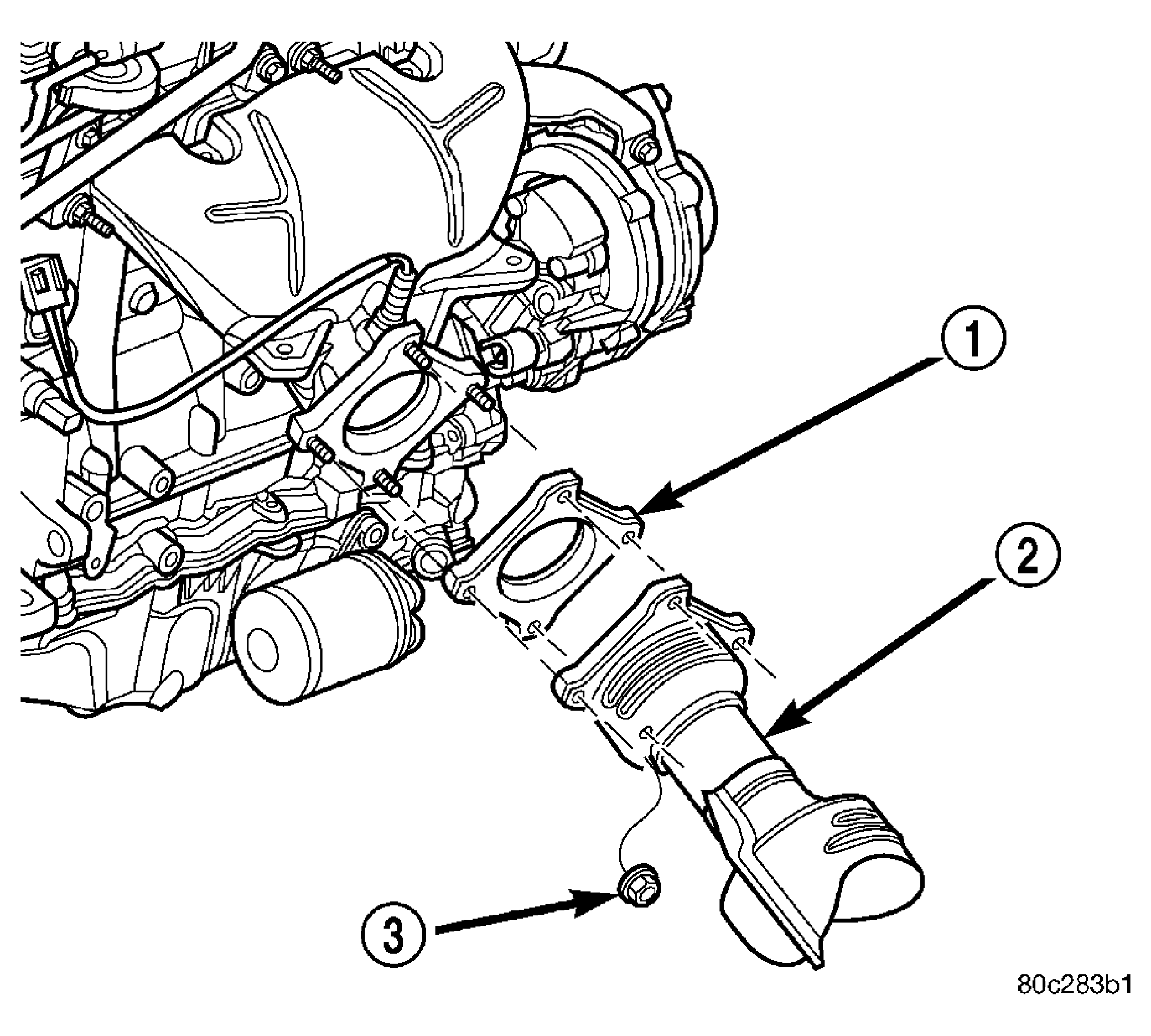

Fig 5: Exhaust Manifold To Pipe Connection
Courtesy of DAIMLERCHRYSLER CORP.

1 - GASKET

2 - CATALYTIC CONVERTER

3 - NUT
Connect catalytic converter (2) to manifold.
Connect A/C pressure switch connector.

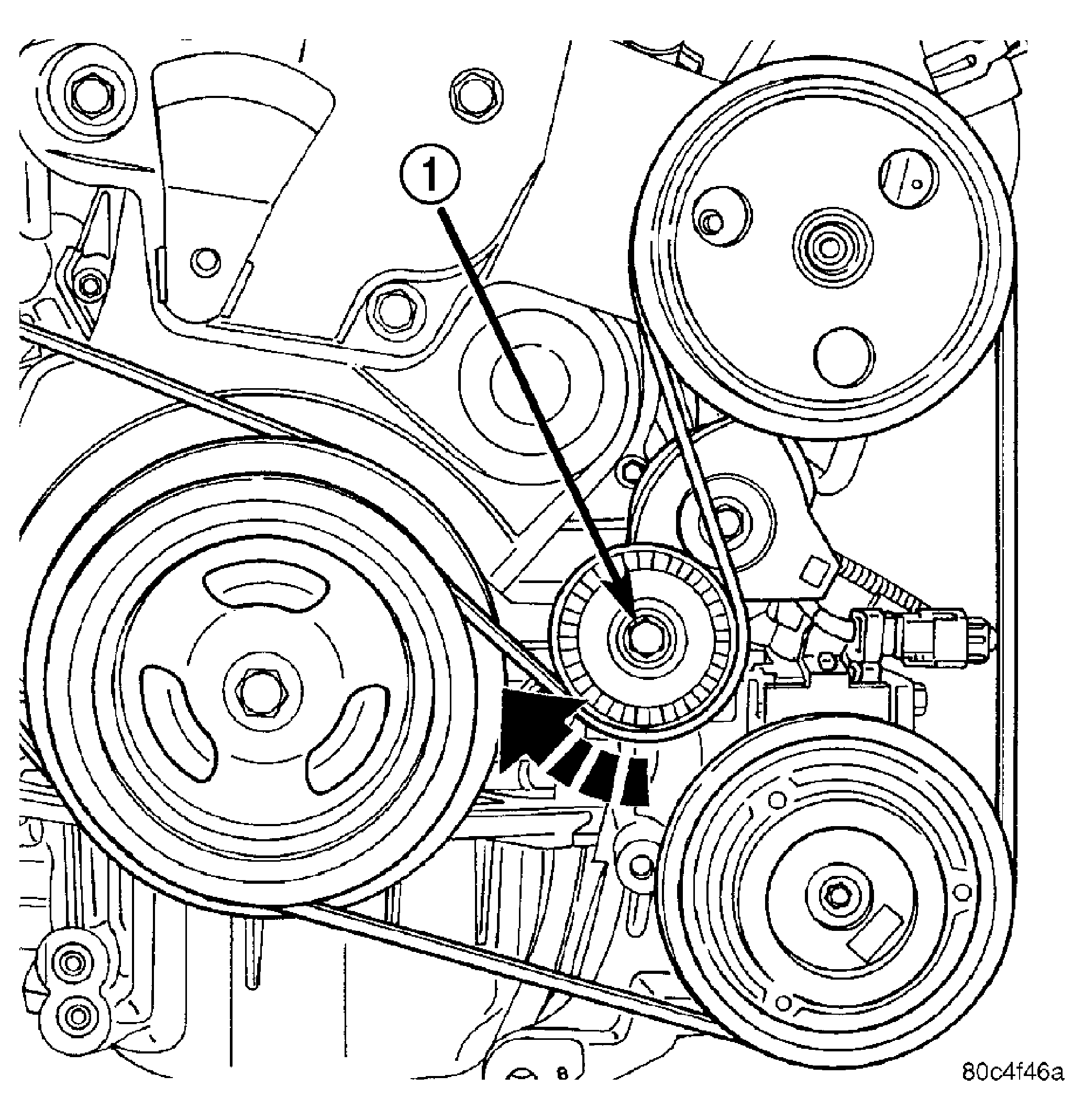

Fig 6: Accessory Belt-Removing
Courtesy of DAIMLERCHRYSLER CORP.

1 - BOLT
Install crankshaft damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLATION) .
