2.4L DOHC Engine: Damper-Vibration: Installation

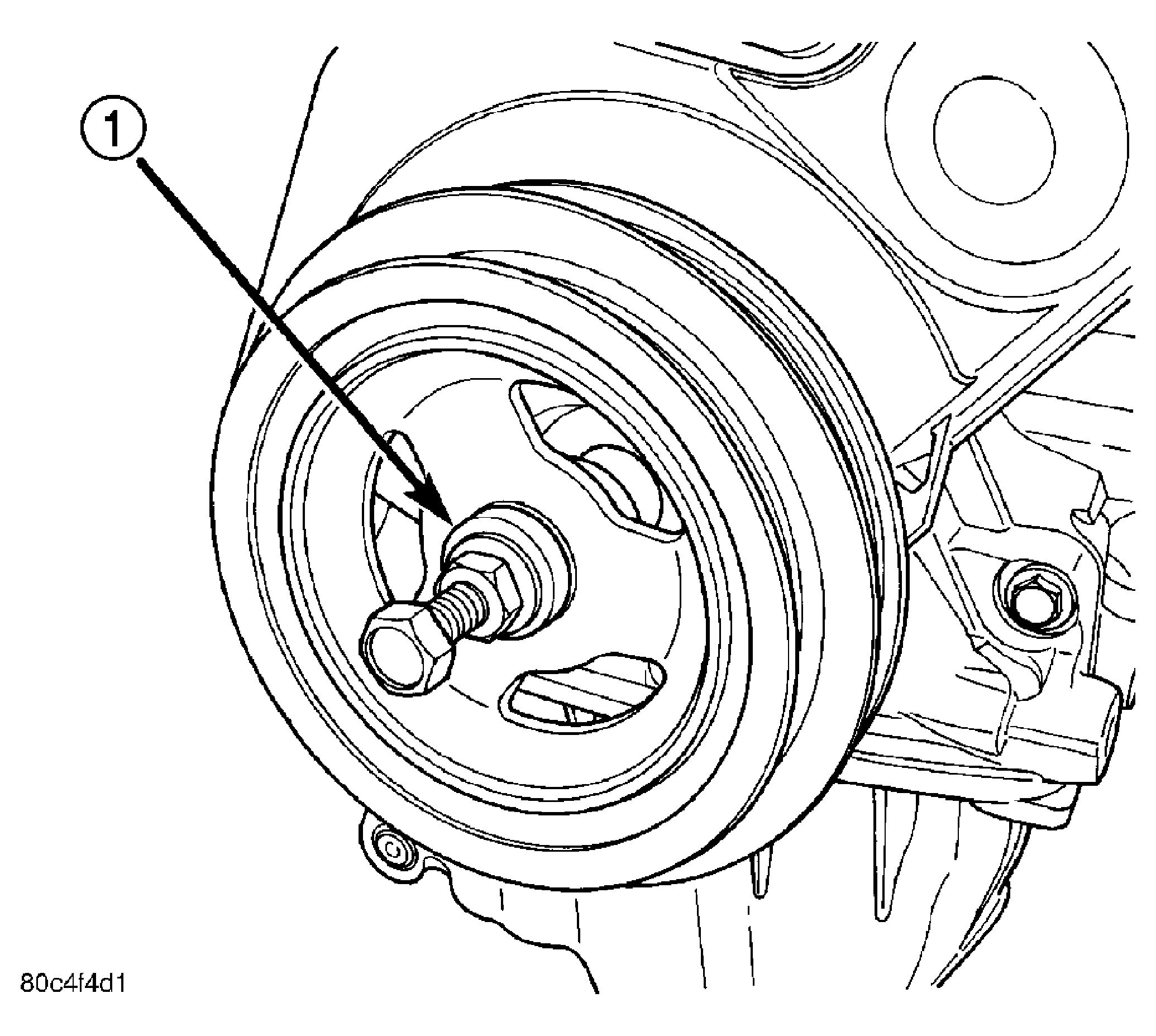

Fig 1: Crankshaft Damper-Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - CRANKSHAFT DAMPER/SPROCKET INSTALLER 6792

1. Install crankshaft damper using Crankshaft Damper/Sprocket Installer 6792 (1) (M12 1.75 x 150 mm bolt, washer, thrust bearing and nut).
   NOTE: Lubricate the threads of the M12 1.75 x 150 mm bolt using Mopar® Nickel Anti-seize Compound or equivalent, before beginning to press the damper on.
2. Remove Crankshaft Damper/Sprocket Installer 6792 (1).
3. Apply Mopar® Lock & Seal Adhesive (Medium Strength Threadlocker) to crankshaft damper bolt and tighten to 136 N.m (100 ft. lbs.). See Fig 1.
4. Install accessory drive belts (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
