Adjusters-Hydraulic Lash: Removal

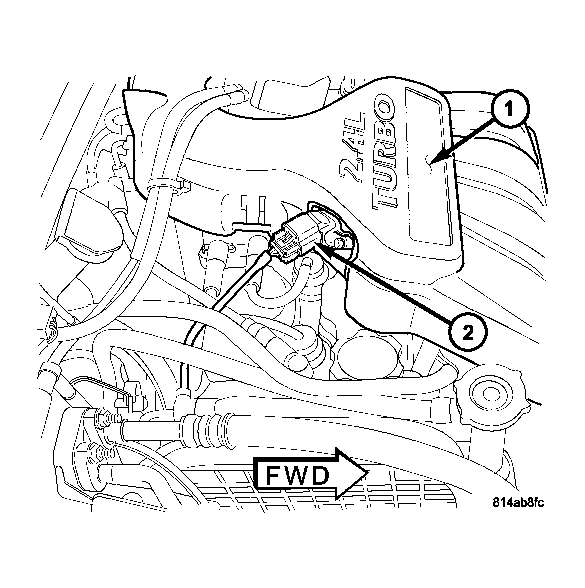

Fig 1: INTAKE COVER

Courtesy of DAIMLERCHRYSLER CORP.

1 - INTAKE MANIFOLD COVER

2 - MAP SENSOR

Remove intake manifold cover (1).
Remove upper intake manifold.
NOTE: This procedure is for in-vehicle service with camshafts installed.
Remove cylinder head cover, (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) - REMOVAL) .

Fig 2: Hydraulic Lash Adjuster
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: If reusing, mark each rocker arm and each hydraulic lash adjuster for reassembly in original position. Lash adjusters are serviced as an assembly.
Remove rocker arm (Refer to ENGINE/CYLINDER HEAD/ROCKER ARMS - REMOVAL) .
Remove hydraulic lash adjuster. See Fig 2.
Repeat removal procedure for each hydraulic lash adjuster.
