Adjusters-Hydraulic Lash: Installation

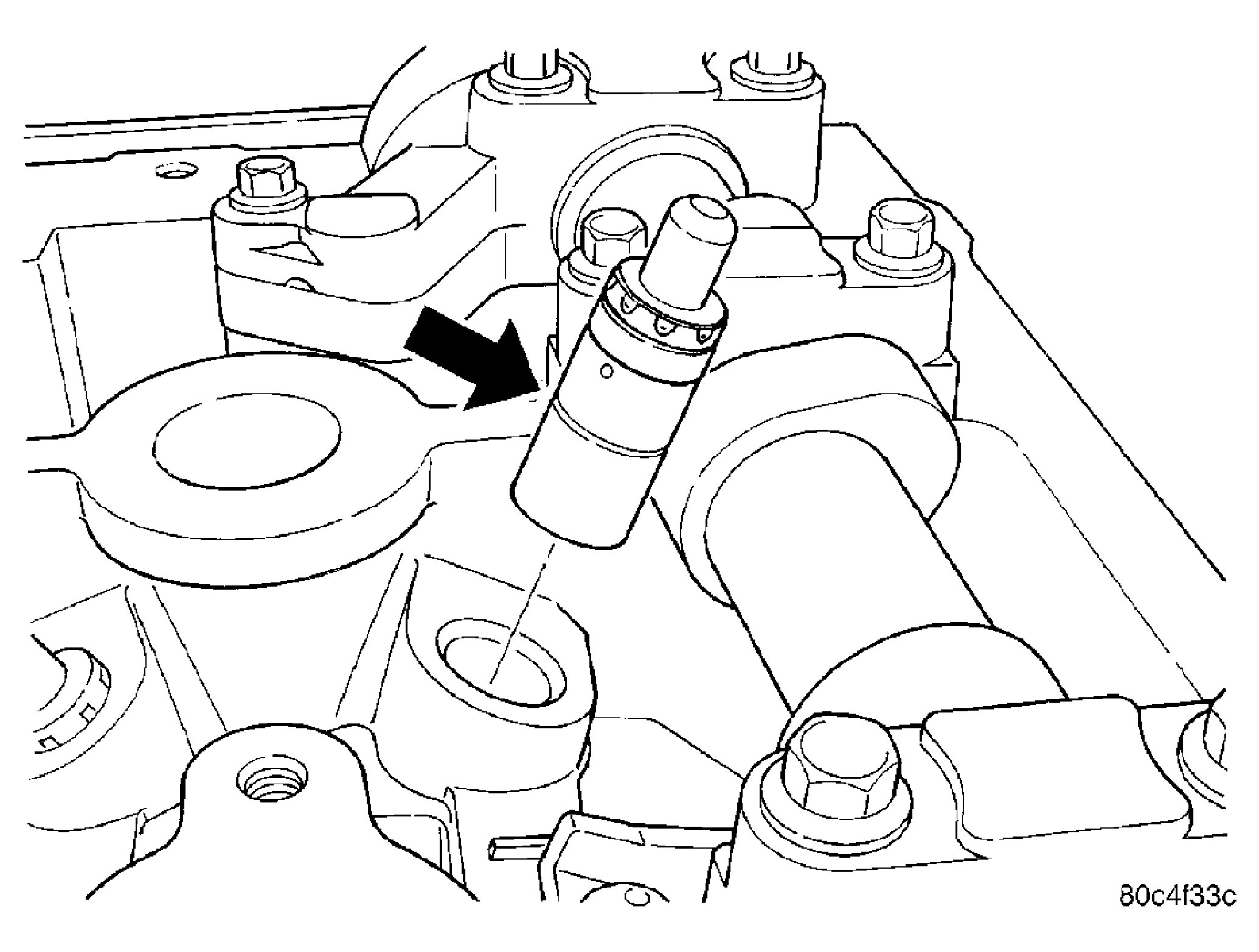

Fig 1: Hydraulic Lash Adjuster

Courtesy of DAIMLERCHRYSLER CORP.

1. Install hydraulic lash adjuster. See Fig 1. Ensure the lash adjusters are at least partially full of engine oil. This is indicated by little or no plunger travel when the lifter is depressed.
2. Install rocker arm (Refer to ENGINE/CYLINDER HEAD/ROCKER ARMS - INSTALLATION) .
3. Repeat installation procedure for each hydraulic lash adjuster.

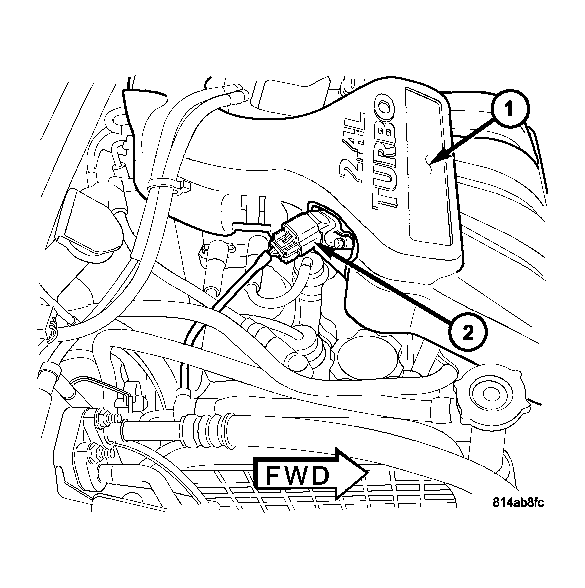

   Fig 2: INTAKE COVER

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - INTAKE MANIFOLD COVER

   2 - MAP SENSOR

4. Install cylinder head cover, (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) - INSTALLATION) .
5. Install upper intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION) .
6. Install intake manifold cover (1).
