2.4L DOHC Engine: Arms-Rocker: Installation

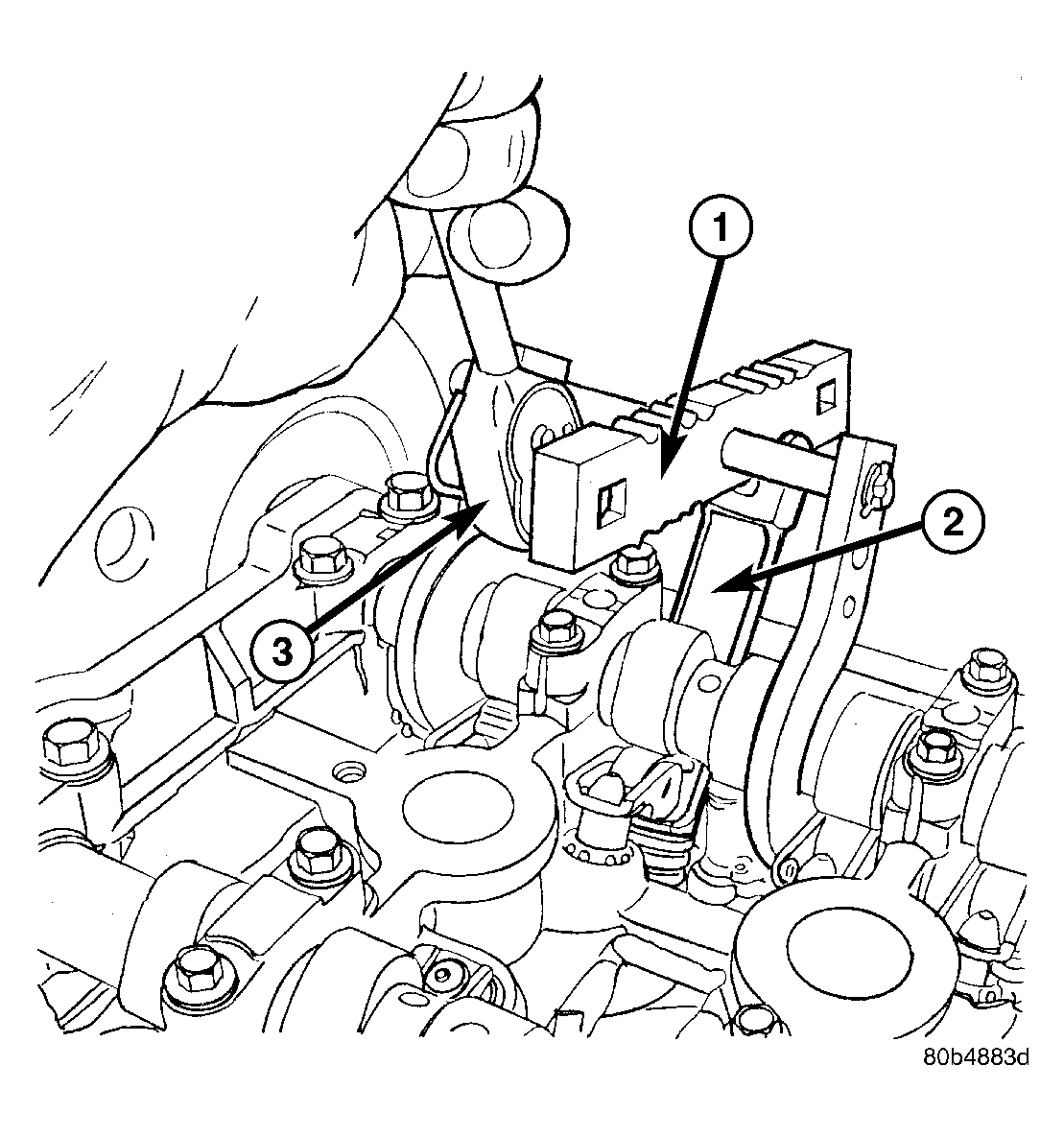

Fig 1: Rocker Arm - Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - VALVE SPRING COMPRESSOR 8215A

2 - ADAPTER 8436

3 - 3/8" DRIVE RATCHET

1. Lubricate rocker arm with clean engine oil.
2. Using Valve Spring Compressor 8215A (1) and Adapter 8436 (2) slowly depress valve assembly until rocker arm can be installed on the hydraulic lifter and valve stem. See Fig 1.
3. Repeat installation procedure for each rocker arm.
4. Install spark plugs.
5. Install cylinder head cover (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) - INSTALLATION)  .
