Hands Free Module: Installation

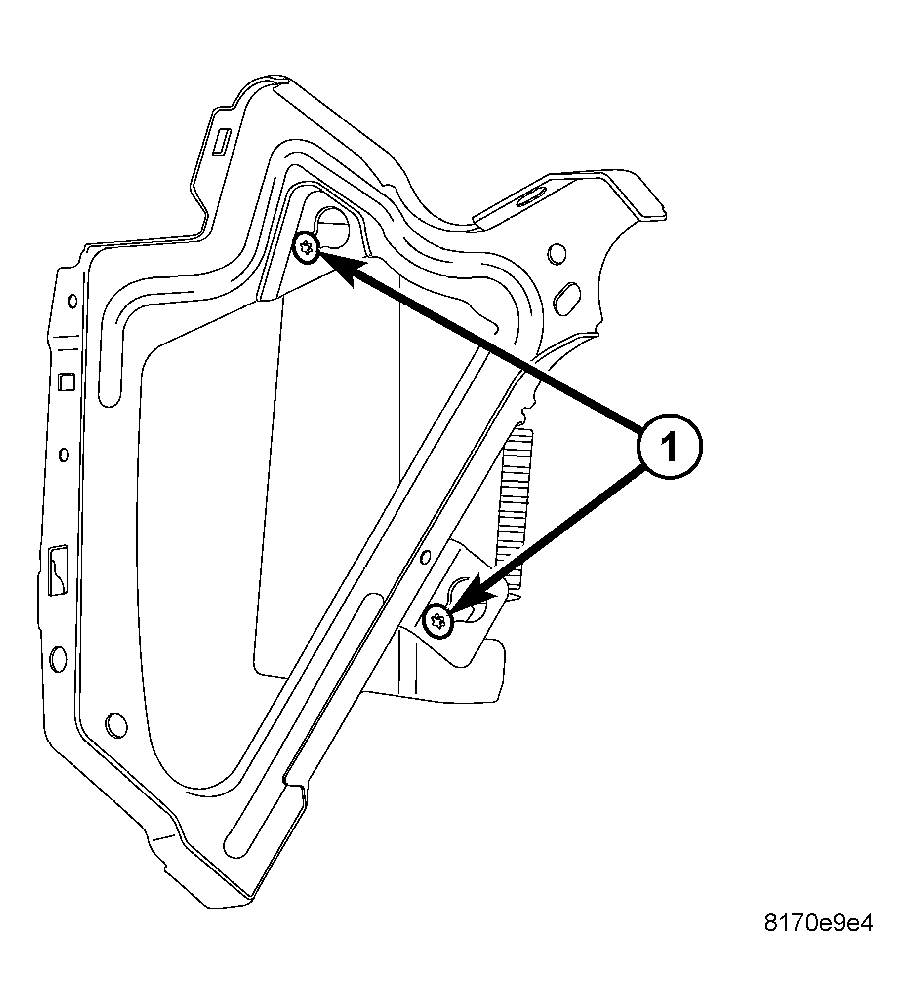

Fig 1: Hands Free Module Fasteners
GC0043644Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect electrical harness connector and position module.
  2. Install module mounting fasteners.
  3. Install the steering column opening cover. (Refer to BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER - INSTALLATION)
  4. Connect battery negative cable.
