Interior & Exterior (1 Of 2): DECKLID/Hatch/Liftgate/Tailgate: Latch: Installation
Courtesy of DAIMLERCHRYSLER CORP.

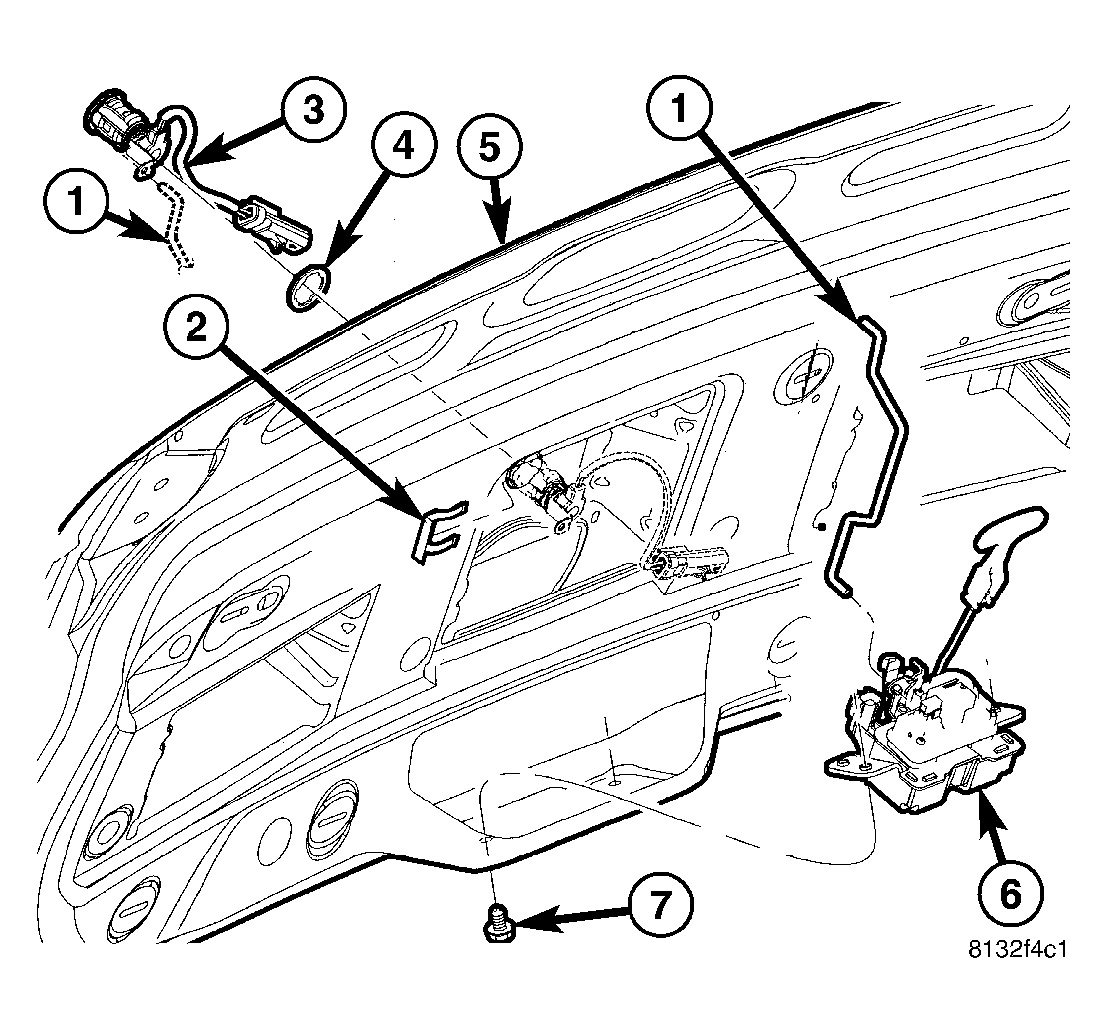

- Position the decklid latch (6) into the decklid (5) and install the two retaining bolts (7). Tighten the bolts securely.
- Connect the lock cylinder link (1) to the latch and install the retainer clip. Make sure the retainer clip is fully engaged.
- Connect the decklid latch wire harness to the body wire harness.
- Reconnect the negative battery cable.
- Verify decklid lock cylinder and latch operation.
- Install the decklid trim panel
(Refer to BODY/DECKLID/PANEL-TRIM - INSTALLATION)
.
