Interior & Exterior (1 Of 2): DECKLID/Hatch/Liftgate/Tailgate: Panel-Trim: Installation

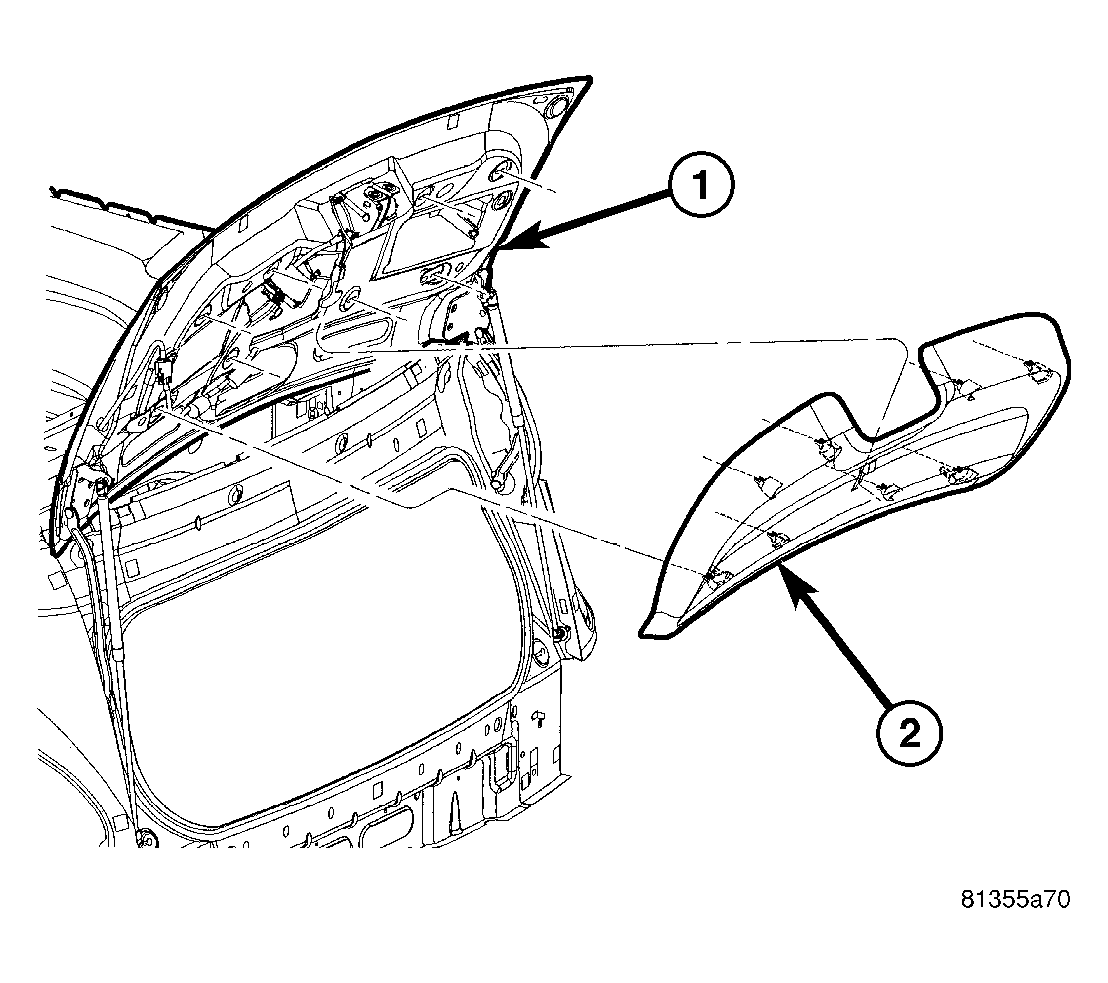

Fig 1: Decklid Trim Panel

Courtesy of DAIMLERCHRYSLER CORP.

1. Position the trim panel (2) to the decklid (1).
2. Engage the snap retainers that secure the trim panel to the decklid. Make sure the retainers are fully engaged.
3. Install the emergency release handle into the opening in the trim panel.
4. Verify decklid operation.
