Interior & Exterior (1 Of 2): DECKLID/Hatch/Liftgate/Tailgate: Bezel-Handle: Installation

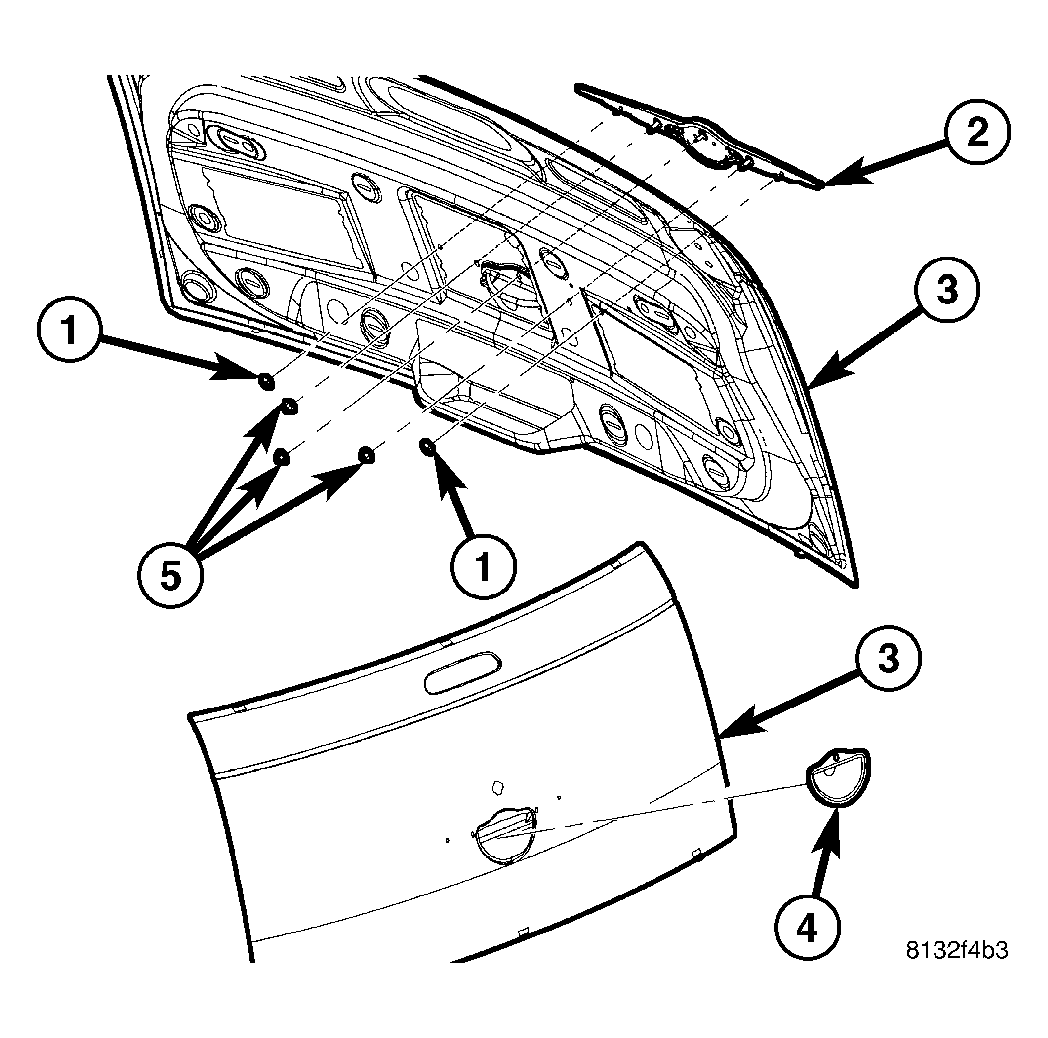

Fig 1: Decklid

Courtesy of DAIMLERCHRYSLER CORP.

1. Position the handle bezel (4) to the decklid (3) and install the three retaining nuts (5). Tighten the nuts securely.
2. Position the emblem (2) to the decklid and install the two retaining nuts (1). Tighten the nuts securely.
3. Install the decklid trim panel (Refer to BODY/DECKLID/PANEL-TRIM - INSTALLATION)  .
4. Close the decklid.
