Rear Bumper Reinforcement: Removal

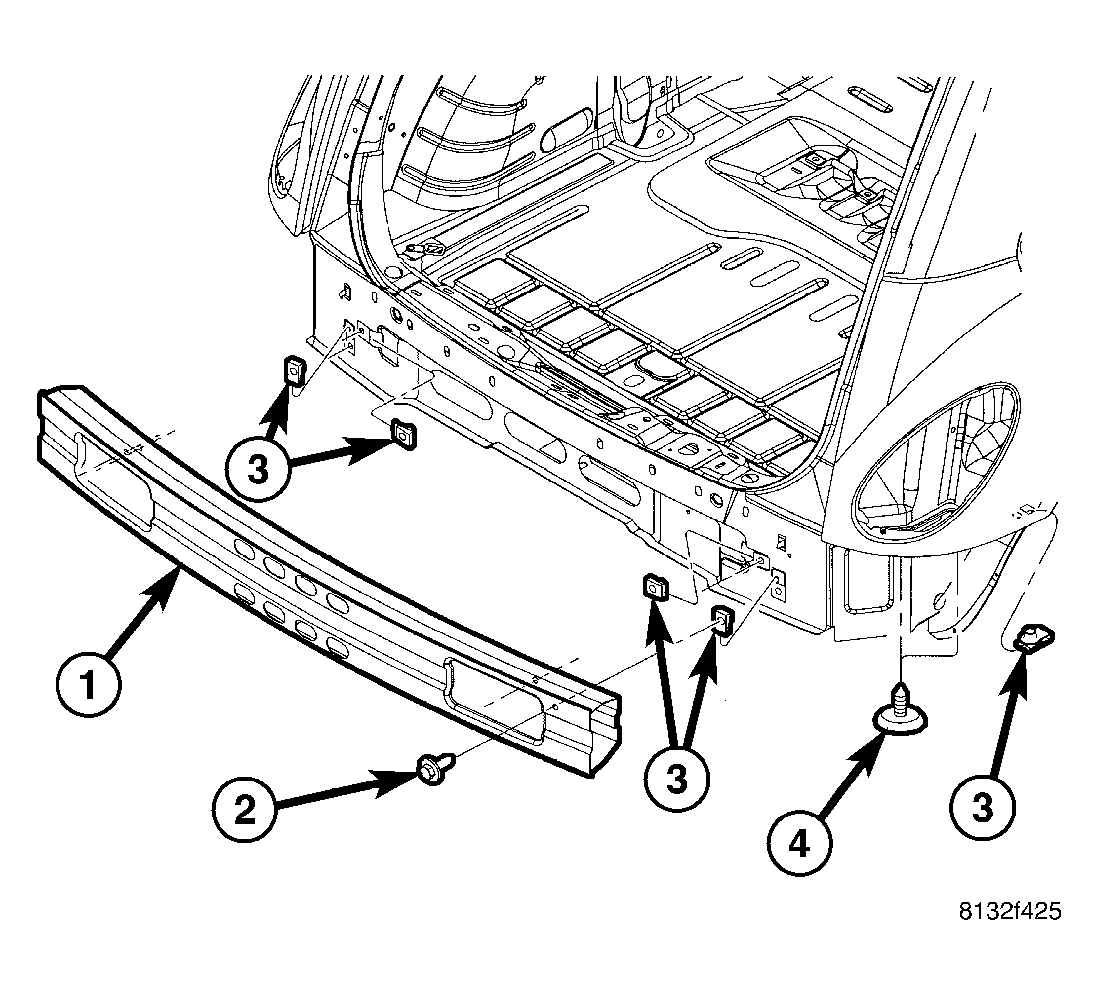

Fig 1: Rear Bumper Reinforcement

GC0021979

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR BUMPER REINFORCEMENT

2 - ATTACHING SCREW(S)

3 - U-NUT(S)

4 - REAR FASCIA FASTENER

Remove rear fascia (Refer to FRAME & BUMPERS/BUMPERS/REAR BUMPER - REMOVAL) .
Remove 4 bolts (2) attaching reinforcement (1) to rear closure panel.
Remove bumper reinforcement from vehicle.
