Rear Bumper Fascia: Removal

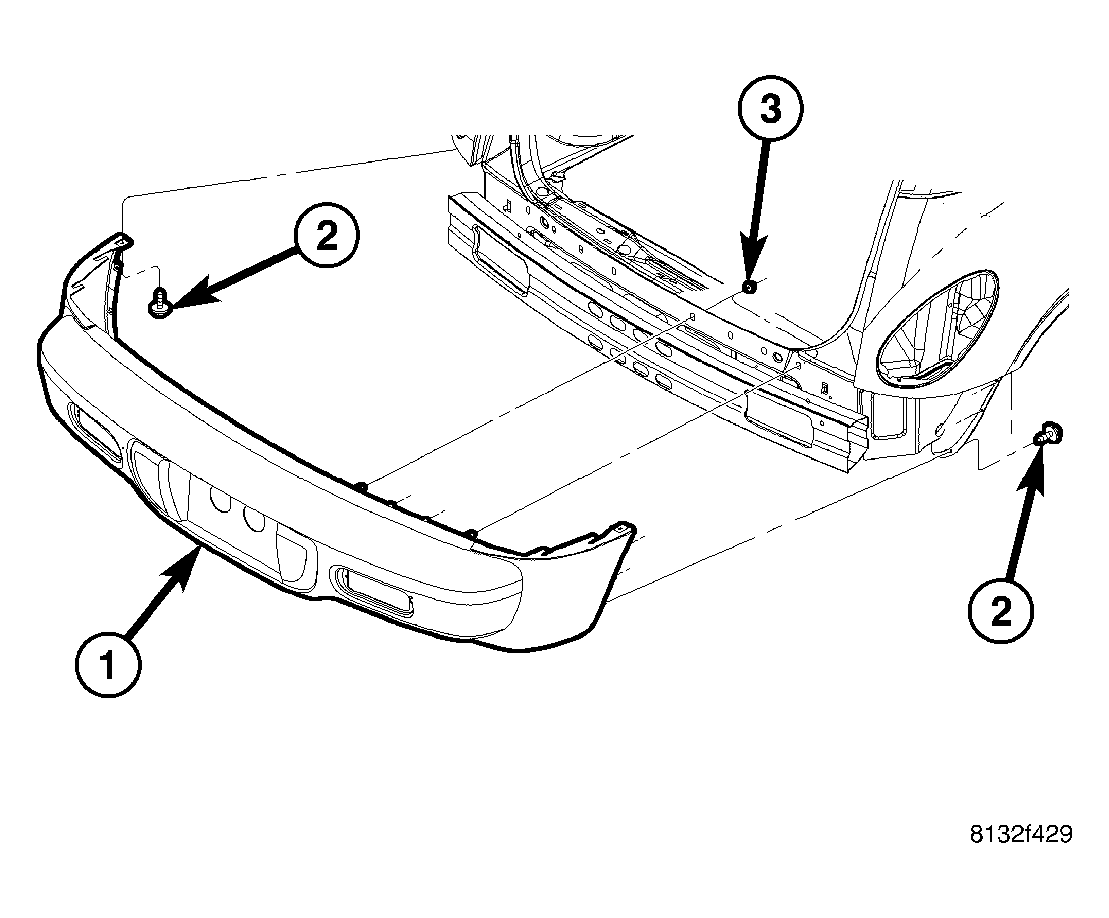

Fig 1: Rear Bumper Fascia
GC0021977Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR BUMPER FASCIA
2 - ATTACHING SCREW
3 - STUD PLATE TO REAR FASCIA NUT
  1. Open liftgate.
  2. Remove the rubber body plugs or mastic tape patches, if equipped.
  3. Remove nuts attaching fascia to lower floor closure.
    Fig 2: Rear Bumper Fascia Energy Foam
    GC0021976Courtesy of DAIMLERCHRYSLER CORP.
    1 - U-NUT(S)
    2 - REAR BUMPER FASCIA ENERGY FOAM
    3 - SPRING NUT(S)
    4 - REAR FASCIA TO CLOSURE STUD PLATE
    5 - REAR BUMPER FASCIA
  4. Raise vehicle on hoist.
  5. Disconnect license lamp.
  6. Remove splash shield from fascia in the wheel opening area (Refer to BODY/EXTERIOR/FRONT END SPLASH SHIELDS - REMOVAL) .
  7. Remove screws attaching fascia to lower quarter panels.
  8. Remove fascia from vehicle.
