Front Bumper Reinforcement: Removal

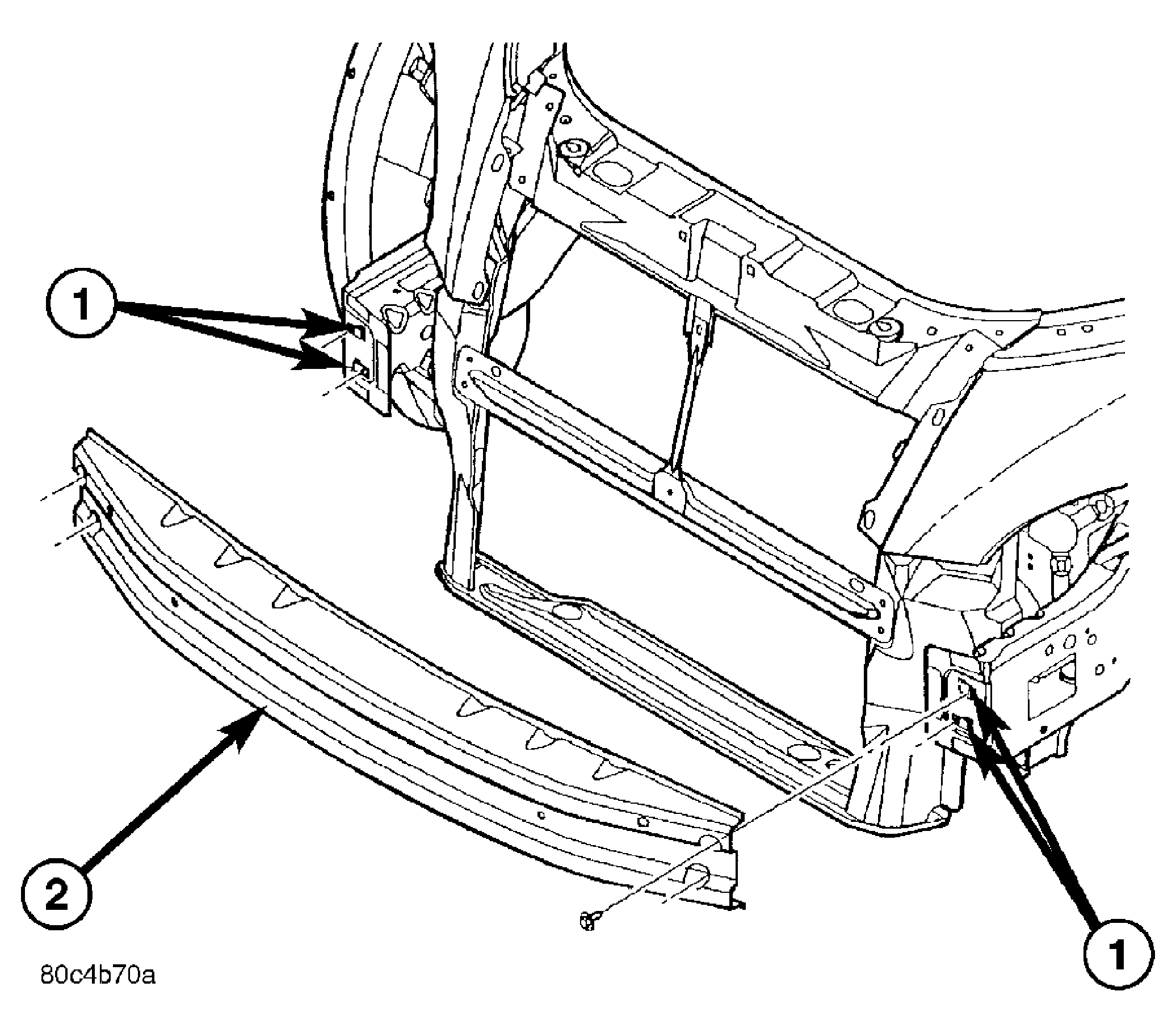

Fig 1: Front Bumper Reinforcement
GC0021970Courtesy of DAIMLERCHRYSLER CORP.
1 - U-NUT(S)
2 - FRONT BUMPER FASCIA REINFORCEMENT
  1. Remove grille (Refer to BODY/EXTERIOR/GRILLE - REMOVAL) .
  2. Remove front fascia (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL) .
  3. Remove bolts (1) attaching reinforcement to the rail assembly and remove reinforcement.
  4. Remove bumper reinforcement (2) from vehicle.
