Interior & Exterior (1 Of 2): Exterior: Grille-Lower: Removal

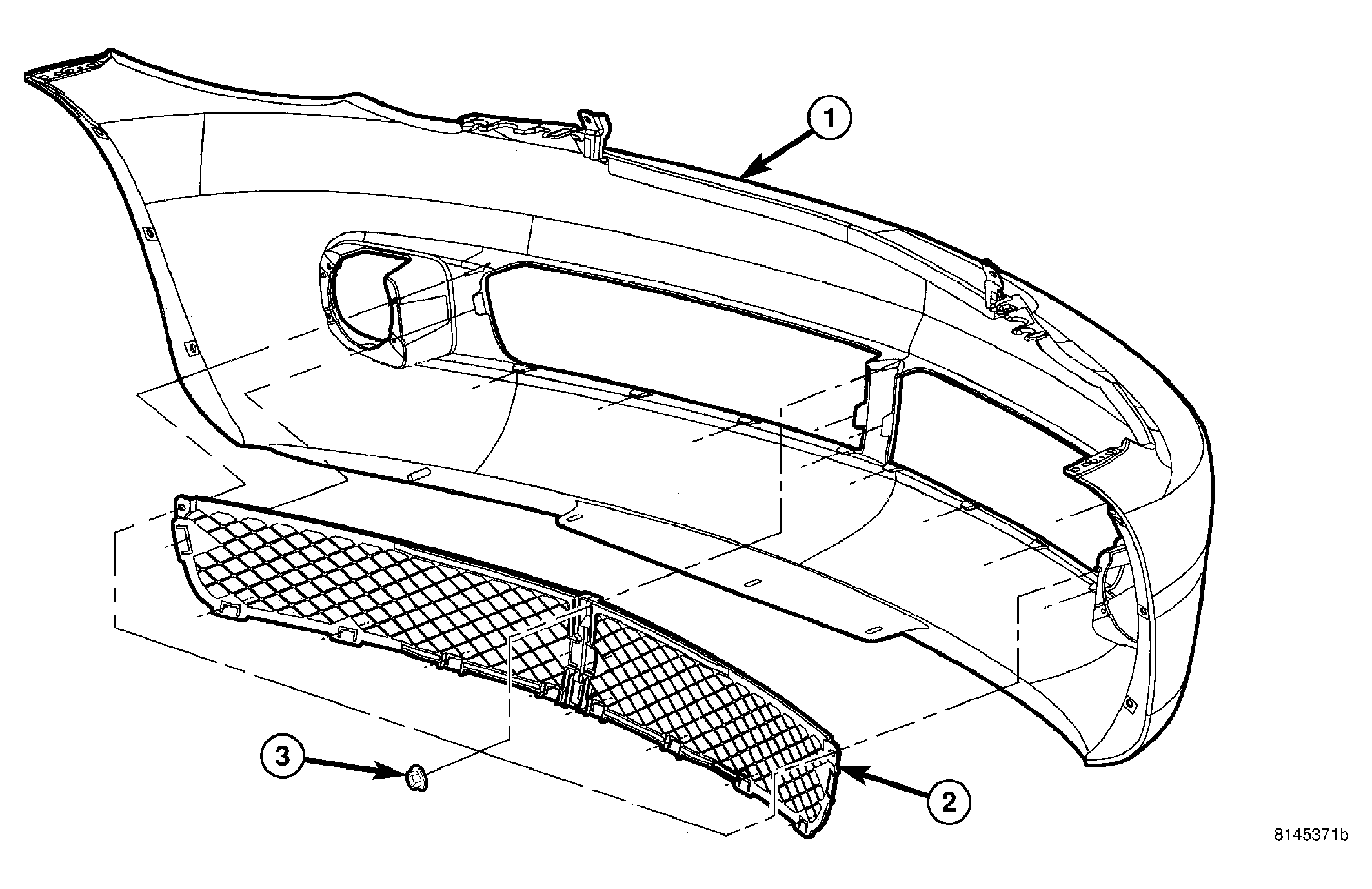

Fig 1: FRONT FASCIA - LOWER GRILLE - B

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the front fascia (1) and place it on a workbench. (Refer to FRAME & BUMPERS/BUMPERS/FASCIA-FRONT - REMOVAL) .
2. Remove the nuts (3) that secure the grille (2) to the front fascia and remove the grille.
3. If equipped and required, remove the chrome strips from the grille by using a small flat blade tool to release the retaining tabs.
