Cluster Bezel: Removal

  1. Open hood, disconnect and isolate the battery negative cable.
  2. Remove the steering opening cover two retaining screws and cover.
  3. Remove the knee blocker airbag (Refer to ELECTRICAL/RESTRAINTS/KNEE BLOCKER AIRBAG - REMOVAL) .
  4. Unsnap the left end cover and remove.
  5. Remove the two screws to the left lower instrument panel trim plate.
  6. Remove the instrument panel center bezel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - REMOVAL) .
  7. Remove the eight retaining screws to the cluster bezel. See Fig 1.
    Fig 1: CLUSTER BEZEL MOUNTING SCREW LOCATION
    GC0001063Courtesy of DAIMLERCHRYSLER CORP.
  8. Using a trim stick or equivalent, gently pry out on cluster bezel around edges and remove from instrument panel. See Fig 2.

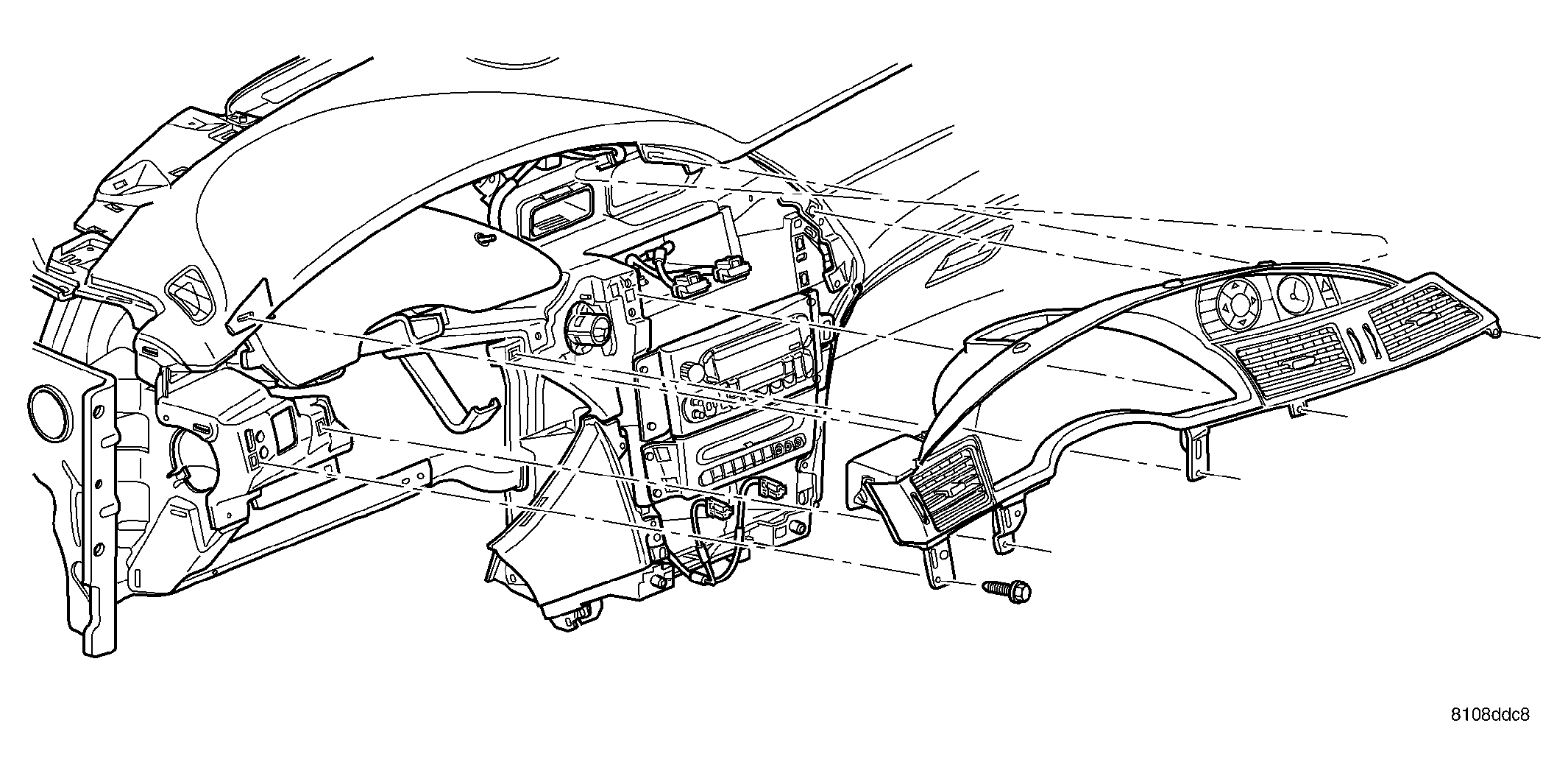

    Fig 2: CLUSTER BEZEL - REMOVE/INSTALL
    GC0001064Courtesy of DAIMLERCHRYSLER CORP.
  9. Disconnect the electrical connector to the instrument panel switch pod (EVIC, NAV, Clock, and Hazard Switch).
