Instrument Panel Center Bezel: Removal

Using a trim stick C-4755 or equivalent, disengage the locking tabs attaching instrument panel center bezel right and/or left side. See Fig 1.
Remove ignition switch bezel.
Remove the instrument panel center bezel(s) from the vehicle.

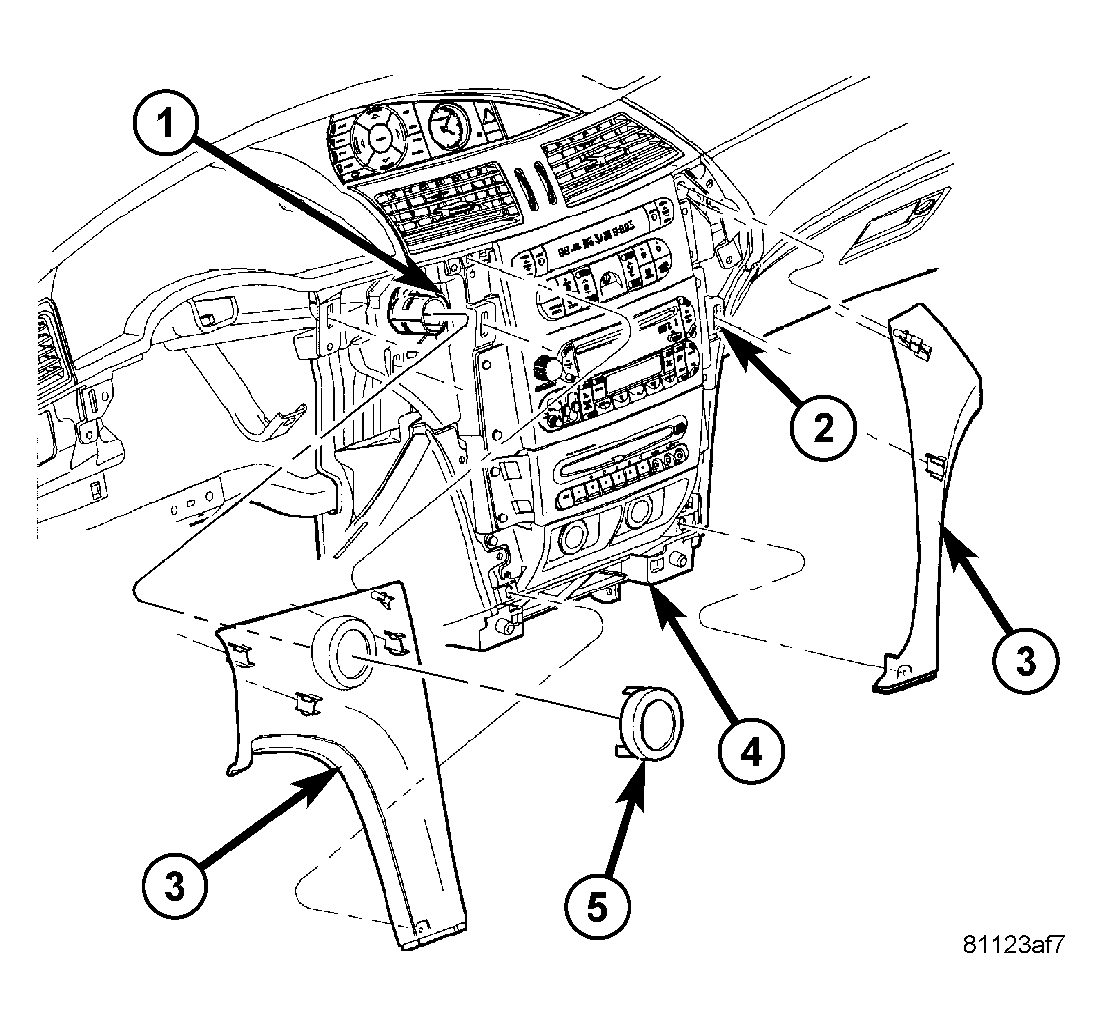

Fig 1: INSTRUMENT PANEL CENTER BEZEL

Courtesy of DAIMLERCHRYSLER CORP.

1 - IGNITION SWITCH

2 - CENTER STACK PANEL

3 - INSTRUMENT PANEL

4 - INSTRUMENT PANEL CENTER BEZEL LEFT AND RIGHT

5 - IGNITION SWITCH BEZEL
