Body - Interior & Exterior: Hood: Latch: Removal

1. Release hood latch and open hood.
2. Remove radiator closure. (Refer to BODY/EXTERIOR/CLOSURE PANEL - REMOVAL) .
3. Remove screws attaching hood latch to radiator crossmember. See Fig 1.
4. Disconnect release cable.
5. Remove hood latch from vehicle.

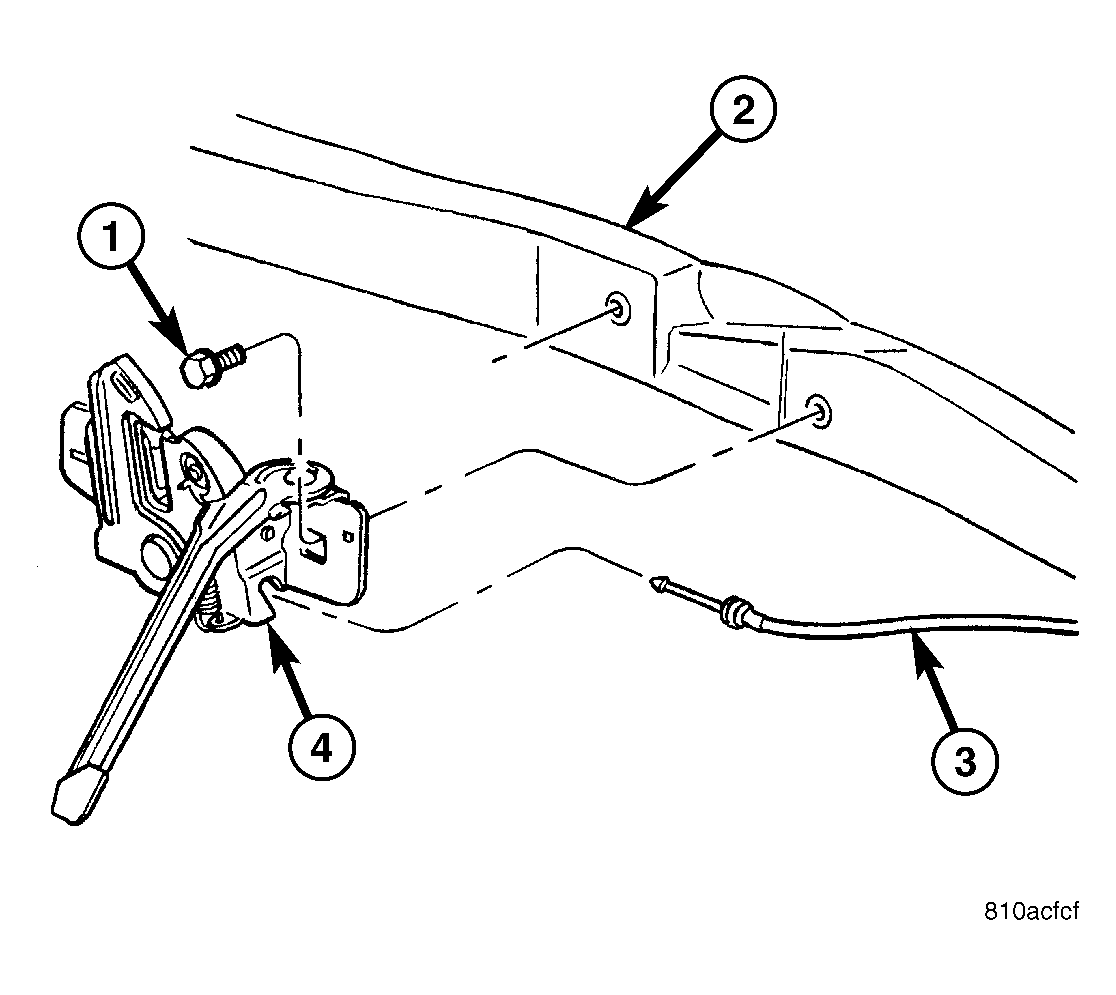

Fig 1: HOOD LATCH

Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING SCREW(S) AND WASHER(S)

2 - UPPER RADIATOR CROSSMEMBER

3 - REMOTE HOOD RELEASE CABLE

4 - HOOD LATCH
