Radiator Closure Panel: Removal

  1. Open hood.
  2. Remove four push pins attaching radiator closure panel to radiator crossmember.
  3. Remove one bolt on each side attaching to radiator crossmember. See Fig 1.
  4. Remove six screws attaching radiator closure to the upper grille.
  5. Remove radiator closure panel from vehicle.

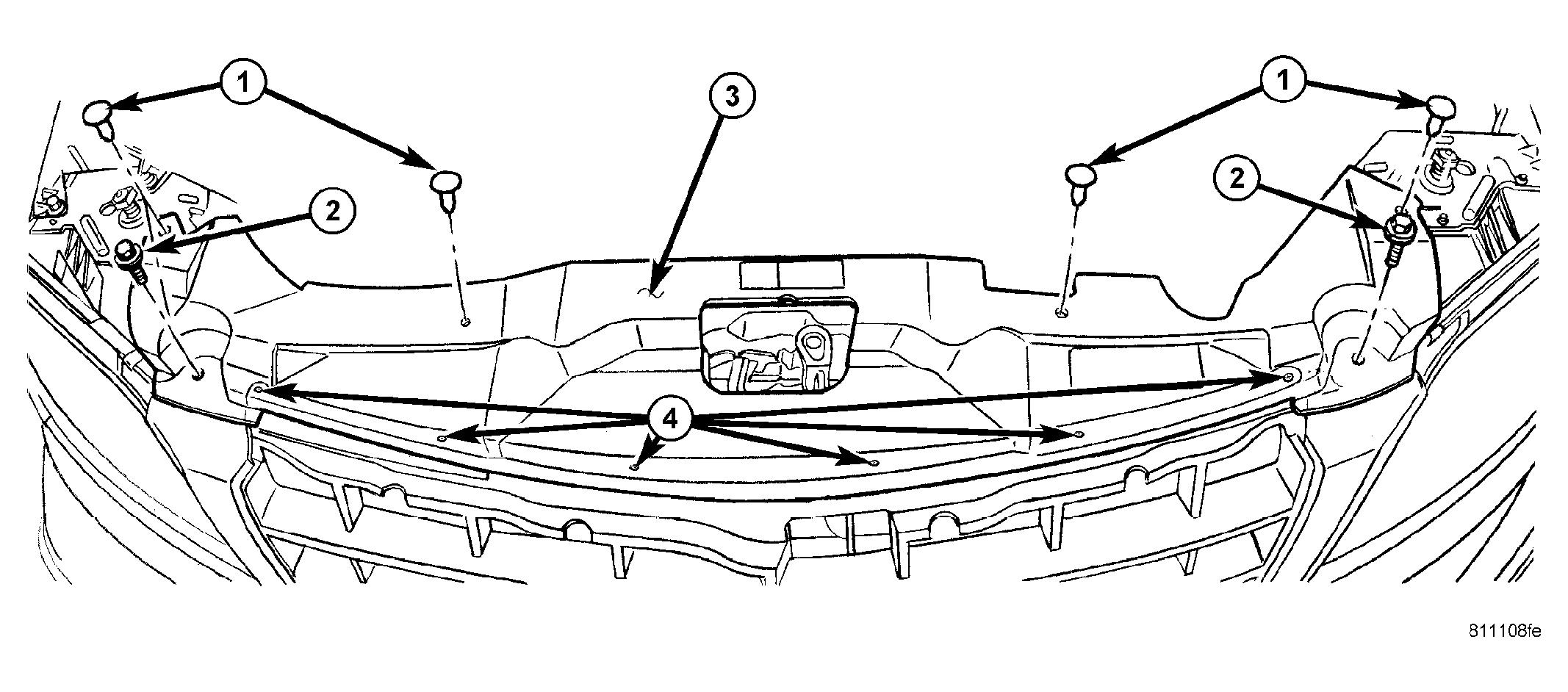

Fig 1: RADIATOR CLOSURE PANEL
GC0001045Courtesy of DAIMLERCHRYSLER CORP.
1 - PUSH PINS
2 - ATTACHING BOLTS INTO CROSSMEMBER
3 - RADIATOR CLOSURE PANEL
4 - ATTACHING SCREWS INTO UPPER GRILLE
