Instrument Panel Switch Pod: Removal

Remove the cluster bezel (Refer to BODY/INSTRUMENT PANEL/CLUSTER BEZEL - REMOVAL) .
Remove the three retaining screws holding the switch pod to the cluster bezel. See Fig 1.

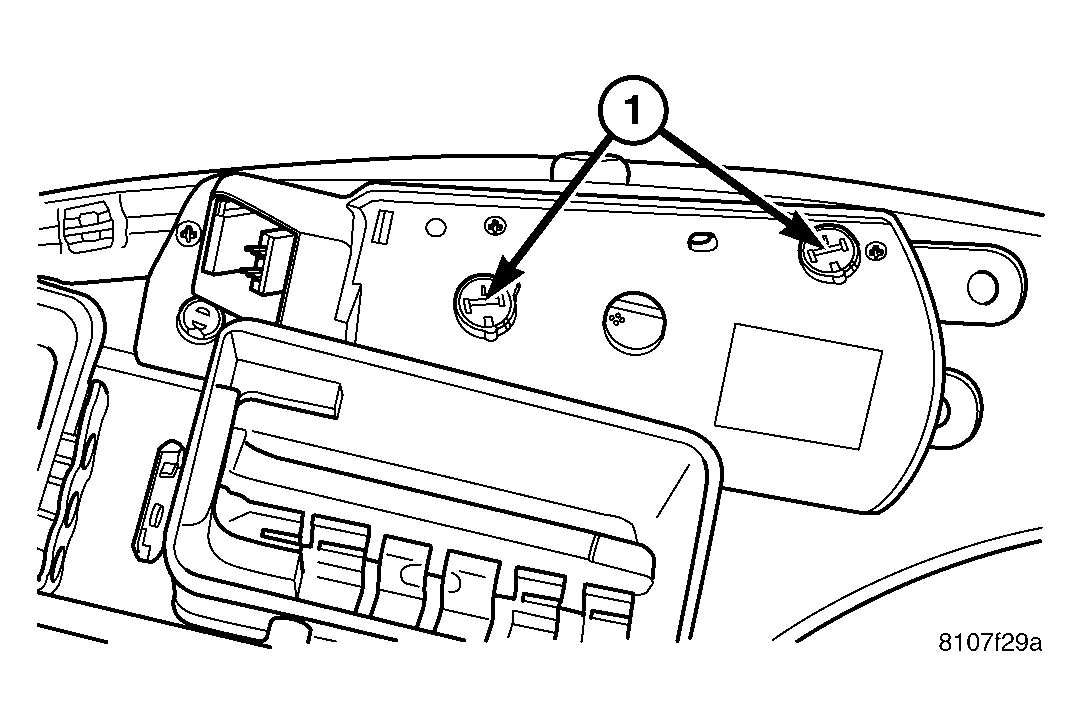

Fig 1: Instrument Panel Switch Pod - Remove/Install

GC0000164

Courtesy of DAIMLERCHRYSLER CORP.

1 - INSTRUMENT PANEL SWITCH POD ILLUMINATION
