Instrument Cluster: Removal

  1. Remove cluster bezel (Refer to BODY/INSTRUMENT PANEL/CLUSTER BEZEL - REMOVAL) .
  2. Remove four nuts to the column and lower to the seat.
  3. Remove the two electrical connectors from the bottom of the cluster accessed from underneath instrument panel. See Fig 1.

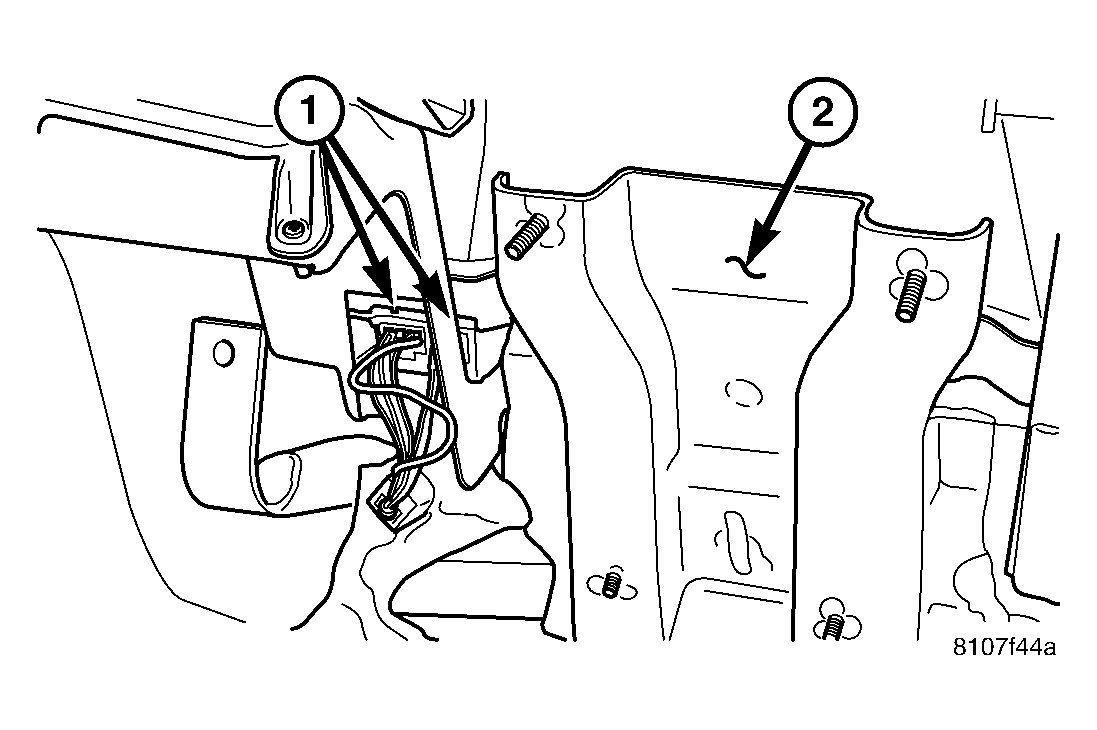

    Fig 1: Cluster Connectors
    GC0002408Courtesy of DAIMLERCHRYSLER CORP.
    1 - CLUSTER ELECTRICAL CONNECTORS
    2 - BRAKE PEDAL SUPPORT BRACKET
  4. Remove the four retaining screws to the cluster. See Fig 2.

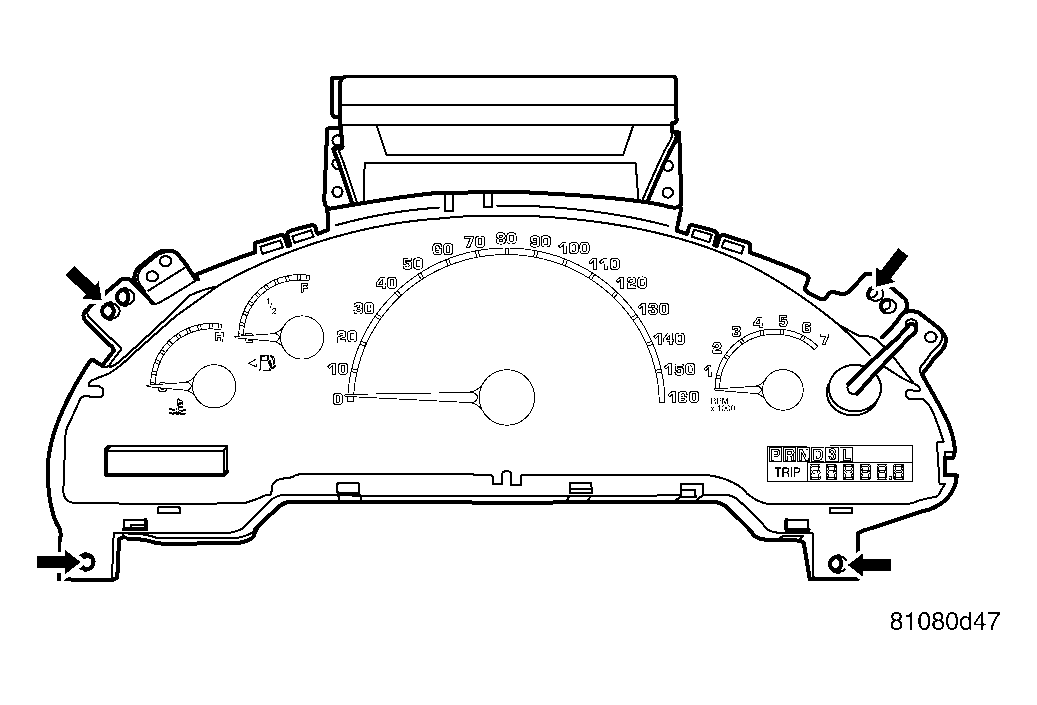

    Fig 2: Cluster Screw Mounting Location
    GC0002409Courtesy of DAIMLERCHRYSLER CORP.
  5. Pull cluster straight out of the instrument panel opening. See Fig 3. Be careful not to scratch the cluster face.

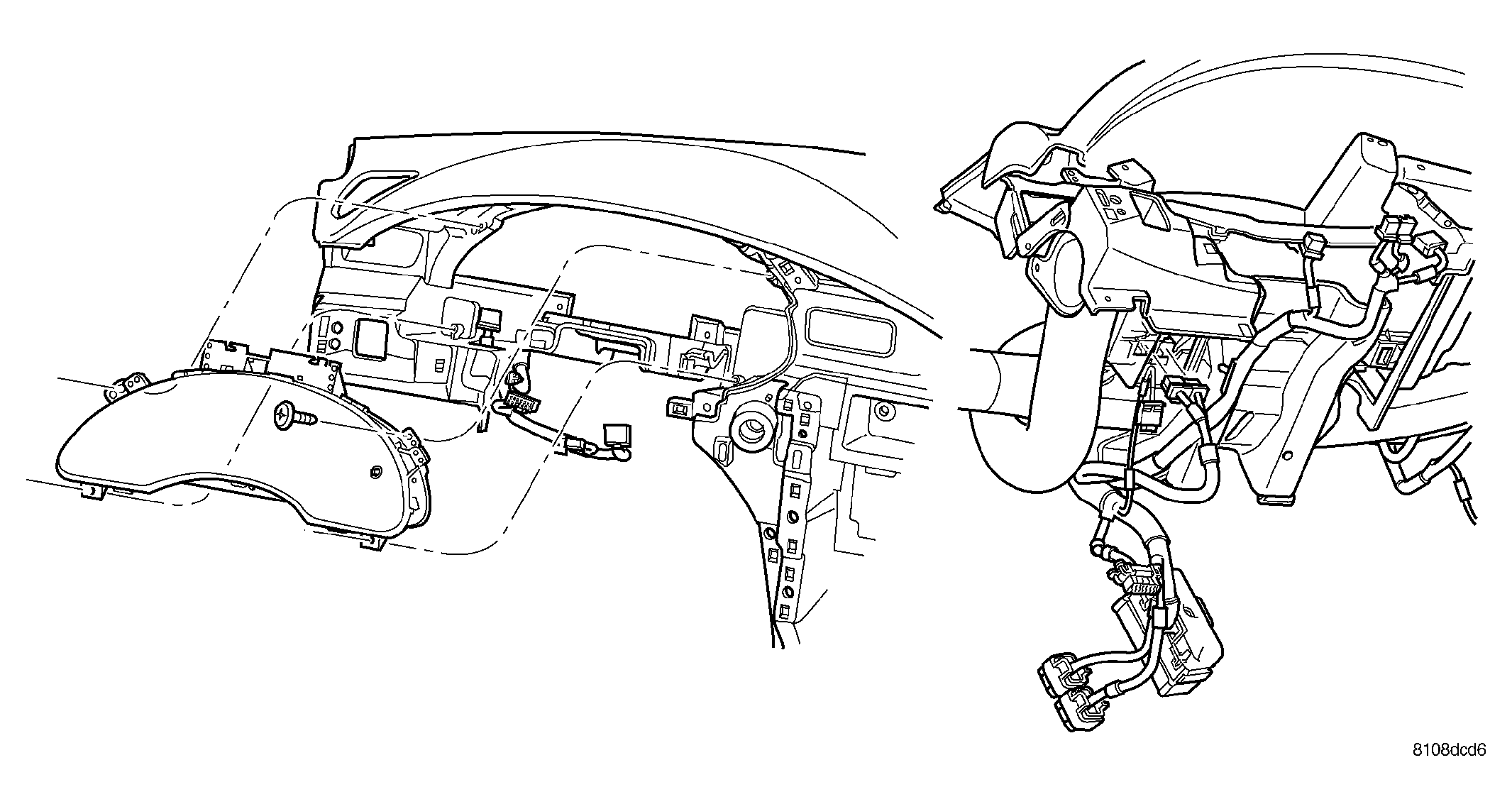

    Fig 3: Instrument Cluster - Remove/Install
    GC0002407Courtesy of DAIMLERCHRYSLER CORP.
