Module Assembly: Removal

Move glass panel to the fully closed position.
Disconnect battery negative cable.
Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
Disconnect the four drain tubes from sunroof housing. (Refer to BODY/SUNROOF/DRAIN TUBE - REMOVAL) .
Disconnect sunroof wire connector. See Fig 1
Loosen fasteners attaching sunroof assembly. See Fig 2.
With the aid of a helper, support the sunroof and remove the fasteners attaching sunroof assembly to roof panel.
Remove sunroof from vehicle.

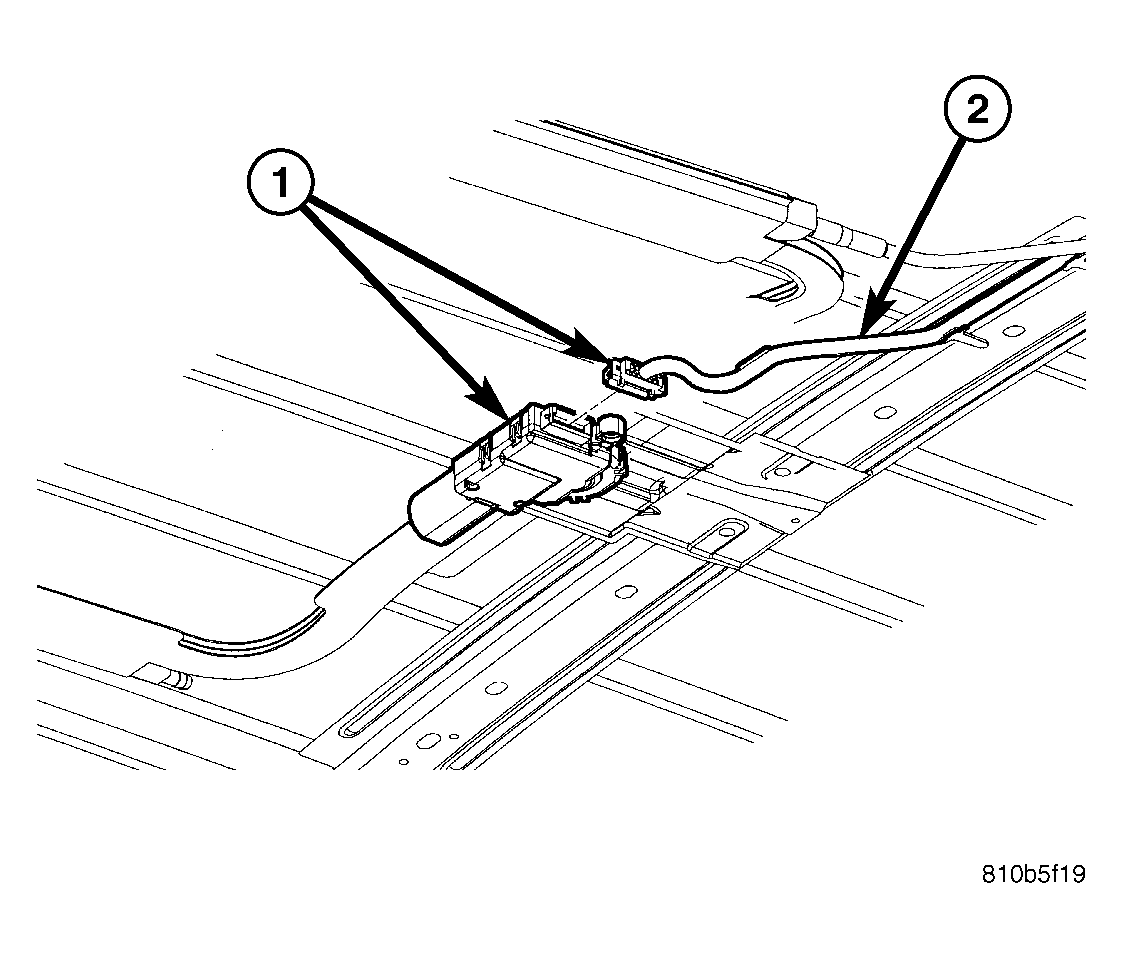

Fig 1: SUNROOF WIRE CONNECTOR

Courtesy of DAIMLERCHRYSLER CORP.

1 - WIRE CONNECTOR TO SUNROOF MODULE

2 - BODY WIRE HARNESS

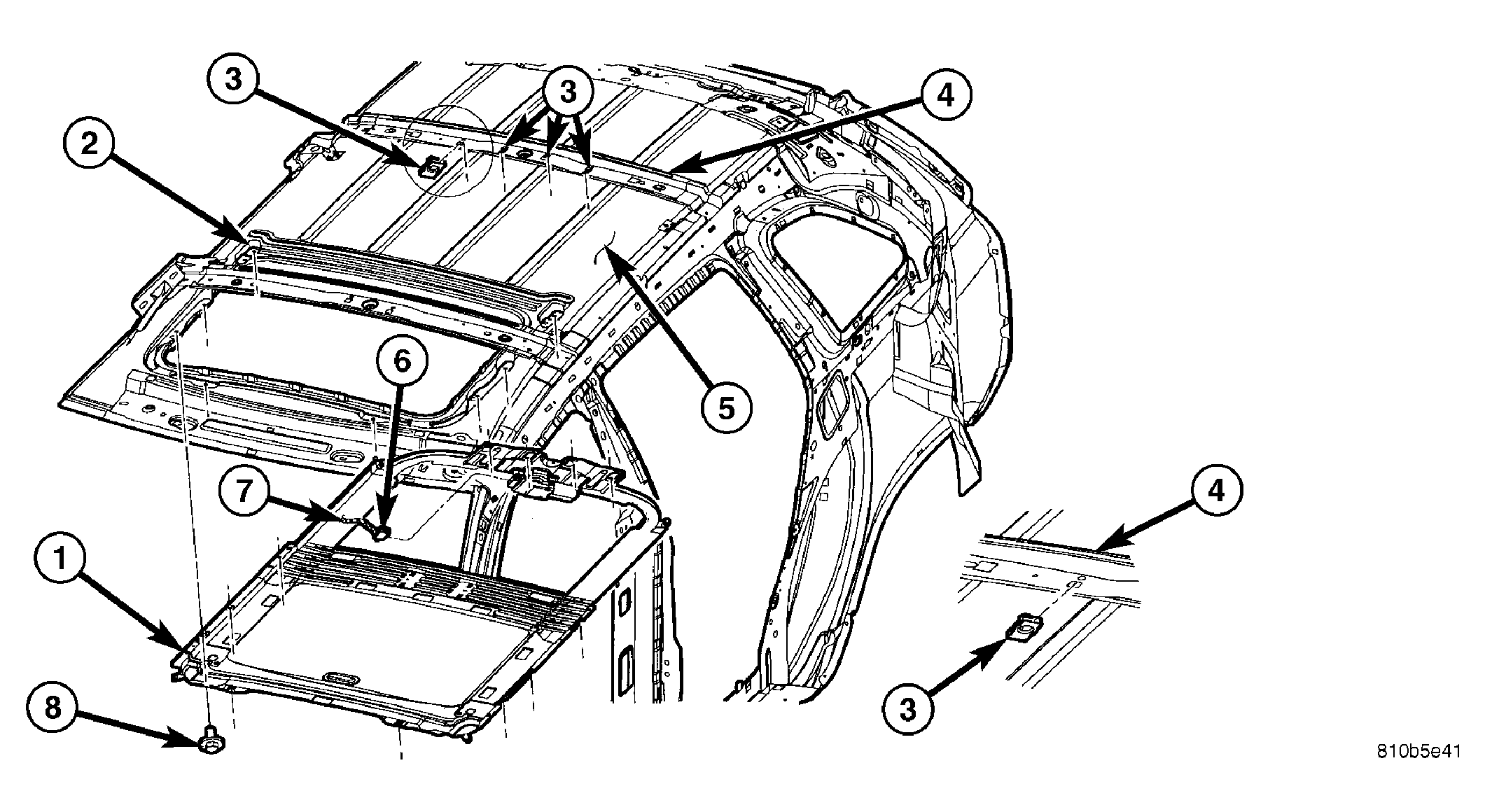

Fig 2: SUNROOF MODULE

Courtesy of DAIMLERCHRYSLER CORP.

1 - SUNROOF ASSEMBLY

2 - SUNROOF MODULE IN POSITION

3 - SUNROOF MODULE TO ROOF U-NUTS

4 - ROOF BOW #2

5 - ROOF PANEL

6 - SUNROOF WIRE CONNECTOR

7 - BODY WIRE HARNESS

8 - SUNROOF MODULE TO ROOF ATTACHING SCREW(S) AND WASHER(S)
