Rear Housing Hose

  1. Move glass panel to the fully closed position.
  2. Disconnect negative battery cable.
  3. Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
  4. Remove third seat or seats from vehicle.
  5. Remove second seat belt lower anchor.
  6. Remove third seat lower anchor.
  7. Remove quarter trim bolster.
  8. Remove trim panel screws.
  9. Remove quarter trim panel
  10. Disconnect the drain hose from the sunroof housing.
  11. Drain any liquid from hose connection, if necessary.
  12. Repair or remove tube, as necessary. See Fig 1.

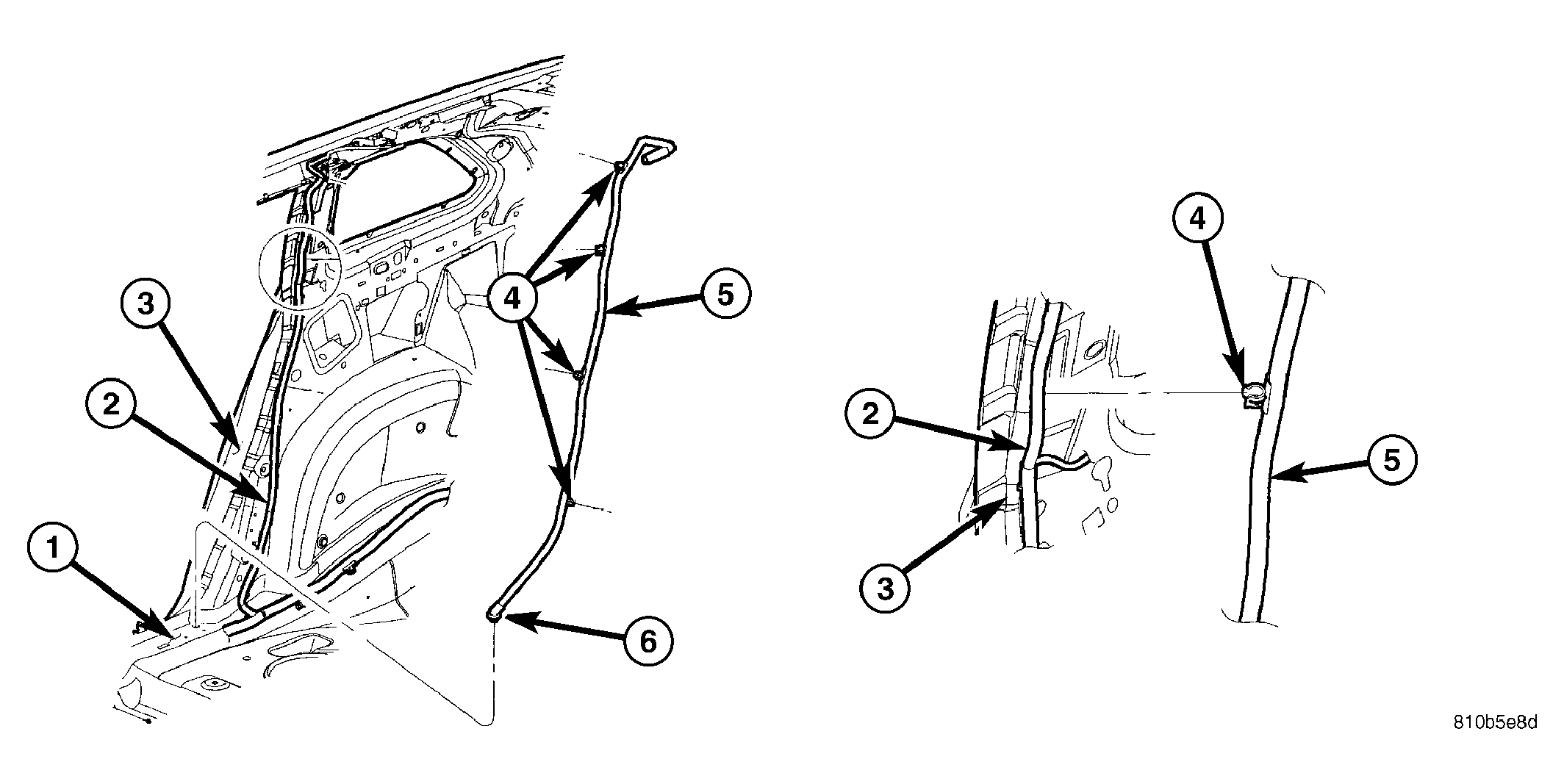

Fig 1: REAR RIGHT/LEFT DRAIN TUBE
GC0001224Courtesy of DAIMLERCHRYSLER CORP.
1 - BODY SIDE SILL PANEL
2 - BODY WIRE HARNESS
3 - BODY SIDE INNER PANEL
4 - DRAIN TUBE TO WIRE CLIP(S)
5 - REAR RIGHT DRAIN TUBE
6 - GROMMET
