Front Hoses

  1. Move glass panel to the fully closed position.
  2. Disconnect negative battery cable.
  3. Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
  4. Disconnect the drain hose from the sunroof housing. See Fig 1.
  5. Drain any liquid from hose connection.
  6. Repair or remove tube, as necessary. See Fig 2 or Fig 3.

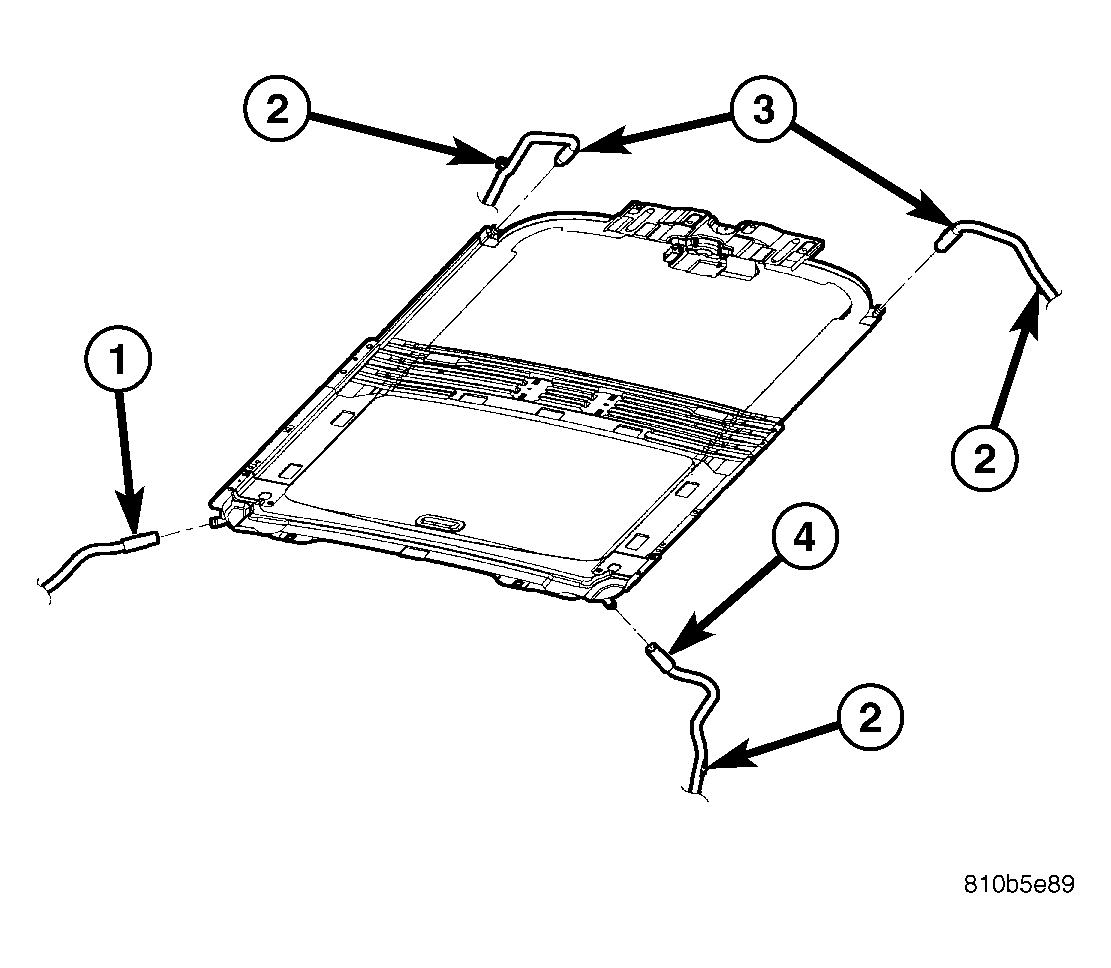

Fig 1: DRAIN TUBES CONNECTION AT SUNROOF MODULE
GC0001223Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT LEFT DRAIN TUBE
2 - DRAIN TUBES TO WIRE CLIPS
3 - REAR DRAIN TUBES
4 - FRONT RIGHT DRAIN TUBE

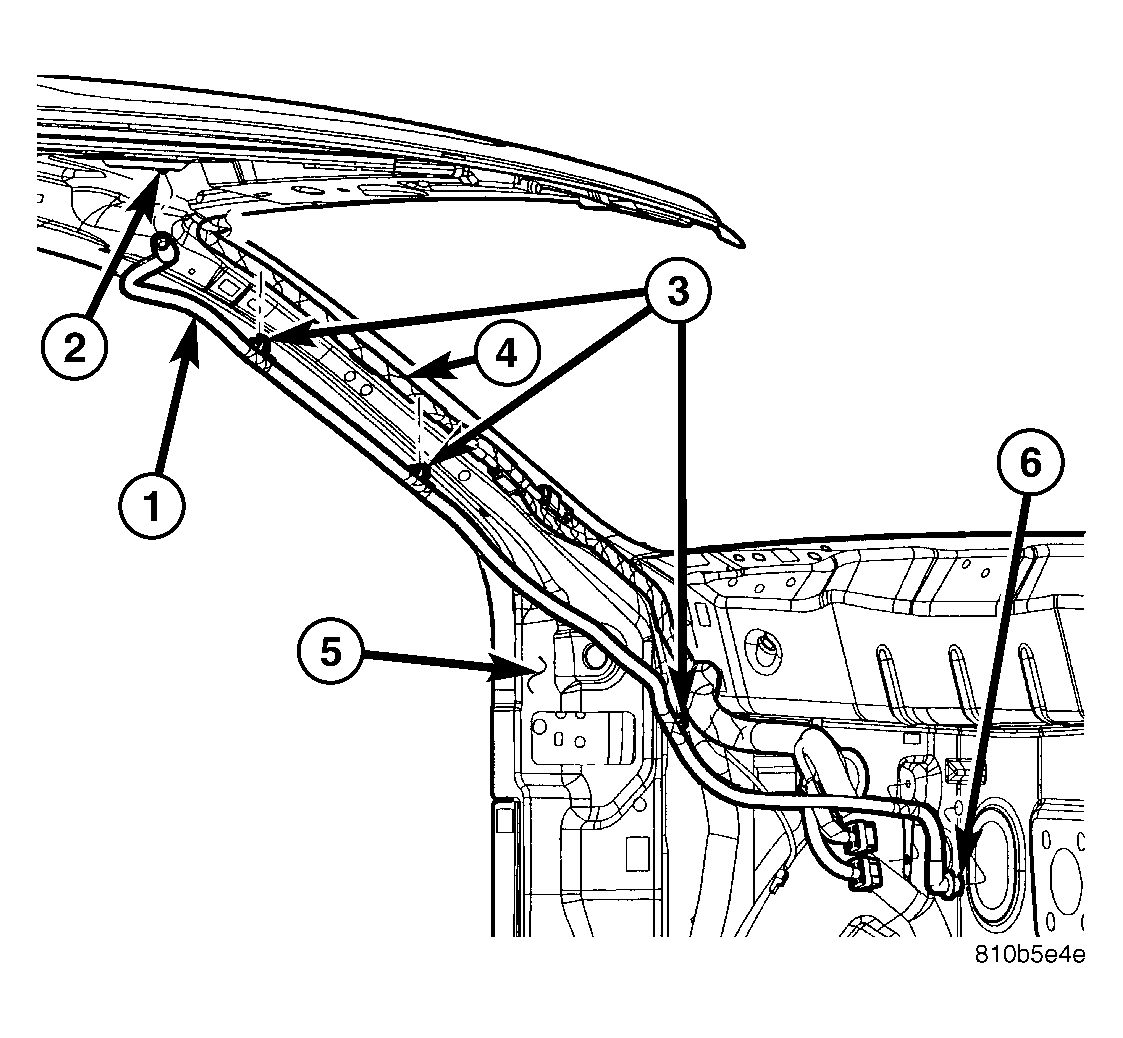

Fig 2: FRONT LEFT DRAIN TUBE
GC0001221Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT LEFT DRAIN TUBE
2 - SUNROOF FRAME DRAIN NIPPLE
3 - DRAIN TUBE TO WIRE CLIP
4 - BODY HARNESS
5 - BODY SIDE INNER PANEL
6 - GROMMET

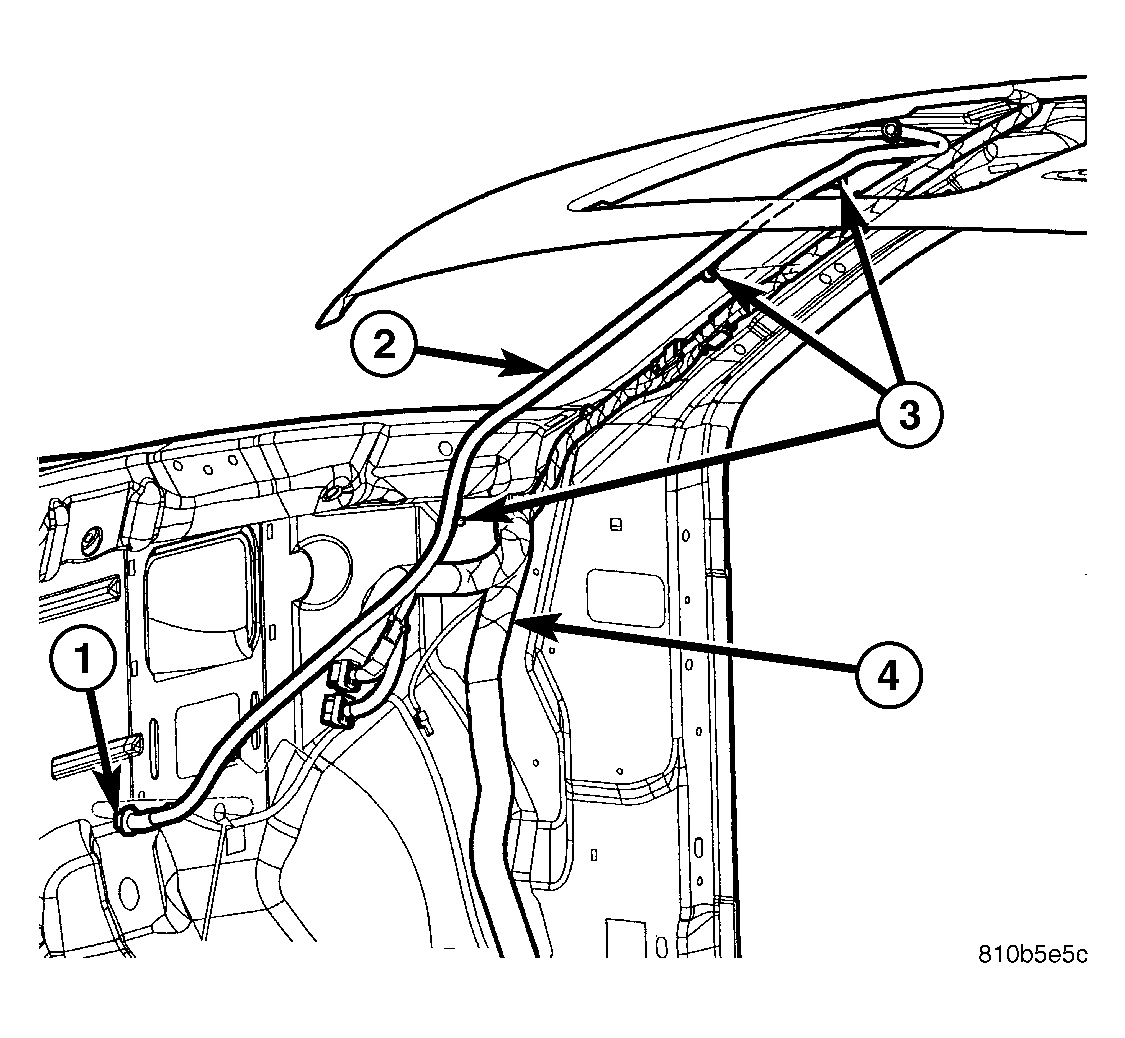

Fig 3: FRONT RIGHT DRAIN TUBE
GC0001222Courtesy of DAIMLERCHRYSLER CORP.
1 - GROMMET
2 - FRONT RIGHT DRAIN TUBE
3 - DRAIN TUBE TO WIRE CLIP
4 - BODY WIRE HARNESS
