Quarter Window: Removal
- Open liftgate
- Remove upper quarter panel trim (Refer to BODY/INTERIOR/C-PILLAR TRIM - REMOVAL) .
- Remove nuts and washers from quarter window glass assembly. See Fig 1.WARNING: WEAR EYE AND HAND PROTECTION WHEN HANDLING SAFETY GLASS. PERSONAL INJURY CAN RESULT.CAUTION: Do not damage body or trim finish when cutting out glass or applying fence primer.
- Unplug antenna wire (right side only), if equipped.
- Remove the quarter window glass from the vehicle by pushing on glass from inside of vehicle.

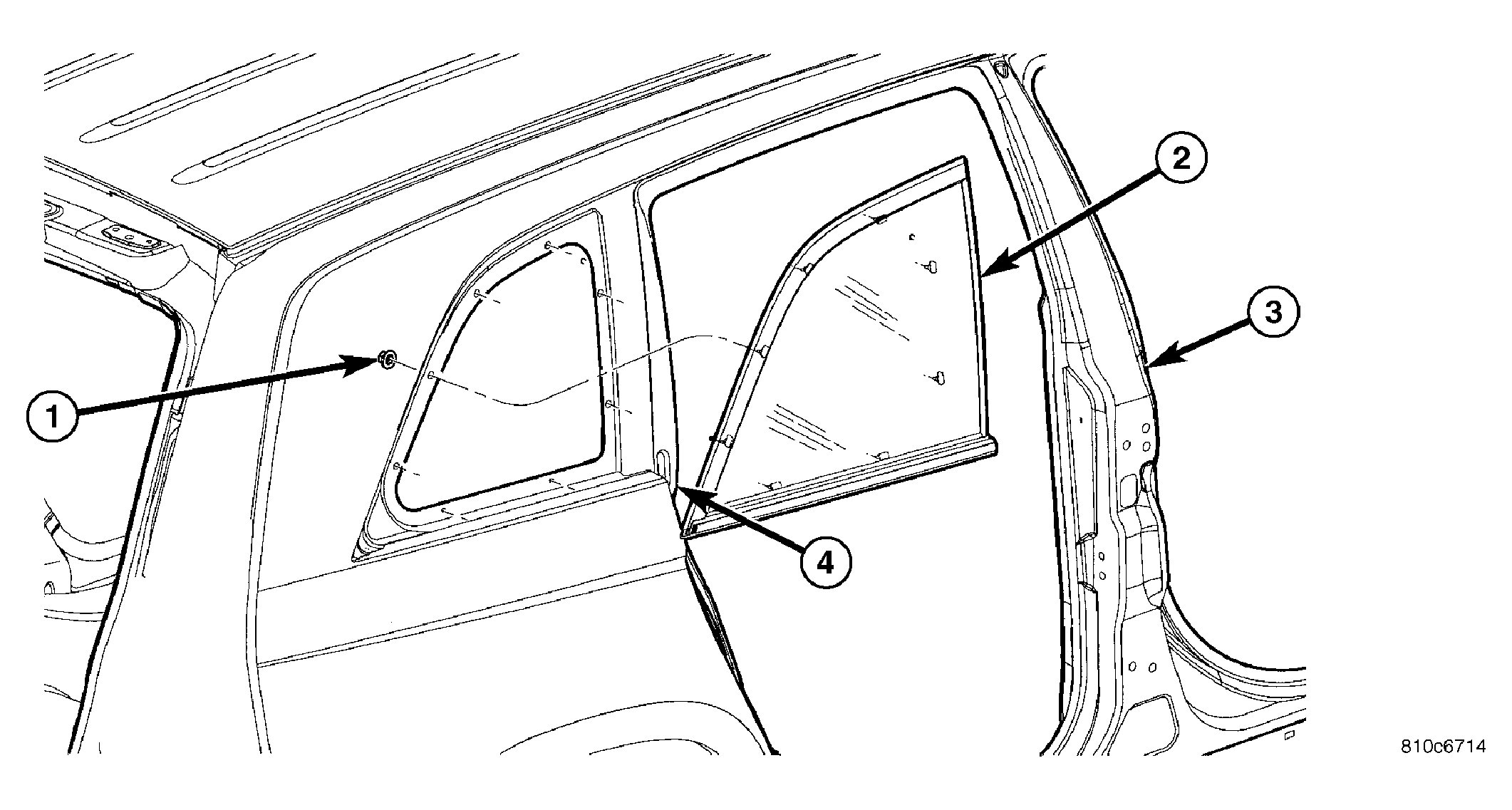

| 1 - NUT(S) AND WASHER(S) |
| 2 - QUARTER WINDOW GLASS |
| 3 - BODY ASSEMBLY |
| 4 - C-PILLAR |
