Third Row Seat: Removal

Open liftgate.
Remove rear floor stowage bin. (Refer to BODY/INTERIOR/REAR FLOOR STOWAGE BIN - REMOVAL) .
Remove third row seat rear two attaching bolts. See Fig 1.
Remove third row seat front covers. See Fig 2.
Remove the third row seat front two attaching bolts.
Remove seat from vehicle.

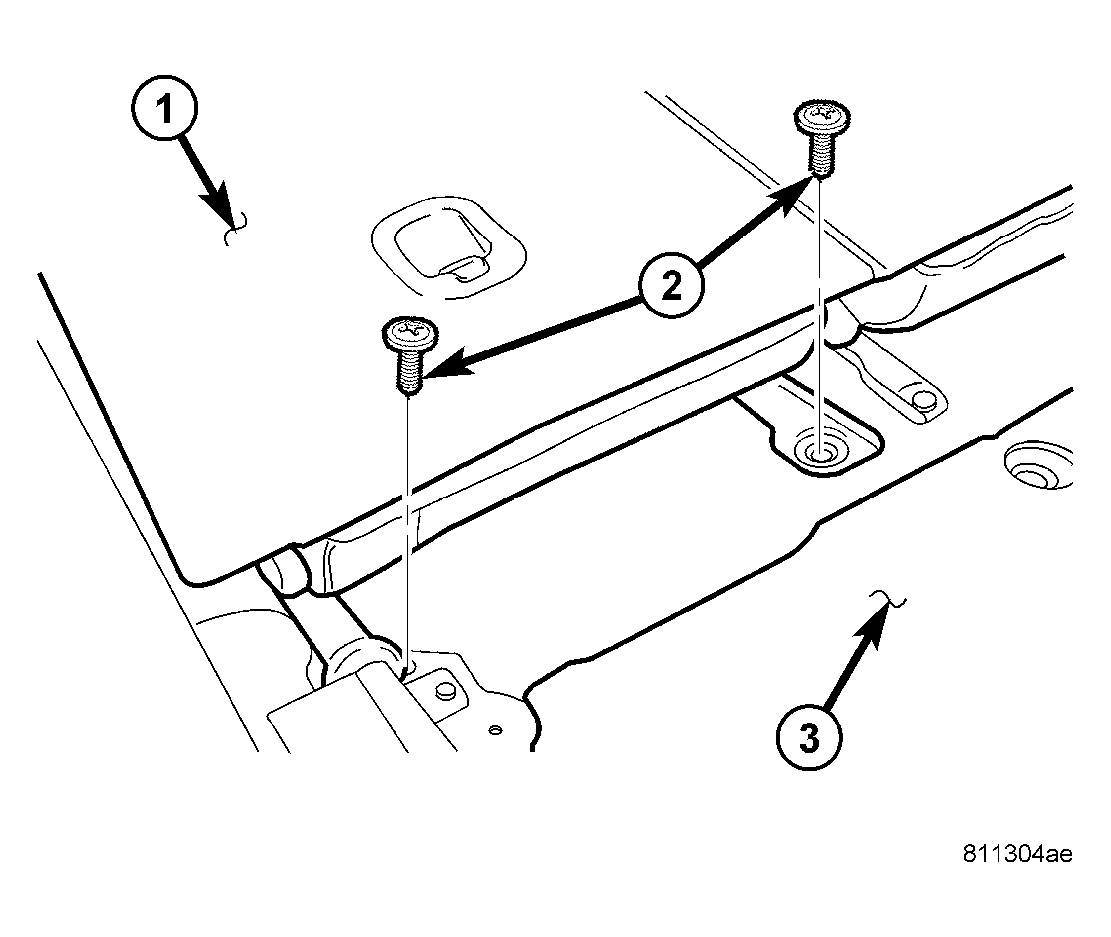

Fig 1: THIRD ROW SEAT - REAR SCREWS

Courtesy of DAIMLERCHRYSLER CORP.

1 - THIRD ROW SEAT BACK

2 - REAR ATTACHING BOLTS

3 - REAR FLOOR STOWAGE BIN

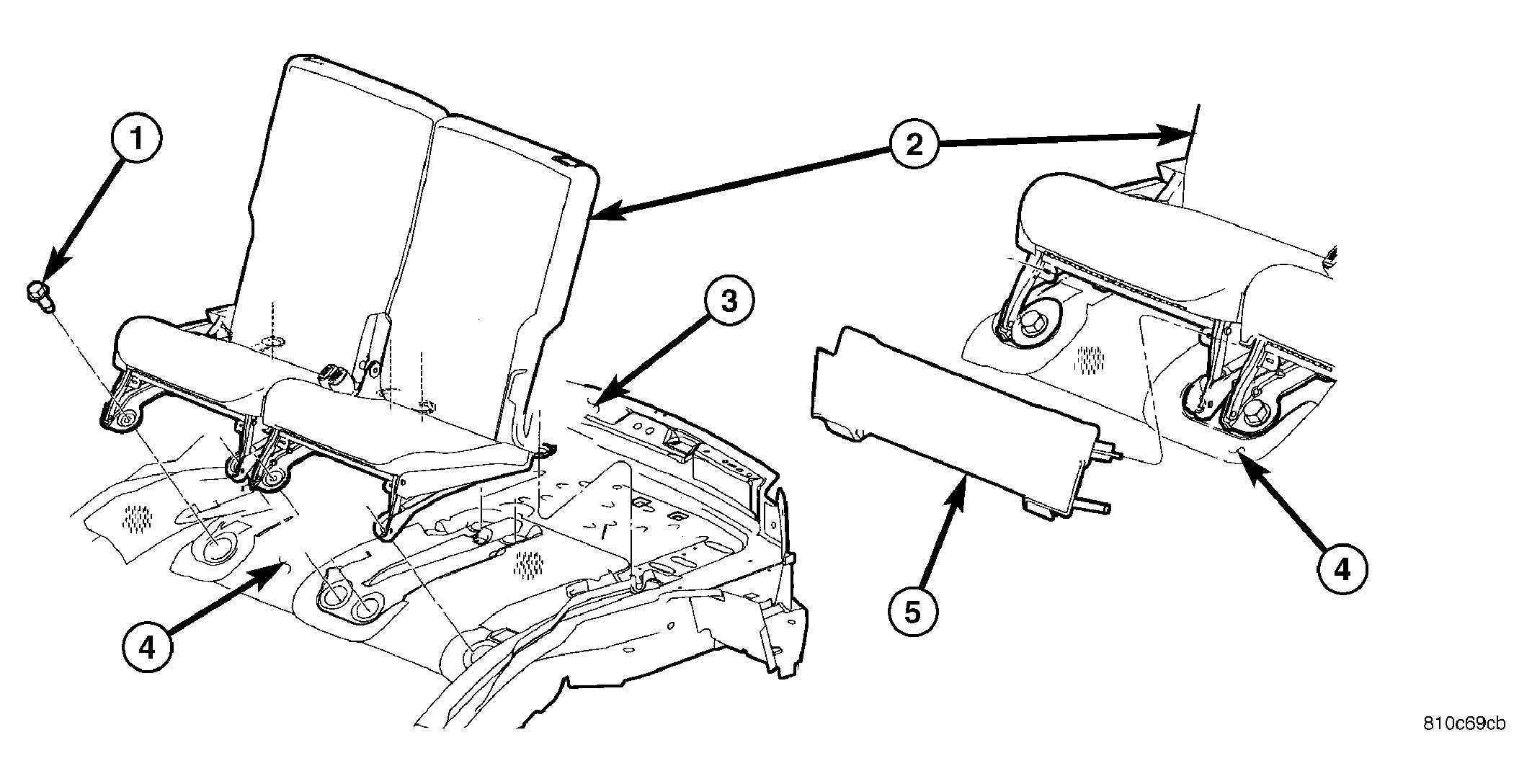

Fig 2: THIRD ROW SEATS

Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING WASHERS AND BOLTS

2 - THIRD ROW BUCKET SEATS

3 - FLOOR PAN

4 - CARPETING

5 - THIRD ROW SEAT FRONT COVER
