Front Seat Outer Trim Ring Panel: Removal

1. Remove front seat inner panel. (Refer to BODY/SEATS/FRONT SEAT INNER PANEL - REMOVAL) .
2. Remove front seat outer trim ring panel four attaching screws, if equipped. See Fig 1.
3. Remove outer trim ring panel from rear of seat.

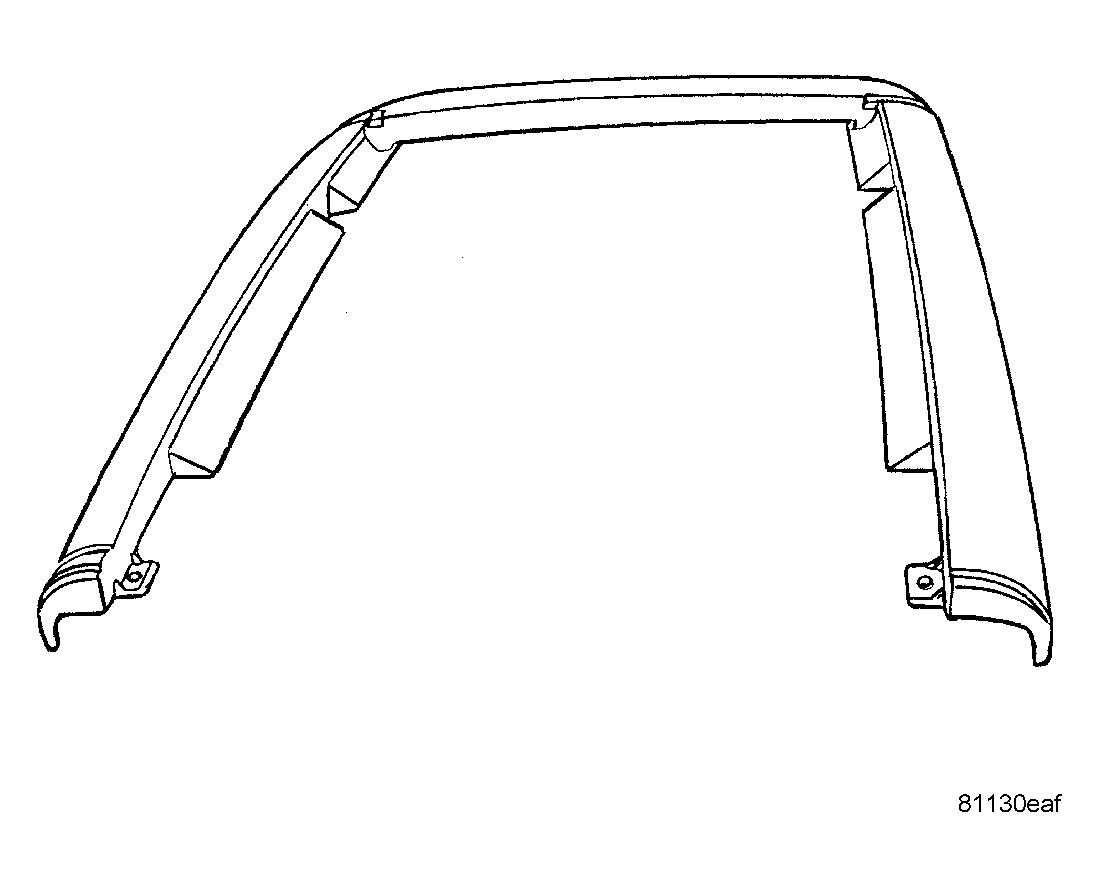

Fig 1: FRONT SEAT OUTER TRIM RING PANEL

Courtesy of DAIMLERCHRYSLER CORP.
