Rear Door: Latch: Removal
- Remove door trim panel. (Refer to BODY/DOORS - REAR/TRIM PANEL - REMOVAL) .
- Remove watershield. (Refer to BODY/DOORS - REAR/WATERSHIELD - REMOVAL) .
- Raise door glass.

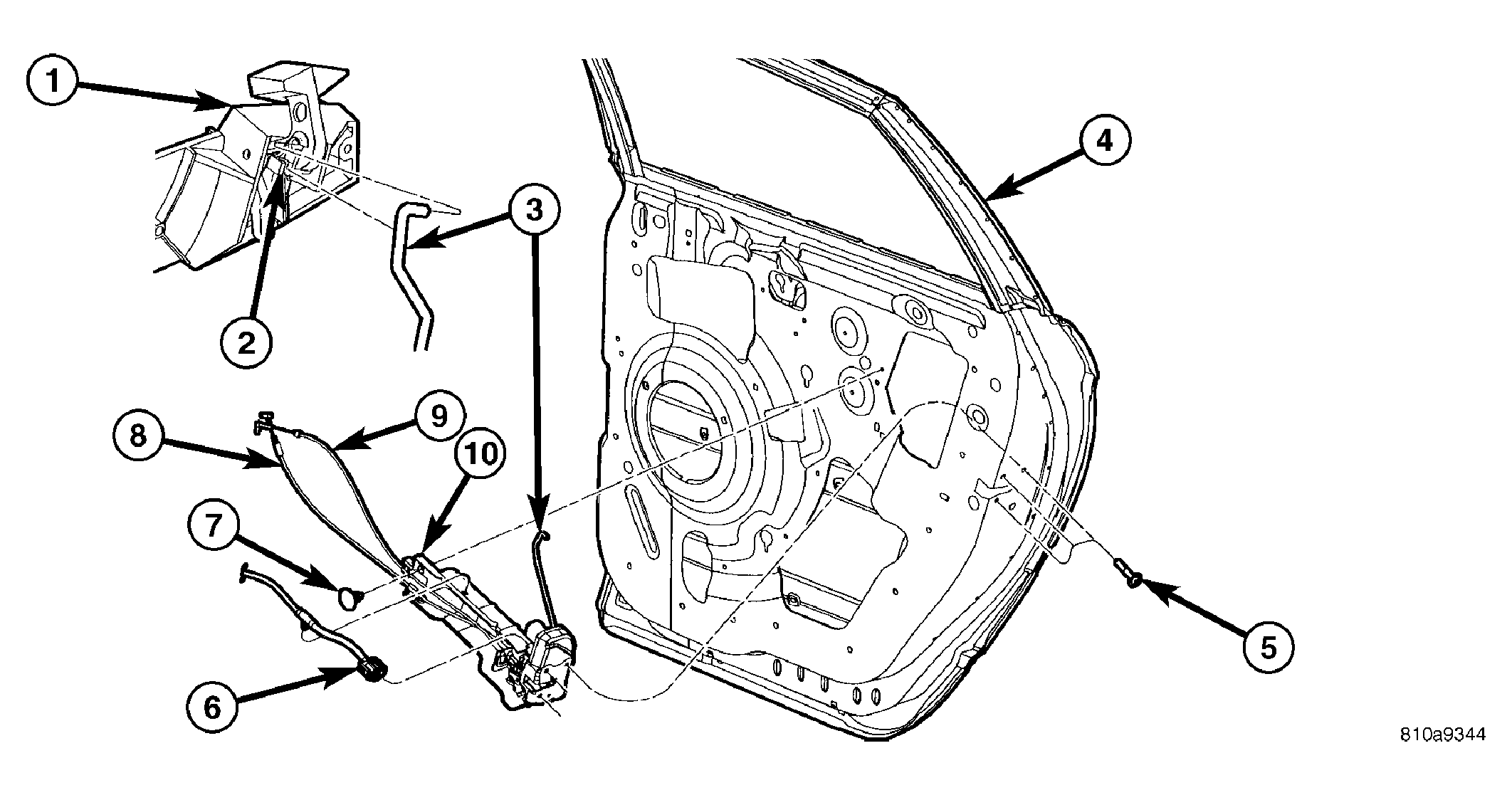

- Disconnect clips holding lock and latch rods to outside door handle. See Fig 1.
- Disengage wire connector from power door lock motor, if equipped.
- Remove screws attaching latch to door end frame.
- Remove door latch from door.
| 1 - OUTSIDE HANDLE BRACKET ASSEMBLY |
| 2 - LINKAGE ATTACHING CLIP |
| 3 - LATCH TO OUTSIDE HANDLE |
| 4 - DOOR ASSEMBLY |
| 5 - LATCH ATTACHING SCREW(S) |
| 6 - DOOR WIRING HARNESS |
| 7 - LATCH COVER TO INNER PANEL RETAINER |
| 8 - REMOTE LOCK ACTUATOR CABLE |
| 9 - RELEASE HANDLE ACTUATOR CABLE |
| 10 - POWER LOCK LATCH ASSEMBLY |
